Quick Details
-
Production Capacity:
-
15-20min/1m2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Team-D
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2010*850*1180 mm
-
Weight:
-
220 kg
-
Product name:
-
Horizontal wire saw cutting machine
-
Model:
-
TDSJ-B4
-
Application:
-
Cutting reinforced concrete
-
Function:
-
large area concrete Cutting
-
wheels number:
-
14pcs
-
wire length:
-
15m
-
Certification:
-
CE,TUV
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
25KW
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
15-20min/1m2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Team-D
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2010*850*1180 mm
-
Weight:
-
220 kg
-
Product name:
-
Horizontal wire saw cutting machine
-
Model:
-
TDSJ-B4
-
Application:
-
Cutting reinforced concrete
-
Function:
-
large area concrete Cutting
-
wheels number:
-
14pcs
-
wire length:
-
15m
-
Certification:
-
CE,TUV

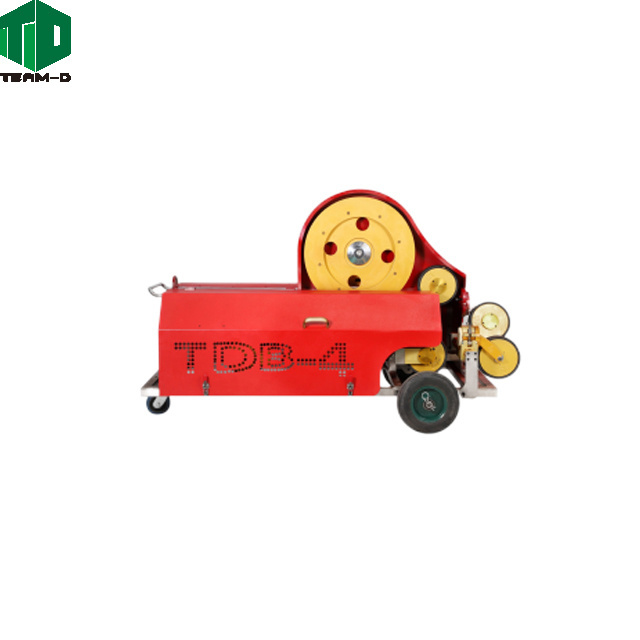

Horizontal wire saw cutting reinforced concrete ,stone, granite and marble
|
TD Hydraulic Wire Saw Machine Specifications |
|||
|
Spec. |
TDSJ-B1 |
TDSJ-B3 |
TDSJ-B4 |
|
Wheels Num.(pcs) |
9 |
15 |
14 |
|
Wire length |
11m |
17m |
15m |
|
Times to cut 1(m*m)concrete block |
15-20min |
15-20min |
15-20min |
|
Size (mm) |
650*815*1760 |
800*850*1760 |
2010*850*1180 |
|
Weight (kg) |
135 |
168 |
220 |
|
Drive motor |
2 |
2 |
2 |
Feature
1.The row wheels are all made of m agnesium aluminum alloy and weigh about one third of iron, the structure of the row wheels is upper and lower fastening type, which is simple and has good sealing and waterproof properties.
The bearing adopts high speed double row angular contact ball bearing.
2.The bearing inside the wheel is wider than before, ensure its better force bearing capacity.
3.The rear end of the wheel shaft of the row wheel is additionally provided with a support frame to ensure that the row wheel runs more stably and firmly.
4.The whole machine is x long, x wide and x high(2010x850x1180),and is suitable for cutting in various harsh environments.
5.The cylinder travel is 500mm and the longest length of the rope is 15m.
