Quick Details
-
Model Number:
-
TVM802A
-
Number of feeder:
-
29
-
Number of head:
-
2
-
Vision system:
-
2 HDCCD Camera
-
Software version:
-
English(keep updating)
-
Driver:
-
High voltage driver
-
Max XY Moving rang:
-
395*450mm
-
Maximum mounting rate:
-
7000CPH
-
Max applicable PCB:
-
20*20mm-340*340mm
-
Positioning accuracy:
-
0.025mm
Quick Details
-
Weight (KG):
-
60
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HECAN
-
Model Number:
-
TVM802A
-
Number of feeder:
-
29
-
Number of head:
-
2
-
Vision system:
-
2 HDCCD Camera
-
Software version:
-
English(keep updating)
-
Driver:
-
High voltage driver
-
Max XY Moving rang:
-
395*450mm
-
Maximum mounting rate:
-
7000CPH
-
Max applicable PCB:
-
20*20mm-340*340mm
-
Positioning accuracy:
-
0.025mm

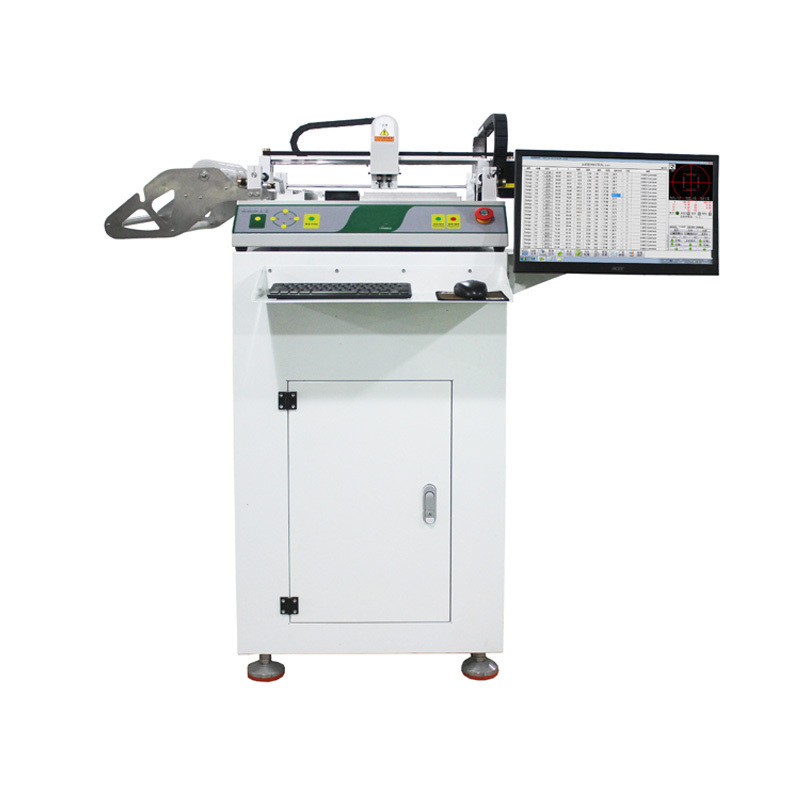

Cheap 2 Heads Small Pick And Place Machine TVM802A With 29 Feeders
Machine is of high quality with at least one-year warranty, lifetime maintenance.
1.TVM802A pick and place machine: 1 Set
2.User Manual CD:1 PCS CD disk:1PCS USB: 1 PCS Power Line: 1PCS Screw Driver:1 Set
3.4 kind nozzle:1 Set (Totally 4: 503-1, 504-1, 505-1, 506-1)
4.Spare Parts: 1 Set(Grease: 1 box, Wrench:1 PCS, Teasing needle:1 PCS, Rubbing ring: Several)
|
Specification
|
|
|
|
Model
|
TVM802A
|
|
|
Max applicable PCB
|
20*20mm~340*340mm
|
|
|
Max XY Moving rang
|
395*450mm
|
|
|
Max Z Moving range
|
12.5mm
|
|
|
Placement head quantity
|
2
|
|
|
Mounting speed without vision
|
7000CPH
|
|
|
Mounting speed with vision
|
5500CPH
|
|
|
Mounting accuracy
|
±0.025mm
|
|
|
Applicable component
|
0402-5050. SOP. TQFP. QFN BGA etc.
|
|
|
Component supply
|
Tape reel, Bulk, Tubular, Tray etc.
|
|
|
Vision system
|
2 HDCCD Camera
|
|
|
Driver
|
High voltage driver
|
|
|
Feeder count & Tape width |
Total=29PCS
8mm=25pcs,12mm=3PCS 16mm=1PC |
|
|
Pump
|
Silent breathless vacuum pump Blowing pump
|
|
|
Leakage material detection
|
Vacuum
|
|
|
Power
|
125W(average power)
|
|
|
Power supply
|
AC220V or AC110V
|
|
|
Package size
|
L1070*W770*H420mm
|
|
|
Volume
|
0.32CBM
|
|
|
Net weight
|
45kg
|
|
|
Gross weight
|
58KG
|
|
|
Support PCB design software
|
Protl99/Altium Designer/Eagle/Pads/Allegre etc.
|
|
Picking Heads
Nozzle details
Nozzles details for your reference, to choose suitable model for your components
Imported polished rod and HIWIN straight line guide rail
Stable+high speed+accurate
Z-AXIS Detection
Can help self-check the height and angle of double-headed
Ensure the stability
Newly updatedsecond-generation reels
The material stack can be customized as well
IC Tray （Can be customized）
Preset 18 kinds of general IC components
PCB Board area
MAX size：340*340
Dual version calibration
2 high-precious CCD camera automatically correct the picking error more accurate
FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training.video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
Q: Is there any quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET)
Q:The Warranty of the machine?
A:AT LEAST One year,then the parts will be free for the buyer WITNIN the warranty.
Q:English version for these machines?
A:Yes
Q:Are machines can meet software update?
A:YES, we will update machine and will send you at first time
Q:Do you have any operation videos to watch?
A:We provide customers with special operation videos. 24 Hours online guiding
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training.video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
Q: Is there any quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET)
Q:The Warranty of the machine?
A:AT LEAST One year,then the parts will be free for the buyer WITNIN the warranty.
Q:English version for these machines?
A:Yes
Q:Are machines can meet software update?
A:YES, we will update machine and will send you at first time
Q:Do you have any operation videos to watch?
A:We provide customers with special operation videos. 24 Hours online guiding
