Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jane
-
Voltage:
-
380V 50HZ 3P or Customize as customer' request
-
Dimension(L*W*H):
-
6000mm*1100mm*1500mm
-
Weight:
-
3500 kg
-
Feeding width:
-
1200mm or customer's need
-
Marketing Type:
-
Hot Product
-
Product name:
-
Roof Tiles Roll Forming Machine
-
Machine color:
-
As customer' need
-
Roller station:
-
Depend on customer' drawing
-
Cutting tolerance:
-
± 1 mm
-
Main power:
-
4 kw
-
Pump power:
-
3 kw
-
Control box language:
-
English or add language as customer need
-
Machine cutter material:
-
Cr 12
-
Shaft material:
-
45# steel with 0.05mm chrome
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Galvanized steel or PPGI
-
Production Capacity:
-
8-20 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jane
-
Voltage:
-
380V 50HZ 3P or Customize as customer' request
-
Dimension(L*W*H):
-
6000mm*1100mm*1500mm
-
Weight:
-
3500 kg
-
Feeding width:
-
1200mm or customer's need
-
Marketing Type:
-
Hot Product
-
Product name:
-
Roof Tiles Roll Forming Machine
-
Machine color:
-
As customer' need
-
Roller station:
-
Depend on customer' drawing
-
Cutting tolerance:
-
± 1 mm
-
Main power:
-
4 kw
-
Pump power:
-
3 kw
-
Control box language:
-
English or add language as customer need
-
Machine cutter material:
-
Cr 12
-
Shaft material:
-
45# steel with 0.05mm chrome
Products Description

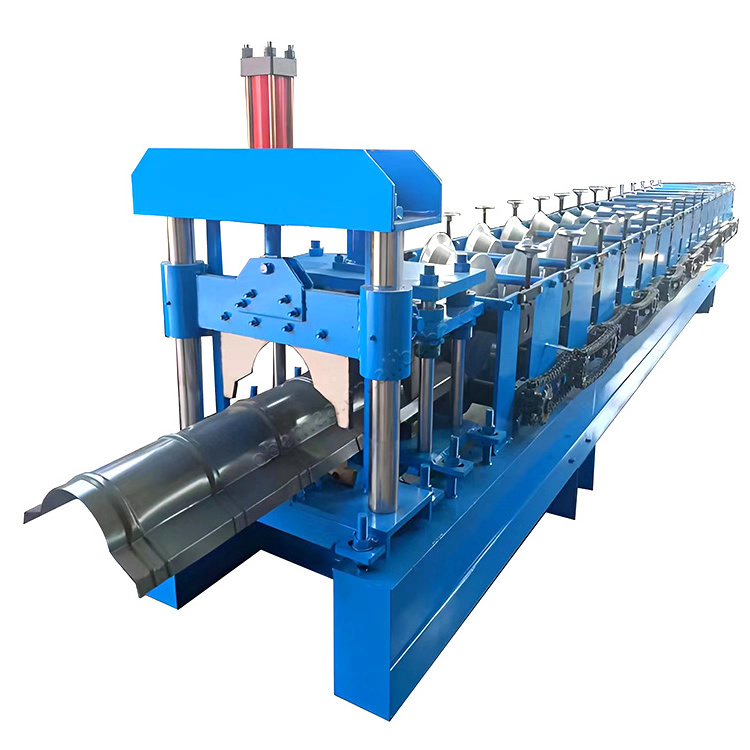

Ridge Cap Roll Forming Machine
Metal Roof Ridge Cap Tile Cold Roll Forming Making Machine is the most popular type of roll forming machines, mainly suitable for PPGI, GI and other harder coils. It makes different shape of color steel roof sheet, which is used in the construction of various industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel. It has beautiful design, and widely used in all over the world.
Work processing
Specification
|
Ridge Cap Roll Forming Machine
|
|
|
|
|||
|
SN
|
Part details
|
Item
|
Specification
|
|||
|
1
|
Material
|
Raw material
|
Galvanized steel or PPGI
|
|||
|
|
|
Thickness
|
0.3-0.8 mm
|
|||
|
2
|
Machine
|
Roller station
|
Depend on customer' drawing
|
|||
|
|
|
Shaft diameter
|
70 mm
|
|||
|
|
|
Shaft material
|
45# steel with 0.05mm chrome
|
|||
|
|
|
Roller material hardness 30-40 HRC
|
45# steel with 0.05mm chrome
|
|||
|
|
|
Machine size
|
About 6×1.1×1.5 m
|
|||
|
|
|
Machine weight
|
About 3.5 ton
|
|||
|
|
|
Machine color
|
As customer' request
|
|||
|
|
|
Working speed
|
8-20 m/min
|
|||
|
3
|
Cutter
|
Hardness
|
50-65 HRC
|
|||
|
|
|
Cutting tolerance
|
± 1 mm
|
|||
|
|
|
Material
|
Cr 12
|
|||
|
|
|
Operate
|
Hydraulic cutting
|
|||
|
4
|
Power
|
Driving way
|
Chain 1 inch
|
|||
|
|
|
Main power
|
4 kw
|
|||
|
|
|
Pump power
|
3 kw
|
|||
|
|
|
Voltage
|
Customize as customer' request
|
|||
|
5
|
Control system
|
PLC brand
|
Delta or Customize as customer' request
|
|||
|
|
|
Screen
|
Touchable screen
|
|||
|
|
|
Language
|
English or add language as customer need
|
|||
|
6
|
Decoiler
|
Operation
|
Manual
|
|||
|
|
|
Weight capicatity
|
3 ton
|
|||
|
|
|
Price
|
Free as gift
|
|||
|
7
|
Receiving table
|
Operation
|
Manual
|
|||
|
|
|
Length
|
3 m
|
|||
|
|
|
Price
|
Free as gift
|
|||
Product Details
Fully automatic computer operation, easy to use, convenient and responsive.
The frame structure is welded with carbon steel plates, which has a long service life.
Carefully selecting materials is the key to making good products.
On demand production, welcome to customize with pictures.
Low noise operation and short flattening time.
Good bearing capacity and easy operation.
Sample Room
Finished product effect for your reference.
The following are the products produced by our machine. Please check the rolling forming effect.
Related Plate Type
Glazed Tile Type Roll Forming Sheet
Corrugated Type Roll Forming Sheet
IBR Type Roll Forming Sheet
Other Product
