Quick Details
-
Weight (KG):
-
1000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Santa
-
Color:
-
Customer optional
-
Speed:
-
530 RPM
-
Certification:
-
ce
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Machine Type:
-
Covering Machine
-
Product:
-
Yarn
-
Material Capabilities:
-
Yarn
-
Weight (KG):
-
1000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Santa
-
Color:
-
Customer optional
-
Speed:
-
530 RPM
-
Certification:
-
ce
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Introduction:

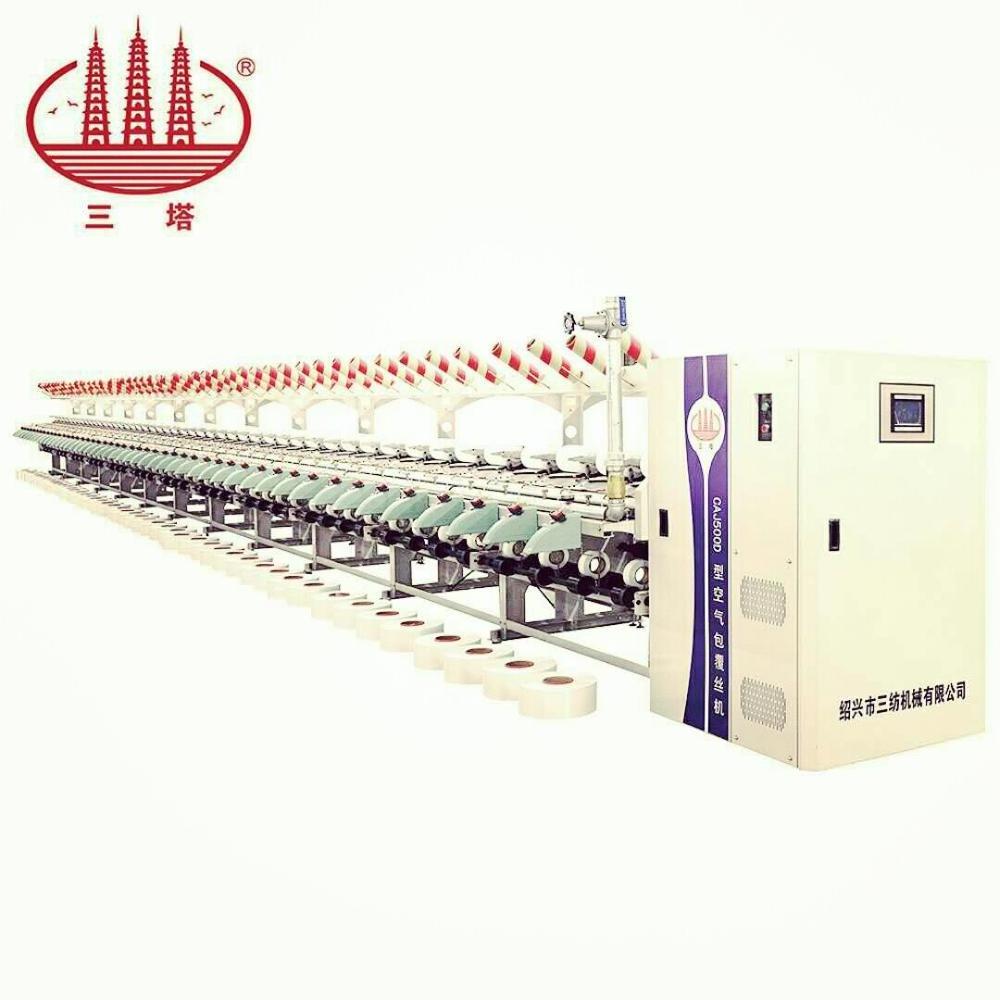

CAJ500 D High Speed Air Covering Thread Machine,Mainly used for producing sock yarn,denim yarn,underwear yarn,knitting yarn and so on
The machine is used for producing Air covering Thread through Air jet intermingling, like Polyester/Spandex, Nylon/Spandex and etc.
1. to keep the machine more steady, looks well, and also easy to install, the machine’s wallboard adopt the Metal panel welding, transom use cast product structure.
2. the positive spandex feeder, through the way of synchronous belt to achieve the spandex’s draft time, it can avoid the unconformity of spandex draft time which drove by motor.
3. each side with a motor drove, so with inverter it can adjust the machine two sides with running different speed.
4. with slide yarn guider, it can take up the Pineapple cone yarn with different angles for easy to rewinding out yarn at next process.
5. Optimal yarn path, and with using quality Ceramic Guider, can avoid frazzling the yarns.
6. The machine can optional install Oil Device according to requirement.
Main technology parameters:
| Machine Type: | Two sides and one layer |
| Suit yarn counts: | Polyester75-400D/Spandex 20-70D |
| Spindle No.s: | 96 spindles(8 spindles per group) |
| Spindle Gauge: | 382mm |
| Working speed: | <420m/min |
| Suit bobbin size: | Φ57 x Φ69 xL290mm |
| Take up Dia: | < Φ250mm |
| Winding type: | Friction roller driving bobbin, slide yarn guider |
| Machine Power: | 7.5KW |
| Machine size: | L(1592 x 12 + 895) x W 2060 x H1620mm |
| Machine weight: | 6000KG |
