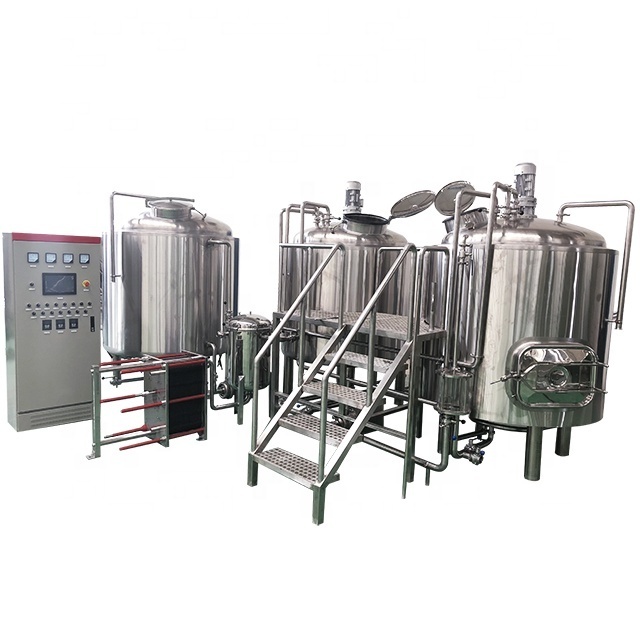

3 barrel 3 bbl electric all grain beer brewing system

3 barrel 3 bbl electric all grain beer brewing system

1. Features :

1) Automatic /semi-automatic operation system ,need one or two brewer operate

2) with our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes

3) w have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate

4) have good feedback from our clients

5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.

Parameters:

PS: All the configurations and specifications can be customized according to your requests.

Full set beer brewery:
Brewhouse:100L~10000L, mash tun, lauter tank, kettle/whirlpool tank
Fermentation: 100L~20000L conical fermenters, unitanks, conditioning tank
Bright beer tank: 100L~20000L serving tanks, BBTs
Beer selling: beer tower, beer selling tank, stainless steel beer kegs, keg filling, keg washing, bottle filling, bottle washing, capping machine and etc.

Fermentation system
Top manhole or side manhole. Top manhole have better cooling effect of the tanks; Side manhole is much easily to let person enter.
The location of mahole is design according to your needs. Glycol jacket: dimple or glycol jacket.
Cooling media: glycol water or alcohol water. Design pressure 0.3MPa,Working pressure 0.2Mpa
Stringent jacket leakage test by pressured gas
Cone bottom:60°cone bottom or according to your needs.
Dry hops port on the top of tanks with butterfly valve and hopper(This can remove if the hops enter from other parts, let it make better beer.
Full sanitary sample valve, no seal ring, no pollution.
The numbers of fermentation tank is according to the Industrial stainless steel beer fermentation tank daily output beer.

Glycol jacket fermentation vessel:
1.Different capacities for different requirements, depend on your demands.
2.Stainless steel material 304/316
3.Inner material: stainless steel 304/316
4.Outer material: stainless steel/titanium
5.Temperature sensor(RTD)
6.Flange&dish head(single/double head)
7.Polyurethane 80~100mm
8.Rotary cleaning ball,360 degree, no dead corner
9.With racking arm and agitator,sight glass manhole, with Siemens VFD for them
10.With SUS304 Plate heat exchange, two phase or one phase(according to needs)
11.Cold water tank available&optional
12. Sieve plate, laser cutting T-wires, plate gap:0.7- 0.8mm; Material is SUS 304

Control system:
Application:Used for controlling all fermenters/serving tanks,CIP, mashing system and cooling system.
Type:It can be make PLC or Instrument type.
Assembling style: floor type/wall hanging
Electric parts: world wide brand CE certificated
It have VFD to control the racking arm and wort pump
All the fermenters /Ice water tank’s temperature will be controlled on the cabinet automatically.

Jinan Honglin beer equipment has been widely used around the world, such as home brewing, small breweries, pubs, restaurants, hotels, brewpubs, bars, teaching laboratories and leisure field, brewing barley beer, wheat beer, dark beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.

1.Wooden case or steel frame.

This method is very good for loading but need extra cost. Also because of the dimensions of the tanks and container, maybe some tanks cannot use them, but can be confirm when talking about the order.

2.Generally will use the stretched film, this is free and also can avoid the scratches. Will use the carton to cover all of the accessory.

We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.

1. 10 years warranty for the main equipment; the electronic component is 2 year.

2 .Pre-sales service

Some clients are new in this field, they also no have ideas about how to confirm the configuration list, since we have experience, we can give some suggestions and also other clients for reference, then they will know what they will need exactly.

We also have the process video for the brewing equipment, if the client do not know the process, the video will be sent.

We will give the layout according to the client’s floor plan or their requirements.3D layout also can be provided. This can help the client to get a better understanding about the project.

We will give the detailed diagram of the tanks, this can help the client to know whether this is what they need and also can modify them before placing the order.

3 .After-sales service

When loading the equipment, we will take photos and show them to the client to confirm everything in the container already.

Another important issue is installation,2 options can be chosen by the clients as follows:

1). We can send the engineer there for helping the client install debug the equipment, if it is necessary, the engineer also can teach the client how to brewing beer.

2). We can provide the piping diagram and wire diagram. They are useful for installing. Then the client can install the equipment by themselves.

3). The sales will contact with the client all the time until the equipment running normally. Once the client need any assistances or need any accessory, the sales will provide them soonest.
