Quick Details
-
Product Name:
-
600lbs handle magnetic locks with button
-
Operation Delay Time:
-
0sec., 2.5sec., 5sec., 9sec.
-
Holding forces:
-
600lbs
-
Weight:
-
3kg
-
Operation temperature:
-
35℃ ±5℃ (30℃ room temperature)
-
Certification:
-
CE FCC ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
EL-250
-
Product Name:
-
600lbs handle magnetic locks with button
-
Operation Delay Time:
-
0sec., 2.5sec., 5sec., 9sec.
-
Holding forces:
-
600lbs
-
Weight:
-
3kg
-
Operation temperature:
-
35℃ ±5℃ (30℃ room temperature)
-
Certification:
-
CE FCC ROHS
Hot selling products

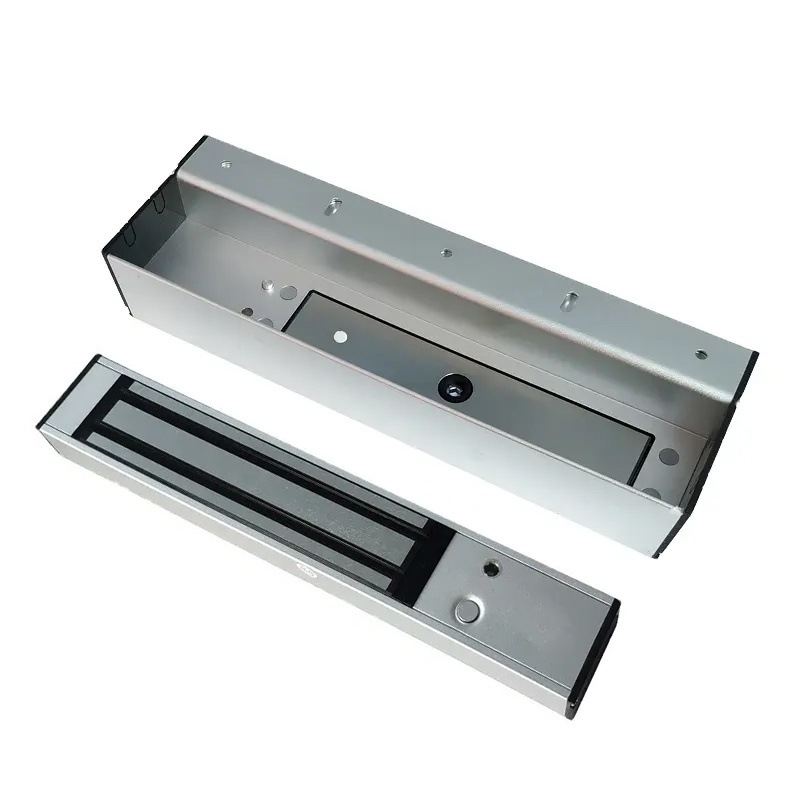

Electromagnetic Lock Swing Door Electric Magnetic Lock with button
> Power Supply: DC12V; DC24V
> Operation Delay Time: 0sec., 2.5sec., 5sec., 9sec.
> Holding forces: 600lbs
> Weight: 3kg
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Features
1. Suitable for in-swing door or 90 doors
2. Built-in push button and power indicator light.
Adjustable door opening time (0~9 seconds.)
3. Built-in delay time and lock monitor output.
4. Armature with handle design.
5. Standalone operation when power is on and it does not need to be controlled by proximity reader.
6. Install at the center of the door leaf to prevent deformation whenever it is locked or unlocked.
|
Model |
EL-250 |
Notes |
|
Power Supply |
DC 12V / DC 24V |
± 15% |
|
Current |
450mA / 12VDC 235mA / 24VDC |
± 15% |
|
Monitor Output |
N.O / N.C |
Hall Effect Sensor |
|
Operation Delay Time |
0 sec., 2.5sec., 5sec., 9sec. |
|
|
Application |
Out-swing door and In-swing door |
|
|
Holding forces |
600lbs |
|
|
Operation temperature |
35℃ ±5℃ (30℃ room temperature) |
|
|
Warranty |
The warranty is 1 year under normal circumstances |
|
|
Weight |
3 kg |
|
