(1) Into bottle way is air conveyor direct connection with Bottle dial .
(2) All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
(3) 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
(4) 304/316 stainless steel washing pump make the machine more durable .
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Heng Yu
-
Dimension(L*W*H):
-
2400 * 1650 * 2500 mm
-
Weight:
-
3500 KG, 3 T
-
Name:
-
automatic PET carbonated soft drink filling machine
-
Function:
-
Washing Filling Capping
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
5000 BPH
-
Processing Types:
-
Positive Pressure Filling
-
Voltage:
-
380V / 3 Phase / 50Hz
Quick Details
-
Machinery Capacity:
-
4000BPH, 5000bph
-
Packaging Material:
-
Plastic
-
Filling Material:
-
carbonated drink
-
Filling Accuracy:
-
±2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Heng Yu
-
Dimension(L*W*H):
-
2400 * 1650 * 2500 mm
-
Weight:
-
3500 KG, 3 T
-
Name:
-
automatic PET carbonated soft drink filling machine
-
Function:
-
Washing Filling Capping
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
5000 BPH
-
Processing Types:
-
Positive Pressure Filling
-
Voltage:
-
380V / 3 Phase / 50Hz
Product Description

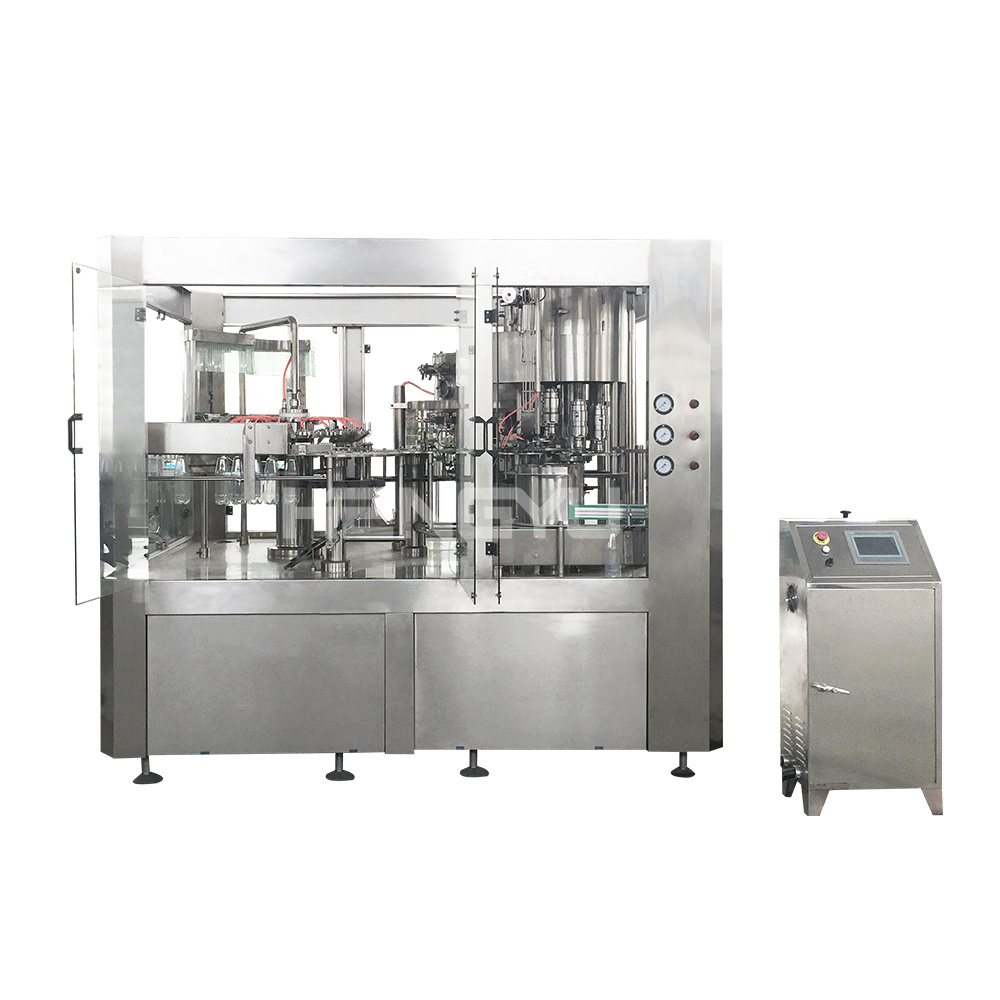

Heng Yu automatic complete carbonated soft drink filling machine
PET Carbonated Drink Filling Machine DCGF18-18-6
This PET carbonated drink filling machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
PET Carbonated Drink Filling Machine Benefits
(1) This machine is mainly used to fill the carbonated drink.
(2) Washing,filling and capping are available in one machine.
(3) The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
(4) The filling method adopts the isobaric filling so that the filling speed is faster and stable.
(5) Using the advanced PLC(Programmable Logic Controller) technology.
(6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.
Technical Parameters
|
Model
(DCGF)
|
DCGF
14-12-5
|
DCGF
18-18-6
|
DCGF
24-24-8
|
DCGF
32-32-10
|
DCGF
40-40-10
|
DCGF
50-50-12
|
DCGF
60-60-15
|
|
Capacity
(BPH)
|
2000
|
5000
|
7000
|
9000
|
14000
|
18000
|
24000
|
|
Rinsing heads
|
14
|
18
|
24
|
32
|
40
|
50
|
60
|
|
Filling heads
|
12
|
18
|
24
|
32
|
40
|
50
|
60
|
|
Capping heads
|
5
|
6
|
8
|
10
|
10
|
12
|
15
|
|
Power(kw)
|
2.2
|
3.5
|
4.5
|
6
|
7.5
|
9.5
|
11.2
|
|
Dimension
(mm)
|
2300*1600
*2500
|
2600*1920
*2550
|
3100*2200
*2800
|
3850*3000
*2850
|
4850*3800
*2750
|
7570*3550
*2750
|
6500*5500
*2750
|
|
Weight(kg)
|
2800
|
3650
|
4800
|
6800
|
8650
|
10500
|
12800
|
Detail Photos
Washing heads
Filling heads
(1) 304/316 Stainless steel high precision filling nozzle
(2) Filling volume adjustable in fine rank, same liquid level after filling
(3) All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
(4) 304/316 stainless steel filling pump
(5) Efficient spray nozzle rinse thoroughly and save water for flushing
Capping heads
(1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
(2) All 304/316 stainless steel construction
(3) No bottle no capping
(4) Automatic stop when lack of bottle
(5) Capping effect is stable and reliable ,Defective rate ≤0.2% .
Whole Line Products
The Flow Chart of Carbonated Drink Filling Machine Production Line
The Whole Carbonated Drink Filling Machine Production Line Products
The carbonated drink filling machine production line mainly consists of 6 parts below. They are respective:
1. The W
ater Treatment
2. The Plastic PET Preform Bottle Blowing Machine
3. 3-in-1 Washing-Filling-Capping Machine
4. The Bottle Blow Dryer Machine
5. Auto-sleeve Shrinking Label Machine
6. PE Film Shrink Wrapping Packaging Machine
That is to say, this line is from t
he water treatment
to the bottled water packaging , is a completely automatic production line, it can well meet customer needs. We also design a reasonable plan for you to achieve higher production efficiency.
Auxiliary
Water Treatment System
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
Pretreatment System
This project is to design for the carbonated drinks preparation to meet the client’s technics, which includes hot water section,sugar melting section, syrup storage section, sterilizing section, carbon mixing section. This design is popular in the modern beverage field worldwide, with the advantages of high efficiency, energy saving, continuous working, etc.
CO2 Mixer
Mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back
flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system.
flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system.
Bottle Blowing Machine
The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics,wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.
Bottle Dryer
Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much as possible the body blow it away. Inclination of the slit so that the entire side of the bottle can be high-speed air-blown. The bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components.
Laser Printer
Laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics,glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D, DMC and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving.
Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on
the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
direction and different height.
the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
direction and different height.
Shrink Film Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
