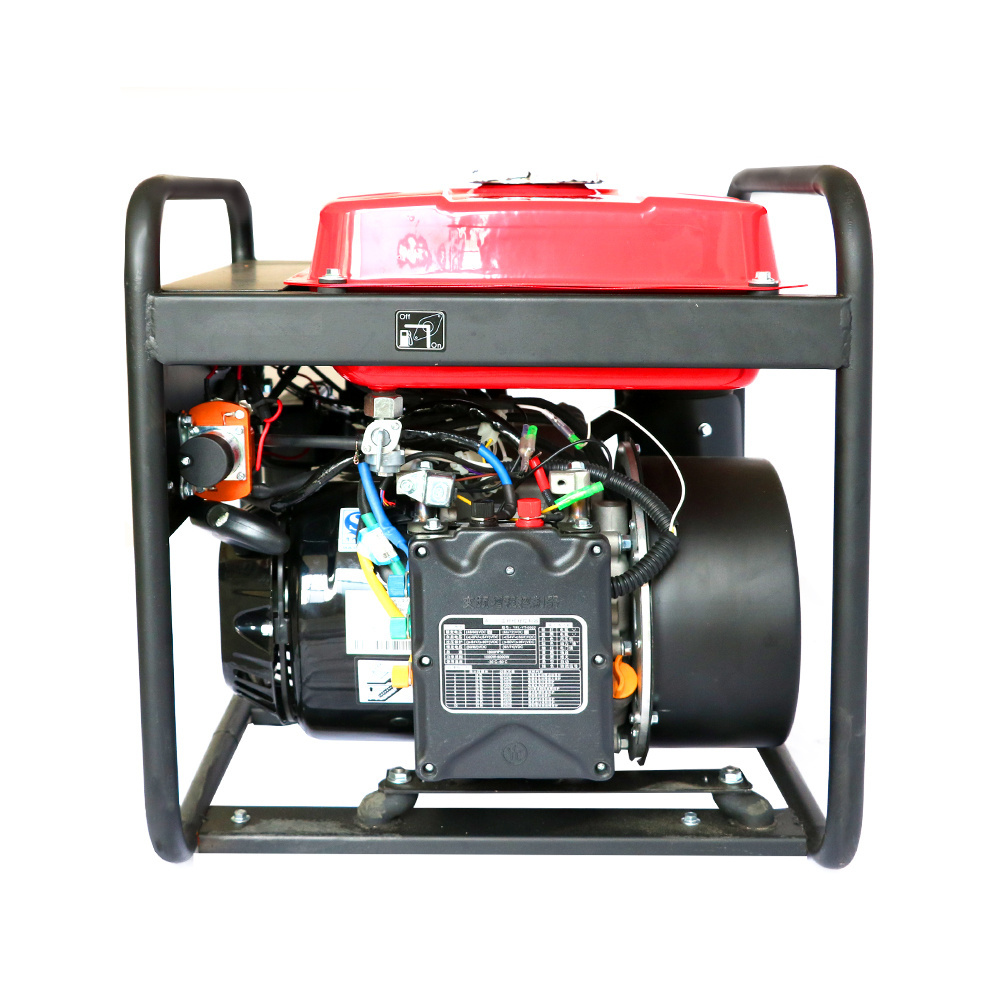

100A 150A 200A 48V DC generator for telecom tower

100A 150A 200A 48V DC generator for telecom tower

FOB Reference Price: Get Latest Price

≥1 Sets

US $906

≥50 Sets

US $815

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: HOP

Model Number:: HPQ48V-90A

Weight:: 35kg

Adapted output:: DC48V/80A

Output voltage:: 51V~55V

Adaptation current range:: <80A

Adaptation voltage range:: 48V~57V

Weight (kg):: 30-35

Product size (mm):: 480*430*480

Certification:: CE

Quick Details

Rated Voltage:: DC48V

Rated Current:: <80A

Frequency:: 50HZ

Place of Origin:: Sichuan, China

Brand Name:: HOP

Model Number:: HPQ48V-90A

Weight:: 35kg

Adapted output:: DC48V/80A

Output voltage:: 51V~55V

Adaptation current range:: <80A

Adaptation voltage range:: 48V~57V

Weight (kg):: 30-35

Product size (mm):: 480*430*480

Certification:: CE

Products Description

Mode	Adapted output	Output voltage	Adaptation current range	Weight (kg)	size(mm)
HPQ48V-90A	DC48V/80A	51V~55V	<80A	30-35	480×430×480
HPQ48V-130A	DC48V/120A	51V~55V	<120A	50-65	540×540×570
HPQ48V-160A	DC48V/150A	51V~55V	<150A	60-76	720×540×570
HPQ48V-200A	DC48V/200A	51V~55V	<200A	140-150	950×600×770
HPC250V-130A	DC250V/120A	210V-250V	<120A	100-130	710×520×620
HPC250V-160A	DC250V/150A	210V-250V	<150A	120-140	750×550×720
HPC250V-200A	DC250V/200A	210V-250V	<200A	150-220	950×600×770

Notes: A ll products Adaptation voltage range is 48V~57V

Application

Communication base station

Transmission room

Monitoring room

Why Choose Us

Energy Saving

HPQ48V-90A parameters:

Maximum fuel consumption: 80A＜2.0L/h Economic fuel consumption: 50A＜1.5L/h Average fuel consumption: 1.5L~2.0L/h

Ordinary 8kw parameters: Full load rated fuel consumption 3.8L/h Actual fuel consumption ＞4.5L/h

This product adopts an automatic intelligent fuel-saving device, which can automatically adjust the engine speed, fuel supply, and output voltage and current according to the load, so as to achieve the effect of environmental protection and energy saving.

Lightweight

HPQ48V-90A compated with normal AC 8KW oil machine :

60% weight reduction HPQ48V-90A Net weight: 30~35KG

Normal 8KW:87KG

40% reduction in volume

Normal 8KW: 700*526*580mm

Product size: 475*425*450mm

Intelligent

Monitor the stock voltage of the base station battery pack as the self-start value

Self-starting parameters can be adjusted according to the needs of each base station

Monitor the change of the mains charging voltage of the base station to achieve automatic shutdown

Synchronization can monitor the incoming and outage of city power, which is better than energy saving

All-in-one design： Waterproof, anti-collision, GPS and full Netcom antenna built-in, integrated design, intelligent monitoring of charge and discharge.

Intelligent data collection： When the generator starts to transmit power, the collector starts to enter the detection state, and the collector connects to the network and starts to push various data to the server: start generation time, generation time, longitude and latitude, three-phase current value, three-phase voltage value, power generation, diesel engine frequency, Active power, reactive power, apparent power, power factor, end generation time, etc.

Current and voltage detection： Using a dedicated metering chip for electric energy meters, it can read the current value, voltage value, various powers, and oil machine frequency from the generator in real time, and accurately calculate the electric energy with an error of ≤±1%; and monitor the output power quality.

GPS/Beidou positioning： Using GPS and Beidou composite positioning method, the CELL/ID information of the base station can be collected when the diesel engine is generating power, and GPS/Beidou latitude and longitude information can be sent, and the geographic location of the generator can be accurately determined based on this.
