Quick Details
-
Applicable Industries:
-
industrial heater
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NE-Air Duct Heater
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
268 KG
-
Working Temperature Range:
-
1 - 600 ℃
-
Core Components:
-
Finned tubular heater
-
Name:
-
Electric air duct heater for ventilation system
-
Usage:
-
Muffle Furnace
-
Material of tank:
-
304 stainless steel,steel, carbon steel
-
Pressure:
-
MAX 0.6 Mpa
-
Thermal Efficiency:
-
More than 95 percent
-
Optional:
-
air fan , temperature controller
-
Max.temperature:
-
600℃
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
220v 380v 415v etc, 220v 380v 415v etc
-
Applicable Industries:
-
industrial heater
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NE-Air Duct Heater
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
268 KG
-
Working Temperature Range:
-
1 - 600 ℃
-
Core Components:
-
Finned tubular heater
-
Name:
-
Electric air duct heater for ventilation system
-
Usage:
-
Muffle Furnace
-
Material of tank:
-
304 stainless steel,steel, carbon steel
-
Pressure:
-
MAX 0.6 Mpa
-
Thermal Efficiency:
-
More than 95 percent
-
Optional:
-
air fan , temperature controller
-
Max.temperature:
-
600℃

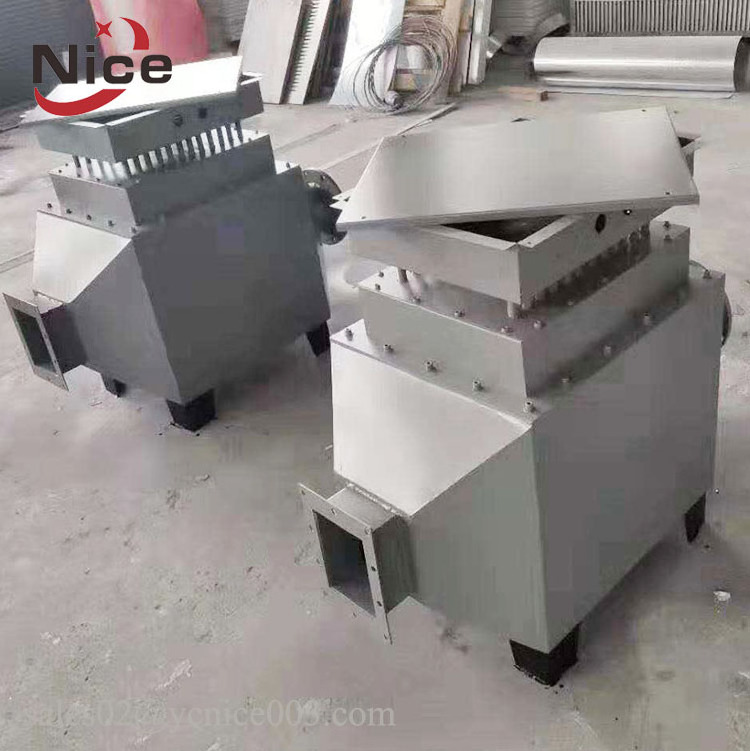

Electric air duct heater for ventilation system are mainly used for heating air through the duct. There are three types, low temperature, middle temperature and high temperature. The outer stainless steel sheath and construction can reduce the vibration of heating elements.There is a overheat protector in the terminal box. Air pressure through the duct should not exceed 0.3KG/cm². Or else it is better use recirculation duct heaters. Max temperature of low temperature duct heater is not more than 160 C. Max temperature of middle temperature duct heater is not more than 260 C. Max temperature of high temperature duct heater
is not more than 600℃
Main Features
1. During heating,air max temperature can reach 850 degree celsius,but the surface temperature of the sheath is just around 50 degree Celsius.
2. Heat efficient is more than 95%
3. Temperature raise rate:10 degree Celsius per second during working
4. The heating element is made of high temperature alloy with good mechanical character
5. Usage time:standard more than 10 years
6. Clean air,small volume
7. Made as client design,2KW~1000KW
8. After reached the max temperature,the working wattages can reduce to half.
Yancheng Nice Electric Heating Equipment Co.,Ltd,a professional manufacturer according to customers’ requirements,has advanced production lines,testing equipment and QC department to provide clients with high quality goods.In addition,an experienced R&D department and service team to give clients best heating solutions.
Our products have been exported to Europe,America,Asia,Mid East etc,more than 200 countries,and used widely in Plastic Machinery,Vacuum Packing,Petroleum Chemical Industry,Food,Industrial Furnaces and Autonmation etc.
Thank you for your patience and welcome your cooperation.
1. Packing
Package : wooden case ; or under customer request
Lead time : For 1pcs to 10pcs,10 days after payment.
For big quantity,negotiated delivery time
2. Shipping
1. By Air or by Sea for batch goods;
2. Customers specifying freight forwarders or negotiable shipping methods
