Quick Details
-
Brand Name:
-
DYP
-
Theory:
-
ultrasonic radar
-
Output:
-
digital output
-
Description:
-
Ultrasonic distance sensor
-
Product name:
-
robotics sensor
-
Measurement Range:
-
2~300 cm
-
Operating Current:
-
< 9 mA
-
Operating Voltage:
-
DC 3.3~12V
-
Standby Current:
-
< 5 uA
-
Accuracy:
-
1 cm+(s*0.3%)
-
Blind Spot:
-
2 cm
-
Usage:
-
Level Sensor
-
Interface:
-
Digital
-
Certificate:
-
ISO9001 CE ROHS FCC
Quick Details
-
Use:
-
Automatic control and obstacle avoidance
-
Model Number:
-
DYP-A22
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DYP
-
Theory:
-
ultrasonic radar
-
Output:
-
digital output
-
Description:
-
Ultrasonic distance sensor
-
Product name:
-
robotics sensor
-
Measurement Range:
-
2~300 cm
-
Operating Current:
-
< 9 mA
-
Operating Voltage:
-
DC 3.3~12V
-
Standby Current:
-
< 5 uA
-
Accuracy:
-
1 cm+(s*0.3%)
-
Blind Spot:
-
2 cm
-
Usage:
-
Level Sensor
-
Interface:
-
Digital
-
Certificate:
-
ISO9001 CE ROHS FCC
Product Description
Specification
|
Model
|
A22
|
|
Product Name
|

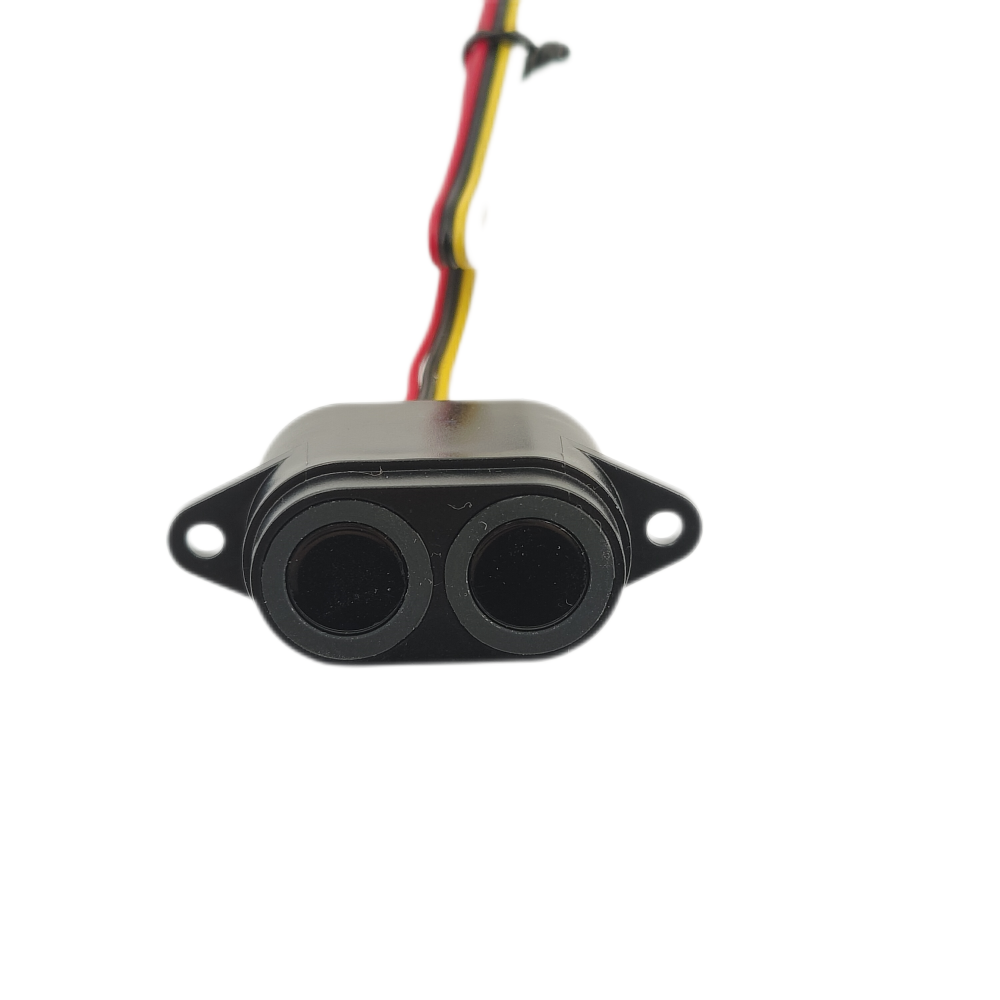

Split waterproof ultrasonic ranger
|
|
Advantage
|
(1) Wide voltage power input supported.
(2) Multiple output modes. (3) Waterproof sensor. (4) Strong anti-interference, anti-static abilities. (5) Data output stable and reliable. (6) Tiny size, easy to install. (7) Long measurement range, high accuracy. (8) Automatic output mode, not occupy hardware resources. (9) Controlled output mode, low power consumption |
|
Operating Voltage
|
DC 3.3-12 v
|
|
Operating Current
|
<8 mA
|
|
Standby Current
|
<5 uA
|
|
Peak Current
|
<40 mA
|
|
Blind Area Distance
|
2 cm
|
|
Measuring Range
|
2-300 cm
|
|
Accuracy
|
10 mm
|
|
Working Period
|
UART 100ms / Switch 100ms
|
|
Output Method
|
PWM pulse/UART controlled/UART automatic/Switch/RS485/IIC
|
|
Frequency
|
40 KHz
|
|
Temperature Compensation
|
Yes (PWM no compensation)
|
Scope of Application
Liquid Level Measurement in Small Bottles
Loop control
Diameter Sensing and Strip Speed Control
Contour Recognition
Quality Control
Vehicle Sensing and Positioning
Wire or Rope Breakage Monitoring
Stack height sensing
Bottle Counting
Breakage Sensing
People Sensing, Human body Height measurement
Liquid Level Measurement in Large Vessels(Tanks, Silos)
Flat Object sensing or detection
Anti-Collision, Proximity Alarm
Height Sensing
