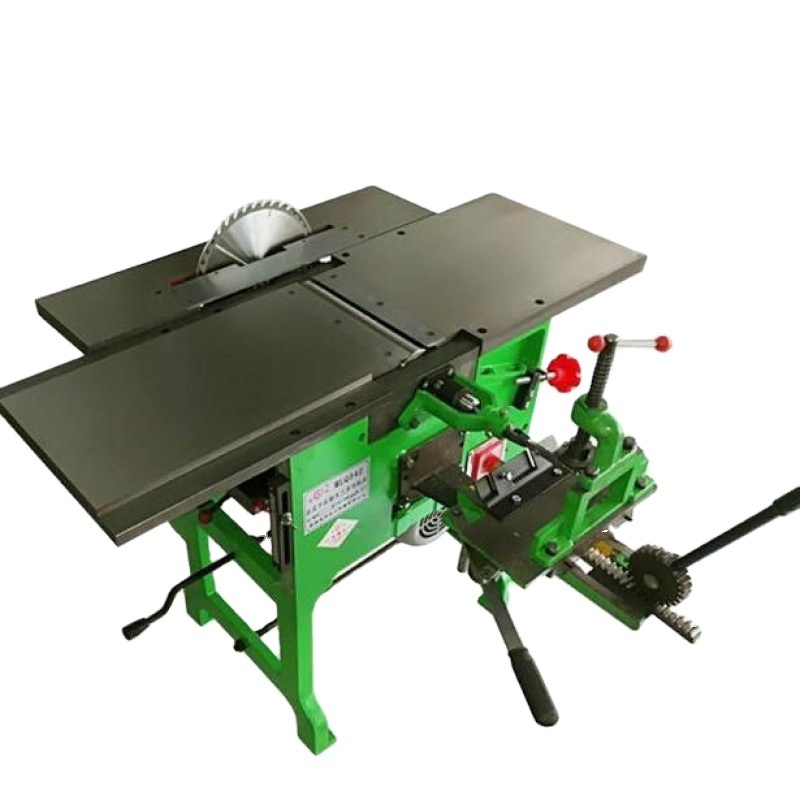

ML392 All In One Multi Function Combined Woodworking Combination Machine

ML392 All In One Multi Function Combined Woodworking Combination Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $700

≥10 Sets

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Customized

Dimension(L*W*H):: 1000*900*800

Weight (KG):: 190 KG

Power (kW):: 2.2kw

Application:: DIY

Name:: Multifunctional sawing and planing

Advantage:: Multifunctional

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Hezhi

Usage:: DIY

Voltage:: Customized

Dimension(L*W*H):: 1000*900*800

Weight (KG):: 190 KG

Power (kW):: 2.2kw

Application:: DIY

Name:: Multifunctional sawing and planing

Advantage:: Multifunctional

Feature of Woodworking combined saw, planer, thicknesser

1. Sharpening, Drilling round hole, tenon making, Planing, cutting mouth, cutting mouth chamfering, Grinding saw blade, sawing, Chop spring, kinds of woodworking combinated.
2. Pure copper motor, wear resistant, efficient and stable, long service life.
3. Cast iron countertops, 120mm, 200mm, 250mm, 300mm, 400mm width for you choose.
4. Full cast iron table, can drilling circle hole, adjustable up and down
5. The upper and lower drive shafts rotate synchronously, and the feeding is powerful and powerful. It can move forward and backward freely, and there will be no stuck wood and no advance or retreat.
6. excellent waterproof design, so that the spindle is completely waterproof when working, do not burn saw blades.
7. the use of ultra-thin small size saw blade, small load, saving materials and power.
8. through the dynamic balance of professional testing, vibration, voice is smaller.

Product name	10 in 1 combination multi wood planer
Model	ML392	ML393
Max. Planing width	260mm	310mm
Max. Planing thickness	3mm
Press planing thickness range	6~120mm
Max. Sawing thickness	80mm	120mm
Cutting mouth depth	10mm
Max. Mortise size	16*16mm
Max. Mortise depth	120mm
planer shaft diameter	78mm
Thicknesser feeding speed	6.5m/min
Circular saw blade diameter	250mm(10inch)	300mm(12inch)
Type	Turbine pole single screw	Turbine pole single screw / Turbine pole double screw
Spindle speed	4200r/min
Motor power	2.2kw, 220V/380V, 50Hz
Dimension	1000900800mm	1200900800mm
Weight	160kg	190kg
Function	Sawing, planing and jointing, thicknessing, sharpening saw blade and planing blade, drilling square or round hole(mortise), chop spring, grooving, cutting mouth, tenoning
Optional	Mobile pushing table, blade cover,backing ruler, we give 1 piece 10inch saw blade,for extra you need purchase.

Product name	4 in 1 combination multi wood planer
Spindle speed	3560r/min
Max.planing width	300mm
Max.planing thickness	3mm
Max.sawing thickness	100mm
Max.pressure plane width	300mm
Max.planing thickness	120mm
Mortising range	10-16mm
Max.mortise depth	120mm
Motor power	2.2kw/380v
Overall dimensions	10001150810mm

Fully automatic wood planer is widely used in sheet metal, furniture, construction, automobile, shipbuilding, DIY, decoration and other industries, with a wide range of social and economic benefits. machine with the most illustrative design, achieve the best use effect, the complexity of the program is your most economical choice.

Qingdao Hezhi Machinery Group

located in Qingdao West Coast Economic New Zone .we are a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005 .

We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating casting machinery, surface shot blasting machine, sand treatment, automation equipment research,Saw machine, Press Machine, Edge banding machine, Sanding Machine, Drilling Machine, Polishing Machine, Woodworking Planer, Vacuum Laminating Machine, Spray paint machine and CNC Router Machine, development, production, operation, export and service.

We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for extension. ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products. 3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.

Our philosophy: Professional, Efficienct, Loyal,

Our mission: To creat core vlaue for our customer, our staff and our company.

Choose Hezhi,Get factory price and reliable Woodworking Machinery!

1. What is your company positioning?

HEZHI MACHINERY, dedicated to precision equipment manufacturing. Intelligent manufacturing, innovation sharing.

2. How do you do quality control?

HEZHI MACHINERY develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process. 45 inspection and testing items, 632 quality control points, 48-hour high-speed full-stroke load processing test. Germany's ZEISS three-coordinate-measuring instrument, Britain's RENISHAW laser interferometer and other world-quality precision testing equipment are used to ensure the precise control of machine tool details.

3. What is your market advantage?

We provide not only machine tools, but one-stop solutions for machine tools.

4. Do you have after-sales service, and how to do it?

The whole machine is guaranteed for 1 years, and the service is responded immediately. we will actively and promptly solve problems for users as appropriate, and provide technical service support through telephone and video. If necessary, they will go to the customer site for on-site service.

5.What's the trade assurance?

When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products(as you stated in the purchase order).If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee. Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us. it can guarantee your interests.
