Quick Details
-
Radius of spherical tip:
-
25mm±1mm
-
Rigidity of tension spring:
-
785N/M
-
Standard impact energy:
-
2.207±0.1J (0.225Kgf.m)
-
The static friction of pointer slider:
-
0.65N±0.15N
-
Dimensions:
-
54*280mm
-
Net weight:
-
about1.0Kg
-
Working Humidity:
-
≤90%RH
-
Type:
-
ZC3-A concrete test schmidt hammer , sclerometer
-
Measuring Range:
-
10~70Mpa
Quick Details
-
Power:
-
Mechanical
-
Place of Origin:
-
Hebei, China
-
Usage:
-
Hardness Tester
-
Radius of spherical tip:
-
25mm±1mm
-
Rigidity of tension spring:
-
785N/M
-
Standard impact energy:
-
2.207±0.1J (0.225Kgf.m)
-
The static friction of pointer slider:
-
0.65N±0.15N
-
Dimensions:
-
54*280mm
-
Net weight:
-
about1.0Kg
-
Working Humidity:
-
≤90%RH
-
Type:
-
ZC3-A concrete test schmidt hammer , sclerometer
-
Measuring Range:
-
10~70Mpa
Portable Concrete Rebound Hammer Tester NDT Resiliometer Schmidt Hammer B
Introduction:
The meter is in accordance with technical regulation of JGJ/T23-2001, used for testing of concrete compressive strength within the scope of 10-60Mpa, with the system standard energy of 2.207J, and value indicating system of pointer direct reading. Our concrete resiliometer has been approved as "Recommended Product for Engineering Construction" by the Ministry of Construction. Shanxi Institute of Building Research, who composed "Testing Concrete Compressive Strength Technical Regulation of JGJ/T23-2001 with Springback Method", supervises the manufacturing process.
Characteristic:
Light (saving 2/3 forces compared with counterpart products), flexible, inexpensive, power-free,easy to master;
the button applies stretching technics and is not easy to fall off; the pointer is easy to adjust friction.
Therefore, it is the first choice applicable for on-the-spot NDT.
Parameter:
Length of pointer: 20.0±0.2(mm)
Friction of pointer: 0.65±0.15(N)
Sphere semidiameter at the end of the flip rod: 25±1.0(mm)
Rigidity of flip tensioned spring: 785.0±40.0(N/m)
Location of flip hammer's hook release: "100" at the scale mark
Work length of flip tensioned spring: 61.5.0±0.3(mm)
Strike length of flip hammer: 75±0.3
Hop location of the flip hammer: "0" at the graduated scale
Fixed value of steel anvil: 80±2 (our products are controlled between 80-81)

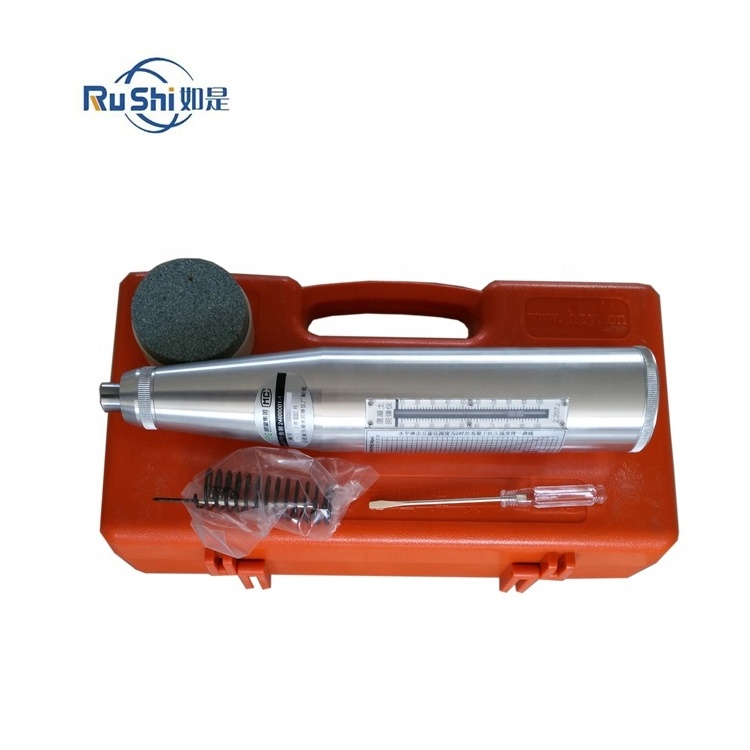

Package include:
A resiliometer
Grindstone
Flip tension spring
Buffer spring
Screwdriver
Instruction
1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d.We will give your professional guidance (Product introduction and operation manual) together with product .
2. After Service:
a.One year guarantee for whole machine.
b.24 hours technical support by email
c.If there is any problem found of the machine, we will repair it for free in one year.
d.Honesty to working for you, after or before sale with our patient and sincerit
Frequently Asked Question:
Q1.Are you trade company or factory?
A:We are trade company but we also have own factories. Building trade company is just for exporting various types of concrete mould and others products.
Q2. How to visit your company
1. Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2. Fly to ShangHai Airport: By high speed train from Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick you up.
Q3:After an order is placed, when to deliver?
A:Generally about 7-20days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q4:What about the warranty with after - sales services?
A:, We can help you repair your equipment freely.,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q5:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. Products are widely recognized and trusted by users.
Our company can also produce the customized testing machines as clients' requirements.
Best service and the best price for you.
