- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1150*1250*1700mm
-
Weight:
-
150 kg
Quick Details
-
Max. Capacity:
-
500 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Diyat
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1150*1250*1700mm
-
Weight:
-
150 kg
Products Description

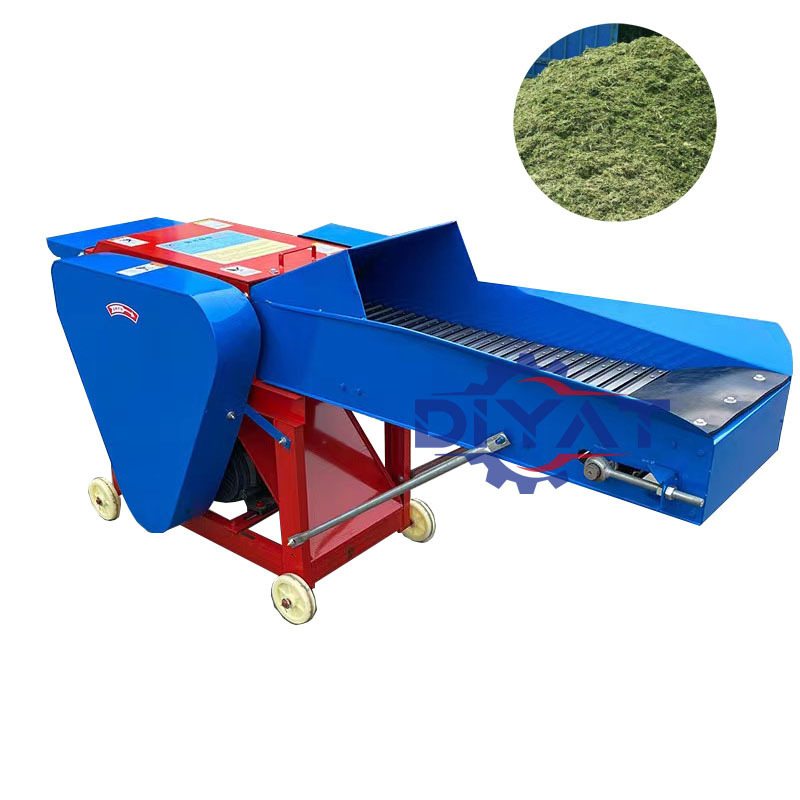

Agricultural farm chaff cutting machine
The
machine can cut corn straw, yellow bamboo grass, sugarcane head, straw bean straw, wheat straw, peanut seedlings and other kinds of dry and wet forage with a wide range of application, through the interaction of the blade, hammer and kneading board, the rough and hard straw is processed into a fine wire without hard joints, to achieve the purpose of fine processing
Product Paramenters
|
model
|
ZCJ-3000
|
ZCJ-5000
|
ZCJ-8000
|
|
Matching motor
|
Motor 4KW
|
Motor 5.5KW
|
Motor 7.5kw
|
|
Matching diesel engine
|
7HP diesel engine
|
12HP diesel engine
|
15HP diesel engine
|
|
Motor speed (r/min)
|
1440
|
1440
|
1440
|
|
Blade speed(r/min)
|
800
|
800
|
650
|
|
Number of blades
|
4
|
4
|
4
|
|
transfer method
|
B1650 triangle belt 3
|
B1800 triangle belt 3
|
B2150 triangle belt 3
|
|
Size (mm)
|
1150*1250*1700
|
1737*1575*2315
|
2147*1600*2756
|
|
Weight (kg)
|
150
|
300
|
420
|
|
Output (t/h)
|
3
|
5
|
8
|
Details Images
advantage of chaff cutting machine
1.steel frame, small size, light weight, convenient action.
2. the design of safety device, prevent the gnawing accident, the whole machine is safe and reliable.
3, automatic feeding, conveyor chain does not wrap the grass, feed the grass smoothly.
4. supporting a variety of power, motor, diesel engine, tractor can be matched.
5.the blade is made of high quality steel, refined by special process, super wear-resistant.
2. the design of safety device, prevent the gnawing accident, the whole machine is safe and reliable.
3, automatic feeding, conveyor chain does not wrap the grass, feed the grass smoothly.
4. supporting a variety of power, motor, diesel engine, tractor can be matched.
5.the blade is made of high quality steel, refined by special process, super wear-resistant.
Multifunctional Chaff Cutter Machine --Motor type , gasoline type
