Quick Details
-
Warranty:
-
6 mouth
-
Brand Name:
-
AHONY or OEM
-
Model Number:
-
eMobi F5TC
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
190*260*14mm
-
Product name:
-

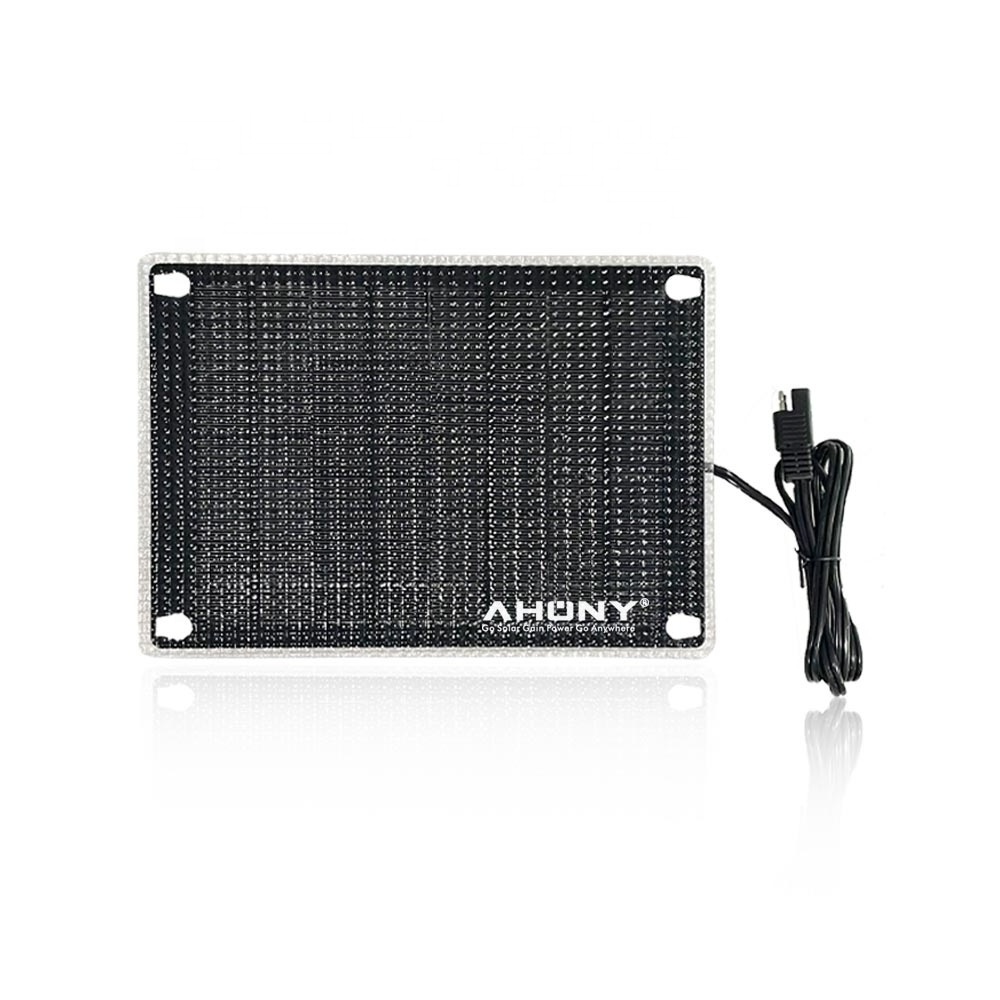

Solar trickle charger battery maintainer
-
Backing Color:
-
black
-
Connector:
-
SAE connector
-
Jbox:
-
IP65
-
Certificate:
-
CE ROHS ISO
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
6 mouth
-
Brand Name:
-
AHONY or OEM
-
Model Number:
-
eMobi F5TC
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
190*260*14mm
-
Product name:
-
Solar trickle charger battery maintainer
-
Backing Color:
-
black
-
Connector:
-
SAE connector
-
Jbox:
-
IP65
-
Certificate:
-
CE ROHS ISO
- The 4.5W Solar Car Battery Charger will generate current to trickle charge the battery that prevent the loss current of the battery in storage or standby process
- It has built-in blocking diode to prevent reverse charging and battery reverse discharging
- Charging through the cigarette lighter plug: it is not necessary to open the hood of the car, you can directly use the cigarette lighter plug to charge the car battery
- Perfect solution for charging the batteries of car, motorcycles, automobiles, snowmobiles, tractors and more by solar when the battery is power shortage, maintaining the battery effect, extending its usage life
- Package: 10W car battery charger, cigarette lighter plug, clip line, suction cupds. If you have any other problems, please contact us, we will provide the best quality service
| Model No. | eMobi F5TC | |||
| Product Name | Solar trickle charger battery maintainer | |||
| Maximum Power[Wp] | 5 | |||
| Solar Cell | A grade mono perc cell | |||
| Cell Efficiency | 21.30% | |||
| Size[mm] | 190*260*14mm | |||
| Size[inch] | 7.5*10.2*0.55 | |||
| Max Power Voltage Vmp[V] | 18.7 | |||
| Max Power Current Imp[A] | 0.24 | |||
| Open Circuit Voltage Voc[V] | 22.07 | |||
| Short Circuit Current Isc[A] | 0.26 | |||
| Power tolerance[%] | ±5% | |||
| NOCT[℃] | 45±2 | |||
| Operating Temperature[℃] | -40/+85 | |||
| Suface/backsheet | ETFE+fibreglass plate | |||
| Jbox | Jbox IP65,1pcs blocking diode | |||
| cable 1 | 1pcs*1m+SAE connector | |||
| cable 2 | 1pcs*SAE+0.5m+male cigarette lighter | |||
| cable 3 | 1pcs*SAE+0.5m+alligator cable | |||
| cable 4 | 1pcs*SAE+0.5m+ring terminal cable | |||
| Suction Cup | 4pcs | |||
| Certification | CE ROHS | |||
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C | |||
| Net.Weight[kg/lbs] | 0.52/1.14 | |||
| G.W[kg/lbs] | 0.7/1.54 | |||
