Quick Details
-
Model Number:
-
G7-H3
-
Product name:
-
RF Temperature Humidity measuring instruments wireless sensor
-
Type:
-
Room Temperature Thermostat
-
Humidity Range:
-
1 ~ 100%RH (+/- 1% )
-
RF Wireless:
-
433 MHz, 4.8Kbit/s
-
Wireless Distance:
-
1200 meter (unblock)
-
Certificate:
-
CE ROHS
-
Battery Life:
-
Average 1~2 year
-
Operating Voltage:
-
5 ~ 20V DC
-
Dimension:
-
80 x 80 x 28 mm/70 x 65 x 35 mm
-
Network Port:
-
10/100M Ethernet
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Hong Kong S.A.R.
-
Brand Name:
-
EASEMIND
-
Model Number:
-
G7-H3
-
Product name:
-
RF Temperature Humidity measuring instruments wireless sensor
-
Type:
-
Room Temperature Thermostat
-
Humidity Range:
-
1 ~ 100%RH (+/- 1% )
-
RF Wireless:
-
433 MHz, 4.8Kbit/s
-
Wireless Distance:
-
1200 meter (unblock)
-
Certificate:
-
CE ROHS
-
Battery Life:
-
Average 1~2 year
-
Operating Voltage:
-
5 ~ 20V DC
-
Dimension:
-
80 x 80 x 28 mm/70 x 65 x 35 mm
-
Network Port:
-
10/100M Ethernet
RF Temperature Humidity measuring instruments wireless sensor

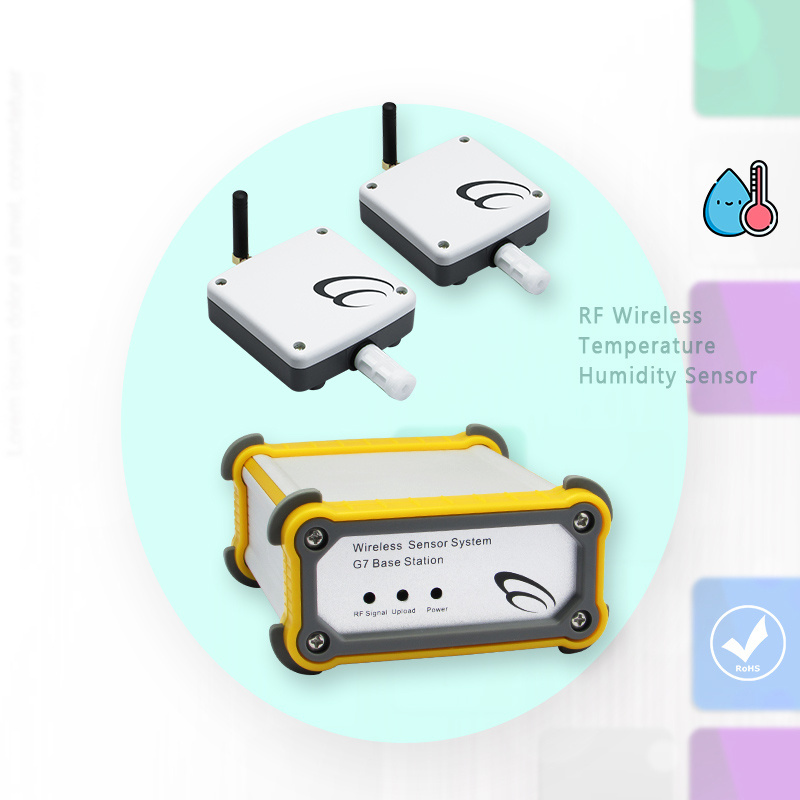

G7-H2, G7-H3 Wireless Temperature Humidity Sensor System
With G7 temperature humidity wireless sensor and Base Station, you can start monitoring your premises environmental condition online.
Wireless sensor G7 transmits measurement to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.
G7-Centre App receives data from Base Station over Internet or LAN.
G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how environmental changes, you can adjust your air conditioner or heater to save energy and money.
Model: G7-H2, G7-H3
[Product Name_1] Temperature Humidity Wireless Sensor
[Product Name_2] Wireless Temperature Humidity Sensor
[Product Name_3] Multipoint Wireless Temperature Humidity Gateway
[Product Name_4] Industrial Wireless Temperature Humidity Sensor System
[Product Name_5] RF Wireless Temperature Humidity Sensor
[Product Name_6] Radio Wave Wireless Temperature Humidity Sensor
[Product Name_7] Wireless Temperature Humidity Gateway
[Product Name_8] Wireless Temperature Humidity Sensor System
[Product Name_9] 64 Channels Wireless Temperature Humidity Sensor
[Product Name_10] 1200m Wireless Temperature Humidity Sensor
[In the Package]
1 x Base Station & RF Antenna
1 x AC/DC Adaptor
1 x Ethernet Cable
Up to 64 x Wireless Sensors in one single system
[How it Works]
(1) Wireless Sensor
The sensor transmits the temperature or humidity reading to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.
* G7-T2/TX Wireless Temperature Sensor
* G7-H2/H3 Wireless Temperature Humidity Sensor
* G7-T2/TX-Ex Wireless Temperature Sensor [Extended Power]
* G7-H2/H3-Ex Wireless Temperature Humidity Sensor [Extended Power]
* G7-AD Wireless Analog Sensor
* G7-D2 Wireless Digital Alarm Input
(2) Base Station
It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. This station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.
(3) G7 Wireless Client App for Windows, iPad, Android
By using free G7 Client Lite, users receive data from Base Station over LAN or Internet. Data will be saved into file for future analysis and displayed in graphics with live alarm alert.
[Technical Specification]
|
G7 |
Wireless Sensor |
|
Temperature Range: |
-55 ~ 125 °C (+/- 0.5°C ) |
|
Humidity Range: |
1 ~ 100%RH (+/- 1% ) |
|
Transmission Interval: |
User Programmable 5s ~ 4 hours |
|
Sensor ID: |
Unique 8 digits |
|
RF Wireless: |
433 MHz, 4.8Kbit/s |
|
RF Power: |
10dBm |
|
Wireless Distance: |
1200 meter (unblock) |
|
Operation Rating: |
80mA (data transmission) |
|
Standby Rating: |
~3.0uA (sleep mode) |
|
Operating Voltage: |
2.6~3.6V DC |
|
Battery Life: |
Average 1~2 year |
|
Dimension: |
80 x 80 x 28 mm |
|
Extended Battery Life: |
Average 4~5 years |
|
Dimension: |
115 x 90 x 55 mm |
|
Base Station |
|
|
Protocol: |
Active TCP |
|
|
Modbus TCP |
|
Network Port: |
10/100M Ethernet |
|
Data Packet: |
Instant on incoming data of connected sensors |
|
RF Wireless: |
433 MHz, 4.8Kbit/s |
|
RF Address/Band: |
255/15 |
|
Operating Voltage: |
5 ~ 20V DC |
|
Rating: |
< 130mA |
|
Operating Temperature: |
-35 ~ 75 °C |
|
Dimension: |
70 x 65 x 35 mm |
[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via Wi-Fi
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
Software
(1) Setup Software
Free and User-Friendly Setup Software for Windows provides a user-friendly graphics interface of configuring the Smart Data Logger.
It allows user to save, export and import the configuration file.
(2) Centre Software
Free Centre Software is a small tool to receive data via GPRS, Ethernet or Wi-Fi for testing purpose.
(3) NET Client App for Windows, iPad, Android
Free NET Client accesses the live data or logged data from Smart Data Logger directly. It then displays the sensor readings in graphics modes on PC, iPad or Android tablet.
It allows user to monitor the real time sensor reading in graphics chart or HMI.
(4) Ultimate Server Client Software Package [Optional]
Ultimate Server is designed to manage a large number of Smart Data Loggers. It handles the data receiving via GPRS, Ethernet, Wi-Fi and SMS in both UDP and TCP protocol simultaneously. It manages the database of incoming data, data loggers and remote client users.
Ultimate Client allows user to monitor both real time data and historical data in graphics chart or HMI.
