Quick Details
-
Voltage:
-
380v
-
Power:
-
5500w
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
1130*850*1850mm
-
Year:
-
2024
-
Product name:
-
fruit hammer crusher
-
Function:
-
crush fruit into paste
-
Capacity:
-
5000kg/h
-
Kw:
-
5.5kw
-
Material:
-
Stainless Steel 304
-
After Warranty Service:
-
1 year
-
Apply to:
-
apple peach carrot onion
-
machine size:
-
1200*800*1500mm
-
machine weight:
-
600kg
-
MOQ:
-
1set
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aslan machinery
-
Type:
-
crusher
-
Voltage:
-
380v
-
Power:
-
5500w
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
1130*850*1850mm
-
Year:
-
2024
-
Product name:
-
fruit hammer crusher
-
Function:
-
crush fruit into paste
-
Capacity:
-
5000kg/h
-
Kw:
-
5.5kw
-
Material:
-
Stainless Steel 304
-
After Warranty Service:
-
1 year
-
Apply to:
-
apple peach carrot onion
-
machine size:
-
1200*800*1500mm
-
machine weight:
-
600kg
-
MOQ:
-
1set

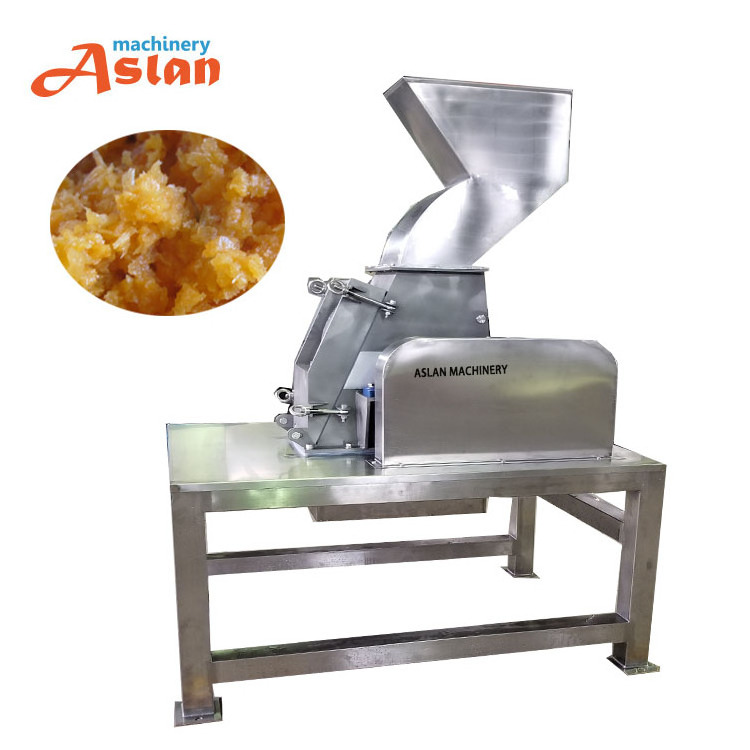

carrot/apple/pear hammer type crusher grinder
This type fruit hammer crusher is a fruit and vegetable crushing machine designed by our company for surveying and mapping, which has the current international advanced level. It has a novel and compact structure, and is energy-saving
Machine Advantages
:high efficiency, large production capacity, and wide applicability;
Working principle:
The main working component is the rotor with a hammer (also known as the hammer head). The rotor is composed of a spindle, a disc, a pin, and a hammer.The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feeding port and is crushed by the impact, shearing, and grinding effects of a high-speed hammer. At the lower part of the rotor, there is a sieve plate, and the particles smaller than the sieve hole size in the crushed material are discharged through the sieve plate. The coarse particles larger than the sieve hole size are retained on the sieve plate and continue to be hit and ground by a hammer, and finally discharged out of the machine through the sieve plate. The adjustment of discharge particle size is achieved by replacing different specifications of sieve plates. The gap between the rotor and the sieve plate can be adjusted through an adjustment mechanism as needed;The contact part between the equipment and materials is made of stainless steel and food grade nylon plate, and the sealing element is food grade rubber.
fruit hammer grinder machine technical parameter:
|
Model |
capacity |
Motor |
Machine size |
Machine weight |
|
CPJ-2 |
2T/H |
3.0KW |
1000*600*1500MM |
300KG |
|
CPJ-5 |
5T/H |
5.5KW |
1130*850*1850MM |
600KG |
|
CPJ-10 |
10T/H |
11KW |
1280*1100*2035MM |
800KG |
|
CPJ-20 |
20T/H |
22KW |
1830*1100*2500MM |
1000KG |
fruit hammer grinder photo:
