Quick Details
-
Model Number:
-
H2601
-
Accuracy:
-
0.5%F.S
-
Pressure range:
-
0 ~ 100MPA optional
-
Configuration method:
-
Local USB / remote configuration
-
Working power:
-
3.6V,19Ah (Can be replaced by yourself)
-
Battery Life:
-
6 years (send data every hour)
-
Display:
-
2.4 inch large size LCD screen
-
Network format:
-
NB-IOT/GPRS/4G/Lora
-
SIM Card:
-
Built-in SIM card
-
Certificate approving:
-
CE, RoHS, Ex d IIB T6 Gb
Quick Details
-
Warranty:
-
12 months, One year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Holykell
-
Model Number:
-
H2601
-
Accuracy:
-
0.5%F.S
-
Pressure range:
-
0 ~ 100MPA optional
-
Configuration method:
-
Local USB / remote configuration
-
Working power:
-
3.6V,19Ah (Can be replaced by yourself)
-
Battery Life:
-
6 years (send data every hour)
-
Display:
-
2.4 inch large size LCD screen
-
Network format:
-
NB-IOT/GPRS/4G/Lora
-
SIM Card:
-
Built-in SIM card
-
Certificate approving:
-
CE, RoHS, Ex d IIB T6 Gb
Products Description

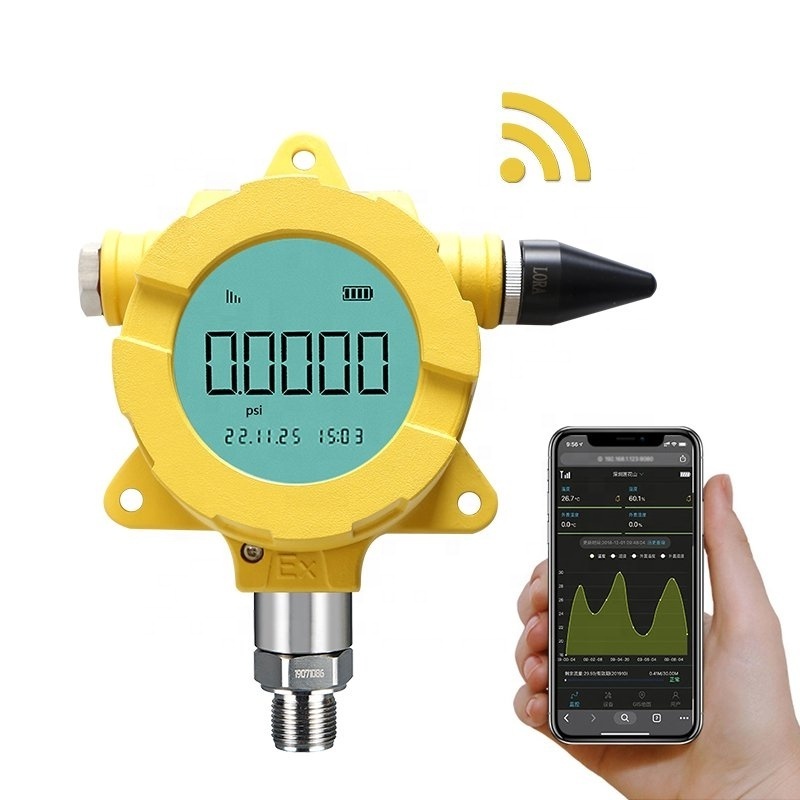

The wireless pressure transmitter uses a large-capacity lithium battery to provide a stable and reliable power supply for the product, enabling it to operate safely for more than 5 years(uploaded once an hour). The self-developed low-power system can not only provide users with on-site data through the LCD screen, but also upload data through the wireless module, and even graft the data to the user's own cloud platform. The powerful control algorithm enables the instrument to have signal breaks, Transmission, working mode automatic switching, pressure fluctuation real-time alarm, one-click wake-up and other practical functions.
Product Parameter
|
Pressure Range
|
0 ~ 100MPA optional
|
|
Configuration method
|
Local USB / remote configuration
|
|
Working power
|
3.6V,19Ah (Can be replaced by yourself)
|
|
Battery Life
|
6 years (send data every hour)
|
|
Power consumption
|
Normal work 70mA sleep is less than 0.1mA, data sending and receiving 330mA
|
|
Display
|
2.4 inch large size LCD screen
|
|
Network format
|
NB-IOT/GPRS/4G
|
|
Antenna
|
External waterproof antenna
|
|
SIM Card
|
Built-in SIM card
|
|
Sampling interval
|
1 time / min
|
|
Wake-up mode
|
Buttons, timing, USB
|
|
Upload information
|
Pressure, temperature, signal, battery power
|
|
Working temperature
|
-30℃~+70℃(Medium does not crystallize)
|
|
Accuracy
|
0.5
|
|
Temperature influence
|
0.015%F.S/℃
|
|
Waterproof level
|
Normal IP66/Explosion-proof type IP68
|
|
Weight
|
Normal 0.55kg/ Explosion-proof type 1.5kg
|
|
Installation
|
Vertical and horizontal installation
|
|
Certificate
|
CE, RoHS, Ex d IIB T6 Gb
|
Product Details
Product Feature
Application
Smart wireless pressure transducer is widely used in fire water system, tap water supply network, gas, fire pipe network, drainage pipe network, air conditioning water cooling system and other fields.
