Quick Details
-
HP:
-
60-220
-
Spread width:
-
8-15M
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
tiande
-
Weight:
-
3000 KG
-
HP:
-
60-220
-
Spread width:
-
8-15M
Products Description

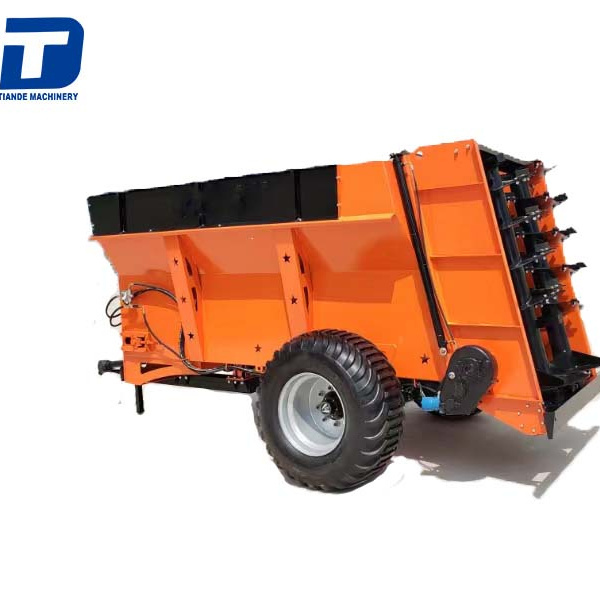

2FGH-S series double vertical Skein spouter is used for spouting all kinds of dry and wet manure, especially sticky and wet manure with high water content and bulk manure. It can make the scattering have better crushing and spreading effect. The machine is driven by the tractor traction, the fertilizer is directly collected by the fertilizer conveying system of the fertilizer scattering car, and the fertilizer is fully broken and evenly scattered, and the conveyor chain inside the car is automatically transported backward, and the fertilizer conveying speed can be adjusted; The fertilizer throwing system is driven by the tractor hydraulic output power, driven by the tractor rear power output shaft, and the fertilizer is broken and evenly thrown out by the high-speed rotating double vertical screw stranding device, and the fertilizer application amount can be adjusted. The fertilizer spouter is suitable for manure and organic fertilizer spouting operations in large farms, pastures, grasslands and other places, which can achieve large-scale unified and efficient fertilization operations, reduce labor intensity, improve fertilization efficiency, save costs, and achieve various economic benefits.
product Details
Product Paramenters
|
Model
|
Net volume of the tank
|
HP
|
Machine size (L x W x H)
|
Spread width
|
|
2FGH-6S
|
6m³
|
60-80HP
|
5300x2500x2500mm
|
8-15m
|
|
2FGH-8S
|
8m³
|
80-130HP
|
5820x2615x2620mm
|
8-15m
|
|
2FGH-10S
|
10m³
|
100-160HP
|
7260x2615x2620mm
|
8-15m
|
|
2FGH-12S
|
12m³
|
120-200HP
|
7520x2615x2930mm
|
8-15m
|
|
2FGH-16S
|
16m³
|
150-220HP
|
8000x2900x3280mm
|
10-17m
|
Product Features
1. Double vertical helical stranding device, driven by imported quality triplet transmission gear box, equipped with overload protection, stable performance, strong reliability, good effect for viscous and wet manure, large manure crushing and spreading.
2, fertilizer conveying chain row device, driven by imported quality reducer gearbox, large torque, stable performance, long service life.
3, precision speed control valve design, fertilizer delivery chain speed can be adjusted to meet different broadcast needs.
4. Large flux fertilizer gate design, smooth fertilizer production without blockage during use, and can control the amount of fertilizer according to the needs of use.
5. Fertilizer conveyor chain and other components increase safety protection devices and anti-reverse function to avoid damage caused by human and external factors
6. Fertilizer conveyor chain, scraper, etc., all adopt heavy structural design, and the reliable performance is further improved.
The car is equipped with spring steel plate shock absorption system, which can adapt to the harsh soil conditions and fertilization operation, and the safety factor is high.
