- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-901
-
Product name:
-
Clamping Force Testing Machine for Headphone
-
Test station:
-
1 station
-
Load accuracy:
-
±0.5%
-
Load capacity:
-
20Kg
-
Unit switching:
-
kgf.N.lpf
-
Minimum displayed force value:
-
0.01kg
-
Hanging column test spacing range:
-
40-300mm
-
Machine size:
-
530*430*510mm
-
Machine weight:
-
25Kg
-
Power supply:
-
AC~220V 50Hz
Quick Details
-
Warranty:
-
14 Month
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-901
-
Product name:
-
Clamping Force Testing Machine for Headphone
-
Test station:
-
1 station
-
Load accuracy:
-
±0.5%
-
Load capacity:
-
20Kg
-
Unit switching:
-
kgf.N.lpf
-
Minimum displayed force value:
-
0.01kg
-
Hanging column test spacing range:
-
40-300mm
-
Machine size:
-
530*430*510mm
-
Machine weight:
-
25Kg
-
Power supply:
-
AC~220V 50Hz
Product Description

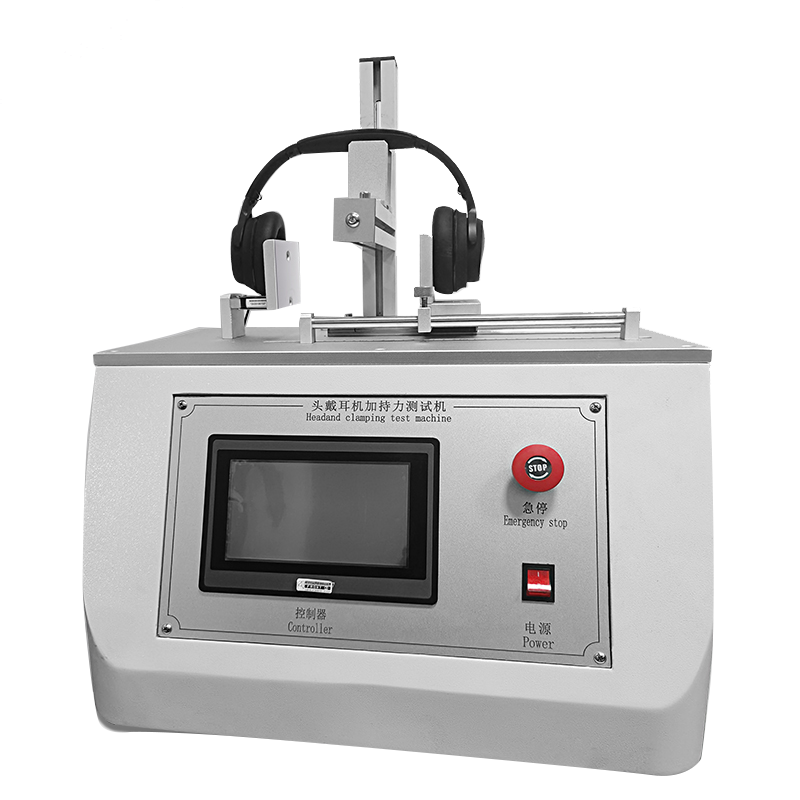

Headphone Clamping Force Testing Machine
Product Description
This machine is suitable for performance testing such as headphone clamping force. It is specially used to measure the opening and shrinking clamping force of the headset, and can accurately analyze the relationship between the opening and shrinking distance of the headset and the force to provide a correct basis for product development and design.
Specification
|
Test station
|
1 station
|
|
Load accuracy
|
±0.5%
|
|
Load capacity
|
20Kg
|
|
Unit switching
|
kgf.N.lpf
|
|
Minimum displayed force value
|
0.01kg
|
|
Hanging column test spacing range
|
40-300mm
|
|
Machine size
|
530×430×510mm
|
|
Machine weight
|
25Kg
|
|
Power supply
|
AC～220V 50Hz
|
Compliant with standards:
GB/T6832-1986, GB/T14471-1993 Headphone measurement method.
Packing & Delivery
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
