Quick Details
-
Ejector Force(kN):
-
10 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
200 g/s
-
Injection Weight (g):
-
100 g
-
Screw diameter (mm):
-
100 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
110*110
-
Weight (KG):
-
610 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
10 mm
-
Model Number:
-
3
-
Power (kW):
-
6 kW
-
Applicable Industries:
-
Other
-
Warranty of core components:
-
Other
-
Produc Name:
-

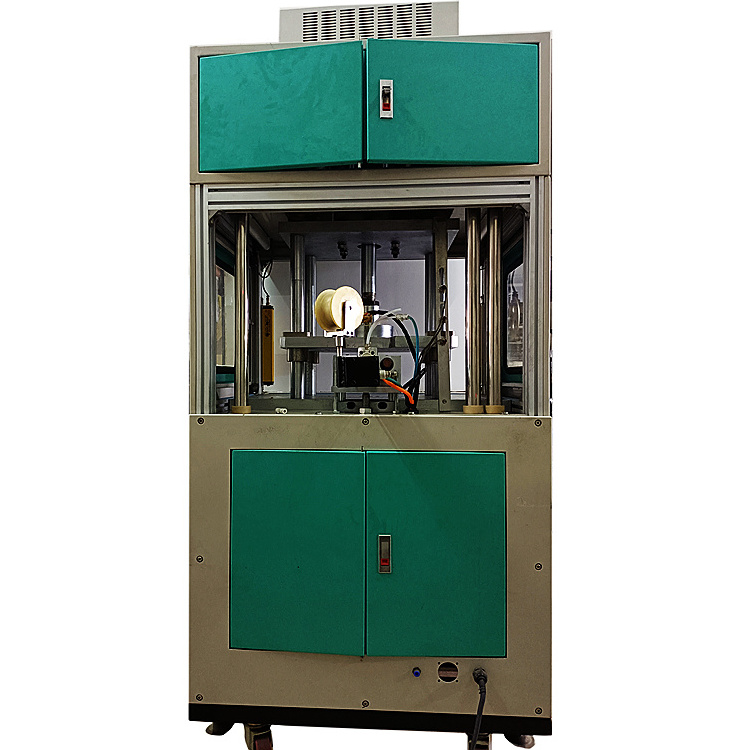

Low pressure injection Machine
-
Plastic Type:
-
Thermoplastic
-
Power:
-
6KW
-
Weight:
-
610KG
-
Melting tank:
-
( 5 liter )x1 or 2 optional
-
Electricity:
-
200-240 VAC / 1 phase /50 or 60 Hz
-
Temperature range:
-
70℃ - 260℃
-
Working pressure:
-
0.5 Mpa - 0.8 Mpa
-
Marketing Type:
-
Other
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
900mm
-
Distance between Tie Bars(Height)(mm):
-
1900mm
-
Ejector Stroke(mm):
-
125 mm
-
Ejector Force(kN):
-
10 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
200 g/s
-
Injection Weight (g):
-
100 g
-
Screw diameter (mm):
-
100 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
110*110
-
Weight (KG):
-
610 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
10 mm
-
Model Number:
-
3
-
Power (kW):
-
6 kW
-
Applicable Industries:
-
Other
-
Warranty of core components:
-
Other
-
Produc Name:
-
Low pressure injection Machine
-
Plastic Type:
-
Thermoplastic
-
Power:
-
6KW
-
Weight:
-
610KG
-
Melting tank:
-
( 5 liter )x1 or 2 optional
-
Electricity:
-
200-240 VAC / 1 phase /50 or 60 Hz
-
Temperature range:
-
70℃ - 260℃
-
Working pressure:
-
0.5 Mpa - 0.8 Mpa
-
Marketing Type:
-
Other
Products Description
Specification
|
Size
|
1300x950x1900 mm
|
|
Weight
|
610kg
|
|
Work station high
|
850 mm
|
|
Plant view
|
1700X1300 mm
|
|
Packing size
|
1400x1050x1950 mm, Packing weigh t660 kg
|
|
Melting tank
|
( 5 liter )x1 or 2
|
|
Gun & Tip Angle
|
(36.40 600 900 )
|
|
Electricity
|
200-240 VAC / 1 phase /50 or 60 Hz
|
|
Temperature Control Zones
|
5
|
|
Temperature range
|
700C-2600C
|
|
Max power (kw)
|
6 kw
|
|
Working pressure
|
0.5 Mpa -0.8 Mpa
|
|
Air consumptiom
|
0.18m3/min
|
|
Clamping device
|
pneumatic
|
|
Clamping force
|
Max 12 ton
|
|
Clamping stroke
|
150 mm
|
|
Control system
|
touch screen
|
|
Standard mold set size (mm)
|
230x120x150(25kg)
|
|
Max mold set size (mm)
|
300x120x150 mm
|
|
Max part size (mm)
|
100x90x18 mm
|
