Quick Details
-
Product name:
-
Gate valves
-
Body material:
-
Ductile Iron
-
Connection:
-
Flange ends
-
Certificate:
-
ISO9001, ISO14001, CE, SIL, etc.
-
Size:
-
Standard Size
-
Color:
-
Blue
-
Standard or Nonstandard:
-
Standard
-
Medium:
-
Base Oil Water Gas
-
Standard:
-
ASTM BS DIN ISO JIS
-
Brand:
-
OEM Service
Quick Details
-
Port Size:
-
DN50~DN1200, 2 in~48 in
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GTF, Accept brand logo
-
Product name:
-
Gate valves
-
Body material:
-
Ductile Iron
-
Connection:
-
Flange ends
-
Certificate:
-
ISO9001, ISO14001, CE, SIL, etc.
-
Size:
-
Standard Size
-
Color:
-
Blue
-
Standard or Nonstandard:
-
Standard
-
Medium:
-
Base Oil Water Gas
-
Standard:
-
ASTM BS DIN ISO JIS
-
Brand:
-
OEM Service

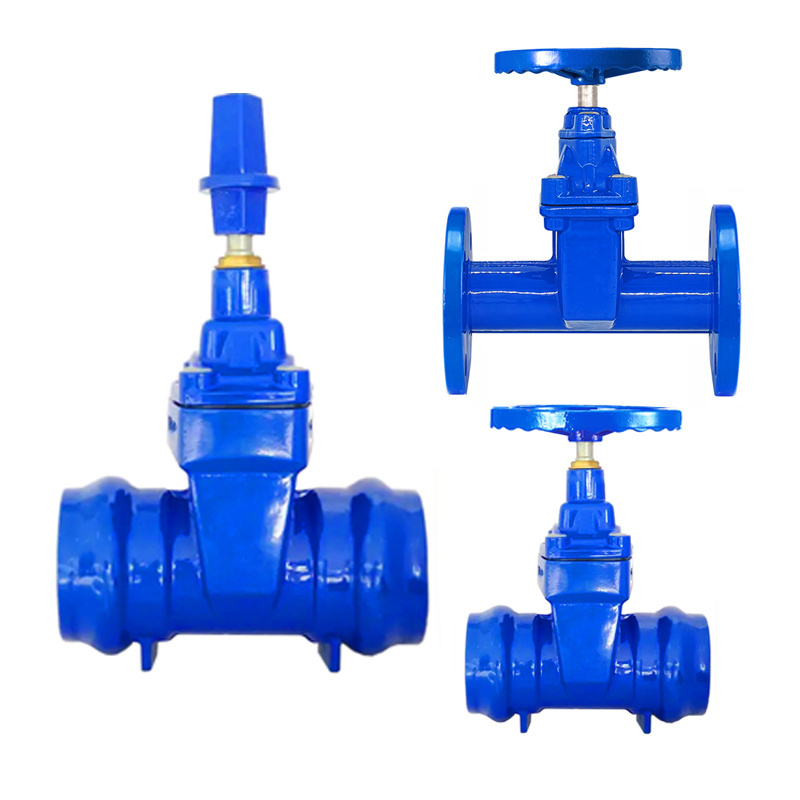

Products Description
|
Name
|
Gate valve
|
|
Type
|
Non rising stem, Rising stem
|
|
Standard
|
DIN 3352-F4, DIN 3352-F5, BS5163, BS5150, AWWA C509, AWWA C515, MSS SP-70, JIS
|
|
Class
|
PN10, PN16, CL125, CL150, 10K, 16K
|
|
Size
|
DN50(2 inch)~DN1200(48 inch)
|
|
Material
|
Body and Bonnet: ductile iron or cast Iron
Disc : ductile iron +EPDM/NBR or metal seated Stem: SS 420 or SS 304 or SS 316, accept customization Bolt and Nuts : carbon steel with zinc plated or SS 304, SS 316 |
|
Connection
|
Flanged End, Socked End etc.
|
|
Coating
|
Internal and external with epoxy coating min 250μm
|
|
Application Medium
|
Basic water, oil and gas etc.
|
|
Application Temperature
|
-10~+120℃ (EPDM), -10~+80℃ (NBR), -10~+200℃ (metal seated)
|
Applicable Standards:
Germany Standard:
Design and manufacturing: DIN 3352
Class: PN10, PN16
Face to face
:
DIN 3202-F4(ISO 14 series); DIN
3205-
F5( ISO 15 series)/
DIN EN558-1
Flange drilling:
EN 1092
British Standard:
Design and manufacturing:
BS 5163, BS 5150
Class: PN10, PN16
Face to face:
BS 5163 (ISO 3 series, ISO 19 series)
Flange drilling: BS 4504, EN 1092
Flange drilling: BS 4504, EN 1092
American Standard:
Design and manufacturing:
ANSI/AWWA C509,
ANSI/AWWA
C515
Class: CL125, CL150
Face to face:
ASME B16.10(ISO 3 series)
Flange drilling: ANSI B16.42
Flange drilling: ANSI B16.42
Japanese Standard:
Design and manufacturing: JIS
Class: 10K/16K
Face to face: JIS B2002
Flange drilling: JIS B2239, JIS B2212
Face to face: JIS B2002
Flange drilling: JIS B2239, JIS B2212
