Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
drum size: Dia. 1.5*4.5 m
-
Weight:
-
6900 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training
-
Usage:
-
Minerals ,stone and sand washing and gold extracting
-
Stone washing Machine:
-
Special equipment for viscous ore
-
Gold washing equipment:
-
For mud washing and classification
-
Mining equipment:
-
For mineral particle washing
-
Alluvial, gold washing machine:
-
Open Mine Viscous Ore Remove Clay Special Equipment
-
Drum rotary scrubber:
-
Rotary scrubber
-
Application:
-
Clay, dust,sand, small and big stones washing
-
Installation:
-
Technical Guidance
-
Material:
-
Carbon Steel
-
Certification:
-
ISO, CE
Quick Details
-
Production Capacity:
-
70-120 t/h
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Yongsheng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
drum size: Dia. 1.5*4.5 m
-
Weight:
-
6900 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training
-
Usage:
-
Minerals ,stone and sand washing and gold extracting
-
Stone washing Machine:
-
Special equipment for viscous ore
-
Gold washing equipment:
-
For mud washing and classification
-
Mining equipment:
-
For mineral particle washing
-
Alluvial, gold washing machine:
-
Open Mine Viscous Ore Remove Clay Special Equipment
-
Drum rotary scrubber:
-
Rotary scrubber
-
Application:
-
Clay, dust,sand, small and big stones washing
-
Installation:
-
Technical Guidance
-
Material:
-
Carbon Steel
-
Certification:
-
ISO, CE

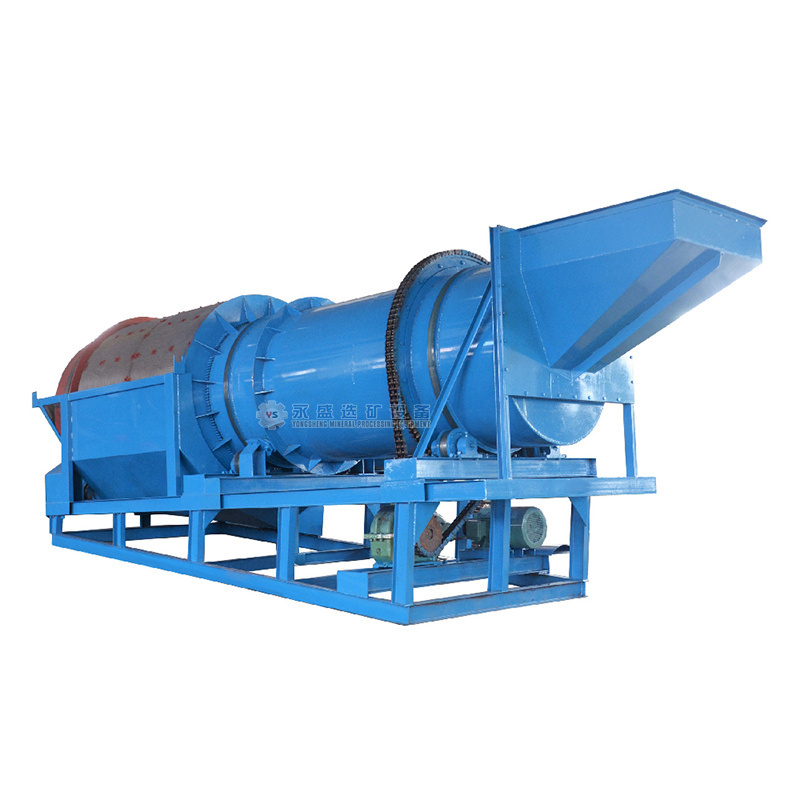

Open Mine Viscous Ore Remove Clay Special Equipment, Gold Mine Trommel Scrubber Washing Machine, Alluvial gold scrubber washer
The rotary scrubber is an autogenous rotating drum scrubber, utilizing pebbles and rocks within The feed source to fracture and disintegrate clays, Agglomerates and soft oxides. The scrubber spins slowly, similar to a giant washing machine. It churns The fines and oversize and water together, Vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist 's and rock. Disintegrated material is homogeneously slurried within the drum,Whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end, Slurry and washed oversize overflows the drum discharge throat to the concentric exitTrommels. This material is then passed on to the downstream process equipment which can be in various forms to the as centrifugal Concentrator, spiral chute, jig etc.
Application & Structure
The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the taaarget mineral is released. The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.
A: 1.30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 20-30 working days. However, many machince we have many in stock!
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be
extened.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
