Quick Details
-
Model Number:
-
i-7000MK II
-
Rated Power:
-
HF:240W MF:250W LF1:350W LF2:350W
-
Component:
-
HF:65ND@2 MF:10 inch 50ND LF1:12 inch 75ND
-
Impedance:
-
HF: 8Ω MF: 8Ω LF1:16Ω LF2: 16Ω
-
Dispersion:
-
80°*7°
-
Sensitivity:
-
HF: 108dB MF: 110 dB LF1: 108 dB LF2: 108 dB
-
Max. SPL:
-
136dB
-
Freq. Response:
-
HF:900-21KHz MF:238-2350Hz LF1:45-700Hz LF2: 45-700Hz
-
N.W:
-
49.5kg
-
Dimension (L x W x H):
-
1076*605*355.5mm
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOUTUM
-
Model Number:
-
i-7000MK II
-
Rated Power:
-
HF:240W MF:250W LF1:350W LF2:350W
-
Component:
-
HF:65ND@2 MF:10 inch 50ND LF1:12 inch 75ND
-
Impedance:
-
HF: 8Ω MF: 8Ω LF1:16Ω LF2: 16Ω
-
Dispersion:
-
80°*7°
-
Sensitivity:
-
HF: 108dB MF: 110 dB LF1: 108 dB LF2: 108 dB
-
Max. SPL:
-
136dB
-
Freq. Response:
-
HF:900-21KHz MF:238-2350Hz LF1:45-700Hz LF2: 45-700Hz
-
N.W:
-
49.5kg
-
Dimension (L x W x H):
-
1076*605*355.5mm
Product Description
i-7000MKII
product description:

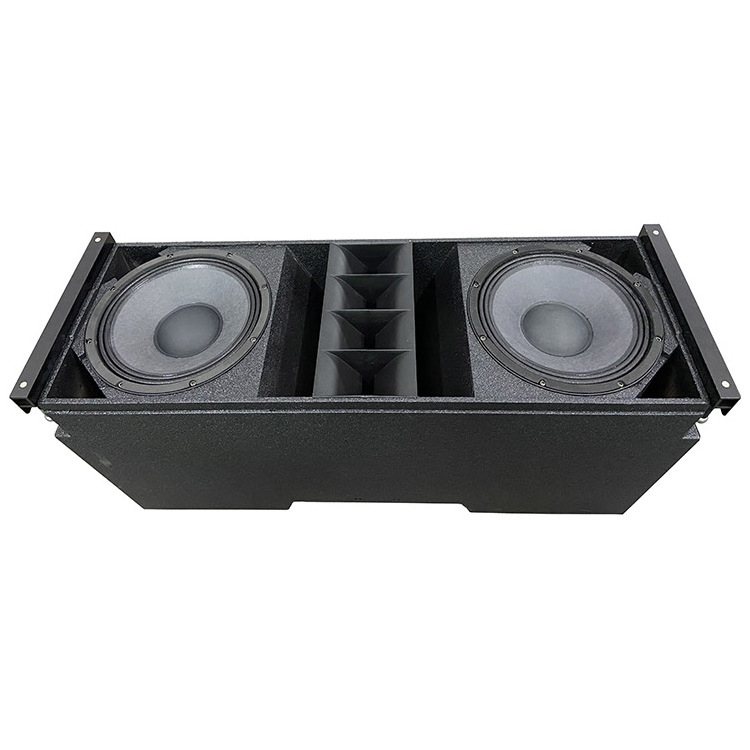

i-7000MKII is an external three-way line array speaker. It consists of dual 12-inch bass, 10-inch midrange, and dual 65mm
tweeters. The five units are all neodymium magnets, which are light weight and high power.
The speaker cabinet uses 15mm birch multilayer plywood, and the surface is coated with polyurea coating, which is waterproof and wear-resistant. The front side uses aluminum alloy diffractive ventilation grooves, stretch molding and CND processing, forming a front load effect, effectively controlling the air compression ratio, improving the sensitivity of the mid-frequency region, and the sound can spread farther.
The rear wiring part uses two 8-pins copper connectors, which are screw-locked and reliable. Each speaker needs 4 channels power amplifiers to drive. The LF1, LF2, MF, HF of two speakers can be used in parallel.
I-7000MK II uses a new advanced design and improved line array speaker vertical spring latch hanging system. Three-point aluminum alloy support, easy to adjust the hanging angle and balance point. The vertical spring latch is a technology developed by our company (Note: the horizontal latch is usually used in current products in the market ). The vertical spring type latch will not protrude from both sides of the speaker, and is built in the speaker cabinet, which effectively avoids the collision and damage of the latch during installation and transportation. The spring latch is integrated with the aluminum part to avoid the split latch get lost.
i-7000MKII parameters:
Components: HF:65ND@2 MF:10 inch 50ND LF1:12 inch 75ND
LF2: 12 inch 75ND
Rated power: HF:240W MF:250W LF1:350W LF2:350W
Impedance: HF: 8Ω MF: 8Ω LF1:16Ω LF2: 16Ω
dispersion: 80°*7°
Sensitivity: HF: 108dB MF: 110 dB LF1: 108 dB LF2: 108 dB
Maximum sound pressure level: 136dB
Frequency response: HF:900-21KHz MF:238-2350Hz LF1:45-700Hz
LF2: 45-700Hz
Cabinet material: 15mm birch plywood
Cabinet size: 1076*605*355.5mm
Weight:49.5kg
