Quick Details
-
Power:
-
103kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENGWANG
-
Product name:
-

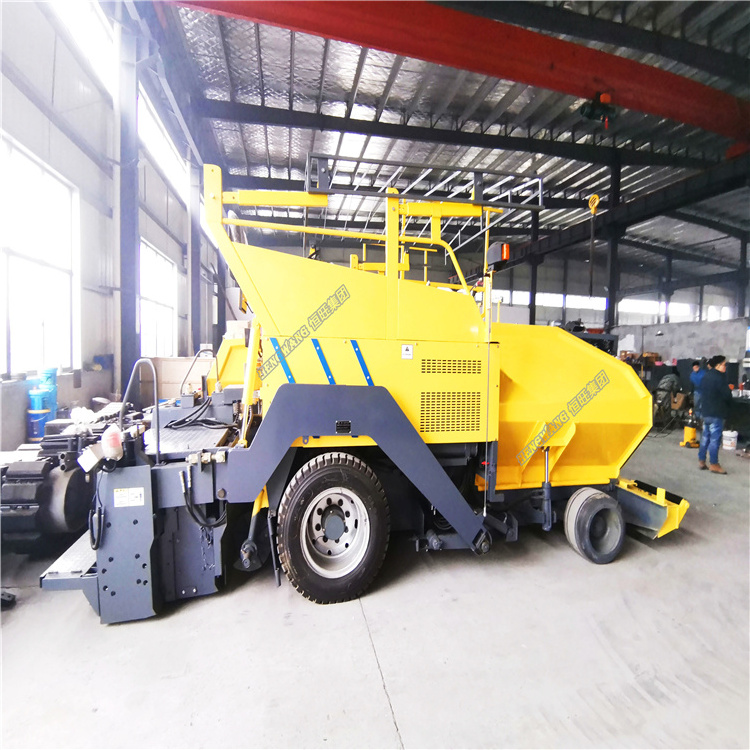

6m width Mini Wheel Asphalt Concrete Paver mini asphalt finisher
-
Application:
-
Asphalt Road Paving
-
Rubber Paver:
-
Rubber Paver
-
Paving Speed:
-
0-20 M/min
-
Hopper Capacity:
-
8.5 M3
-
Engine Model:
-
Shangchai SC4H
-
Max Paving Width:
-
6.0
-
Max. paving thickness:
-
260mm
-
Drive Speed:
-
0~3.0km/h
Quick Details
-
Max. Paving Thickness:
-
260mm
-
Weight:
-
3000 kg
-
Engine Brand:
-
SC4H140G3
-
Power:
-
103kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENGWANG
-
Product name:
-
6m width Mini Wheel Asphalt Concrete Paver mini asphalt finisher
-
Application:
-
Asphalt Road Paving
-
Rubber Paver:
-
Rubber Paver
-
Paving Speed:
-
0-20 M/min
-
Hopper Capacity:
-
8.5 M3
-
Engine Model:
-
Shangchai SC4H
-
Max Paving Width:
-
6.0
-
Max. paving thickness:
-
260mm
-
Drive Speed:
-
0~3.0km/h
Main parameters:
Basic paving width: 2.5m
Max. paving width: 6m
Max. paving thickness:260mm
Working speed:0~15m/min
Driving speed:0~3.0km/h
Detailed configuration:
Diesel engine: SC4H140G3 103kW/2200rpm
Bearing of complete machine
American Danfoss Walking pump
Germany Rexroth Walking motor
|
Serial No. |
Item |
Unit |
Performance parameters (equipped with E475T) |
|
1 |
Basic paving width |
m |
2.5~4.75 |
|
2 |
Maximum paving width |
m |
6.0 |
|
3 |
Maximum paving thickness |
mm |
260 |
|
4 |
Working speed |
m/min |
0~15 |
|
5 |
Driving speed |
km/h |
0~15 |
|
6 |
Theoretical production rate |
t/h |
400 |
|
7 |
Hopper capacity |
t |
13 |
|
8 |
Grade ability |
% |
20 |
|
9 |
Evenness |
mm/3m |
2 |
|
10 |
Camber adjustable range |
% |
-1~3 |
|
11 |
Power of the diesel engine |
kW |
103 |
|
12 |
Revolving speed for diesel engine |
r/min |
2200 |
|
13 |
The revolving speed for material conveying |
r/min |
0~75 |
|
14 |
Material conveying speed |
m/min |
0~28 |
|
15 |
The revolving speed for vibration |
r/min |
0~1500 |
|
16 |
The amplitude for vibration |
mm |
4 |
|
17 |
Boundary dimension |
mm |
6660×2600×4000 |
|
18 |
Total weight |
t |
16.5 |
|
19 |
Volume of diesel tank |
L |
180 |
|
20 |
Volume of hydraulic oil tank |
L |
200 |
