Quick Details
-
Voltage:
-
220v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIAHE
-
Dimension(L*W*H):
-
1700 750 1600mm
-
Weight:
-
130 KG
-
Model Specification:
-
QLF-1680 sealing
-
Power supply voltage:
-
AC220/50Hz
-
The sealing speed:
-
from 0-20m/min
-
Sealing width:
-
10mm
-
Packaging materials:
-
Polypropylene
-
Film thickness:
-
0.02-1.00mm
-
Temperature range:
-
0-300℃
-
height of the package is adjustable from:
-
50-800mm
-
Load capacity is greater than:
-
20Kg
-
Heating power:
-
400w/2
Quick Details
-
Packaging Type:
-
Stand-up Pouch, Foil, Belt, Pouch
-
Packaging Material:
-
Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIAHE
-
Dimension(L*W*H):
-
1700 750 1600mm
-
Weight:
-
130 KG
-
Model Specification:
-
QLF-1680 sealing
-
Power supply voltage:
-
AC220/50Hz
-
The sealing speed:
-
from 0-20m/min
-
Sealing width:
-
10mm
-
Packaging materials:
-
Polypropylene
-
Film thickness:
-
0.02-1.00mm
-
Temperature range:
-
0-300℃
-
height of the package is adjustable from:
-
50-800mm
-
Load capacity is greater than:
-
20Kg
-
Heating power:
-
400w/2
Product Overview

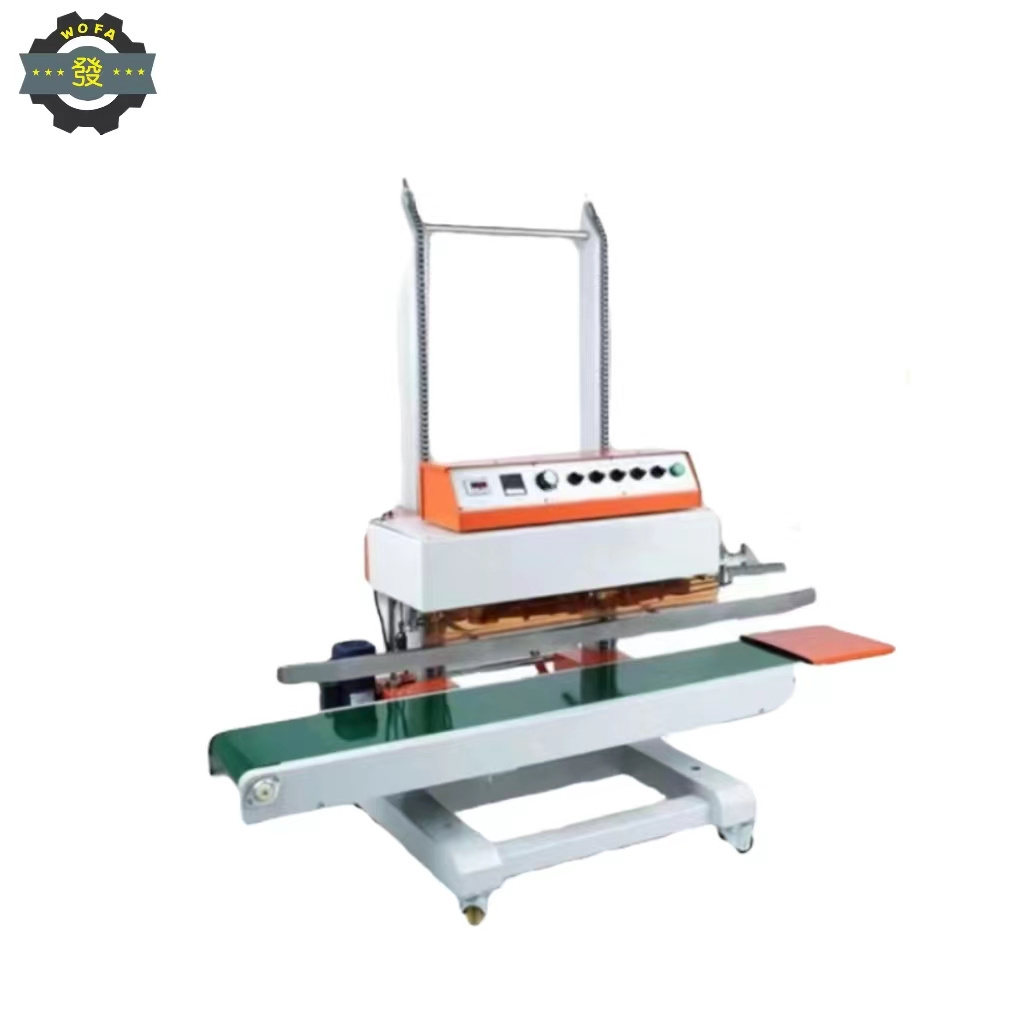

QLF-1680 automatic vertical sealing machine
The conveying part adopts high-power AC motor for stepless speed change, stable operation and no jitter.
l Temperature control part adopts advanced intelligent instrument, the temperature is accurate and adjustable.
FEATURES AT A GLANCE
Mechanical lifting mechanism. Depending on the height of the package, the conveyor table or the sealing part can be lifted to the appropriate position at will
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Model Specification
|
QLF-1680 automatic vertical sealing machine
|
|
1
|
Power supply voltage
|
AC220/50Hz
|
|
2
|
The sealing speed is adjustable from
|
0-20m/min
|
|
3
|
Sealing width
|
10mm
|
|
4
|
Packaging materials
|
Polypropylene composite film, polyester, polyethylenevvvv
|
|
5
|
Film thickness
|
0.02-1.00mm
|
|
6
|
The height of the package is adjustable from
|
50-800mm
|
|
7
|
Load capacity is greater than
|
15Kg
|
|
8
|
Total power
|
1000w
|
PRODUCT CONFIGURATION
The operation buttons are easy to understand
Pure copper heating block cooling block
Universal wheel
