Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB19A-G10Y
-
Product type:
-
Waterproof Push Button Switch
-
Mounting hole diameter:
-
19mm
-
Head shape:
-
high Head
-
Switch combination:
-
1NO1NC
-
Operation type:
-
latching
-
Terminal type:
-
5Pin terminals
-
Material:
-
Nickel-Plated Brass/Stainless Steel
-
Housing color:
-
Silver
-
Feature:
-
Water-proof
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB19A-G10Y
-
Product type:
-
Waterproof Push Button Switch
-
Mounting hole diameter:
-
19mm
-
Head shape:
-
high Head
-
Switch combination:
-
1NO1NC
-
Operation type:
-
latching
-
Terminal type:
-
5Pin terminals
-
Material:
-
Nickel-Plated Brass/Stainless Steel
-
Housing color:
-
Silver
-
Feature:
-
Water-proof

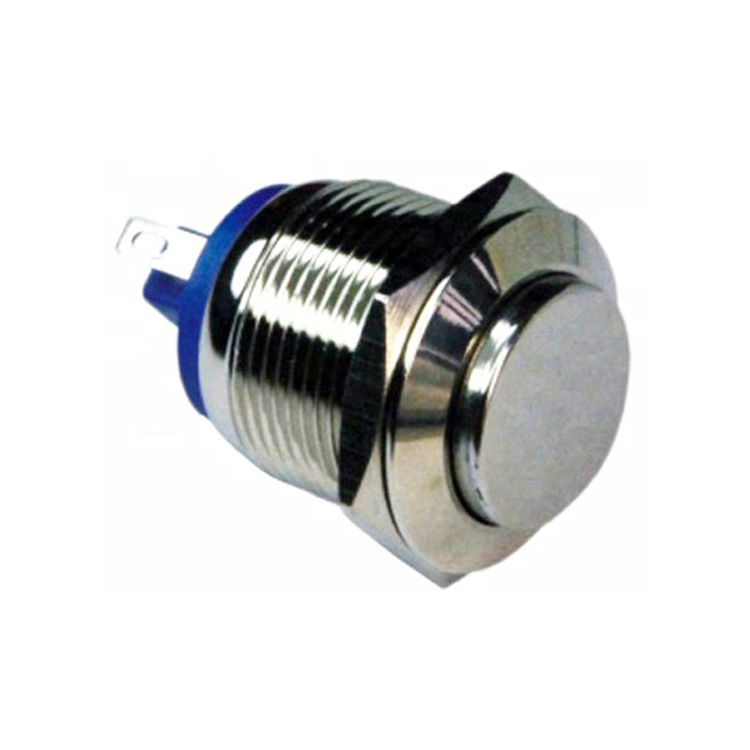

Products Description
Metal 12v switches 19MM Momentary latching pushbutton switches waterproof metal plates for switch
Specification:
Mounting Hole Size: Φ12mm Φ16mm Φ19mm Φ22mm
Switch Rating: 10A/250AC
Switch Combination : 1NO 1NO1NC 2NO
Operated function: Momentary / Self locking
Head type: Flat head
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring led / power logo
Illuminated LED Voltage: 12V
Degree of Protection: IP65/IP67, IK10The
Mounting Hole Size: Φ12mm Φ16mm Φ19mm Φ22mm
Switch Rating: 10A/250AC
Switch Combination : 1NO 1NO1NC 2NO
Operated function: Momentary / Self locking
Head type: Flat head
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring led / power logo
Illuminated LED Voltage: 12V
Degree of Protection: IP65/IP67, IK10The
Wire
Connector:
With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket
Note:
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps.
Or the switch will get warm and to be burned out
Note:
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps.
Or the switch will get warm and to be burned out
|
Product Name
|
Push button switch
|
|
Model
|
IB19A-G10Y
|
|
Mounting Hole
|
12/ 16/19/22/25/28/30/40mm
|
|
Operation Type
|
Momentary / Latching
|
|
Switch Combination
|
1NO/ 1NO1NC
|
|
Head Type
|
Flat / High /Domed head
|
|
Terminal type
|
Solder Terminal
|
|
Enclosure Material
|
Brass nickel
|
|
Delivery Days
|
3-7 days after payment received
|
|
Contact Resistance
|
50 mΩ max
|
|
Insulation Resistance
|
1000MΩ Min
|
|
Dielectric Intensity
|
2000VAC
|
|
Operating Temperature
|
-20°C ~+55°C
|
|
Wire Connector / Wire soldering
|
Acceptable and with fast shipping
|
|
Accessories
|
Nut, Rubber ,Waterproof O-ring
|
