Quick Details
-
Model Number:
-
MFZ0102M-180
-
Brand Name:
-
Transl
-
Standard or Nonstandard:
-
Standard
-
Products Name:
-

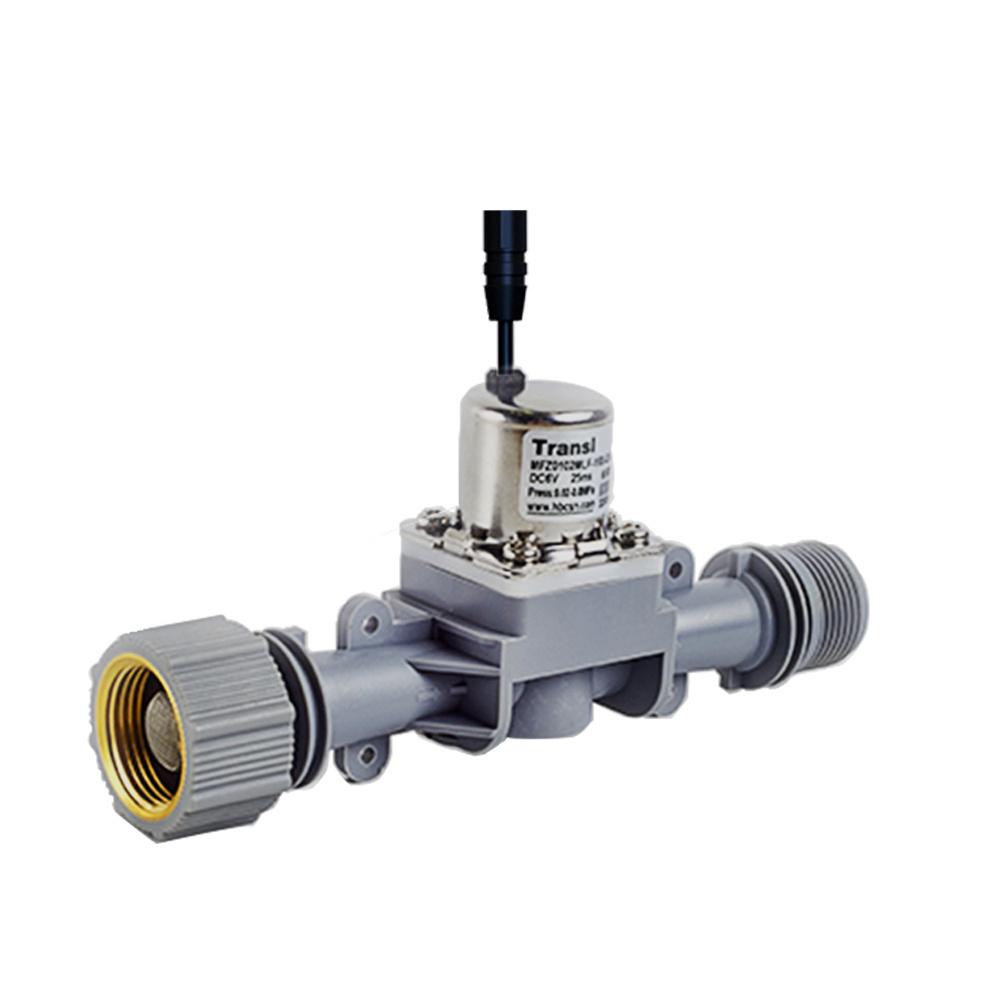

Water solenoid valve 3/4"
-
Voltage (V):
-
DC 3.6V & 6V & 24V;
-
Pulse Width (ms):
-
25
-
Working Pressue (Mpa):
-
0.02-0.8
-
Medium Temperature:
-
1-75
-
Resistance (Reistance):
-
12± 0.5
-
Lifespan (times):
-
500 thousand
-
Standard:
-
CE Rohs
Quick Details
-
Port Size:
-
3/4inch
-
Warranty:
-
1 year
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
MFZ0102M-180
-
Brand Name:
-
Transl
-
Standard or Nonstandard:
-
Standard
-
Products Name:
-
Water solenoid valve 3/4"
-
Voltage (V):
-
DC 3.6V & 6V & 24V;
-
Pulse Width (ms):
-
25
-
Working Pressue (Mpa):
-
0.02-0.8
-
Medium Temperature:
-
1-75
-
Resistance (Reistance):
-
12± 0.5
-
Lifespan (times):
-
500 thousand
-
Standard:
-
CE Rohs
Product Parameter
|
Product Name
|
Garden Irrigation Water solenoid valves
|
|
Type
|
Custom Available
|
|
Certification
|
CE UL ROHS REACH SGS
|
|
Temperature of Medium
|
1-75℃
|
|
Medium
|
Water, Air
|
|
Structure
|
Diaphragm
|
|
Installation Method
|
G1/2thread or 1/4 quick connect
|
|
Static Pressure
|
0.05-0.8Mpa
|
|
Voltage
|
DC 2.5V-28V
|
|
Switch Type
|
DC pulse type(positive pulse on/negative pulse off)default red to +pole
|
|
Response Time
|
ON>>0.2S, OFF>>0.5S
|
|
Main Usage
|
Garden Irrigation
|
|
Material
|
Cuprum/Stainless iron +NBR
|
|
Surface technology
|
Electroplate
|
Product Applications
Main Applications of solenoid valves
Widely used in area of Automatic Home Garden Watering , Outdoor Garden Automatic Irrigation Controller, Single Outlets Tap Timer,2or4 Zone Outdoor Irrigation Sprinkler, Lawn Garden Watering , Pool Filling , Smart Water Meter, Smart Feeder , Drip Irrigation System , Green Plant Spraying, Automatic Agricultural, Municipal Garden Irrigation System,garden spray landscaping , farmland, and other fields of daily irrigation control,intelligent irrigation drip irrigation , to reduce human costs, improve the efficiency of automation, saving electricity wand water.
Performance Test
|
Strength Test
|
Water pressure resistance 1.2Mpa/5min
|
Work environment temperature
|
1-60℃
|
|
Electrical Strength
|
The conductive part,mounting hole and non-conductive metal can withstand 500V/50Hz,leakage current 1mA,withstand voltage for 1min without breakdown
|
Working environment humidity
|
35%-95%RH(no condensation)
|
|
Insulation Resistance
|
Use a 500V megger to test the resistance between the conductive part and the non-conductive metal>=20MΩ
|
Storage Temperature
|
-5-80℃(no icing state)
|
|
High Water Pressure Leakage
|
1.0MPa,No leakage
|
Storage Humidity
|
25%-95%(no condensation)
|
|
Low Water Pressure Leakage
|
0.02MPa,Leakage<<=0.1mL/min
|
Installation Direction
|
Vertical or horizontal direction , inclination<=15degree
|
|
Service Life Test
|
>=800000 times
|
Allowable Pressure limit(water pressure)
|
<=1.0Mpa
|
Quick Connector(British Standard)
British Standard: ABS engineering plastic,cold-resistance and UV resistance,high strength,the weight is about 10.3g(including
O-ring). British Standard Pipe G3/4-14thread.Vertical stripe designnon-slip easy to grasp and hold.Suitable for connection with
standard G3/4 pipe with external thread water pipeand can quickly connect with four and si minute joints.
O-ring). British Standard Pipe G3/4-14thread.Vertical stripe designnon-slip easy to grasp and hold.Suitable for connection with
standard G3/4 pipe with external thread water pipeand can quickly connect with four and si minute joints.
Quick Connector(British Standard)
American Standard: ABS engineering plastic,cold-resistance and UVresistance,high strength,the weight is about 10g(including
O-ring). Standard American NH3/4-11.56 thread Vertical stripe designnon-slip easy to grasp and hold.Suitable for connecting with
standard American NH3/4-11.5 external thread water pipe, and can quickly connect with four and six minute joints.
O-ring). Standard American NH3/4-11.56 thread Vertical stripe designnon-slip easy to grasp and hold.Suitable for connecting with
standard American NH3/4-11.5 external thread water pipe, and can quickly connect with four and six minute joints.
