Quick Details
-
Model Number:
-
ASJ-LD1C
-
Product name:
-
Earth Leakage Relay
-
Type:
-
Multifunction Relay
-
Load Current:
-
30A
-
Application:
-
Widely Used Relay
-
Name:
-
Current Relay
-
Function:
-
leakage current protection
-
Approvals:
-
EAC CE
-
Type 2:
-
residual current relay
-
Contact Rating:
-
5A 220VAC/28VDC
-
Protection Type:
-
Line
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Acrel
-
Model Number:
-
ASJ-LD1C
-
Product name:
-
Earth Leakage Relay
-
Type:
-
Multifunction Relay
-
Load Current:
-
30A
-
Application:
-
Widely Used Relay
-
Name:
-
Current Relay
-
Function:
-
leakage current protection
-
Approvals:
-
EAC CE
-
Type 2:
-
residual current relay
-
Contact Rating:
-
5A 220VAC/28VDC
-
Protection Type:
-
Line
Product Description
Earth Leakage Relay
ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
Specification
|
Type
|
Function
|
Installation
|
|
ASJ20-LD1C
|
AC type residual current
Over current alarm
Rated residual operated current can be set
Limited non-driving time can be set
2 relays output(1 NC contact, 1 normal changeover contact)
With local/remote "test" and "reset" functions
|
Panel mounted
|
|

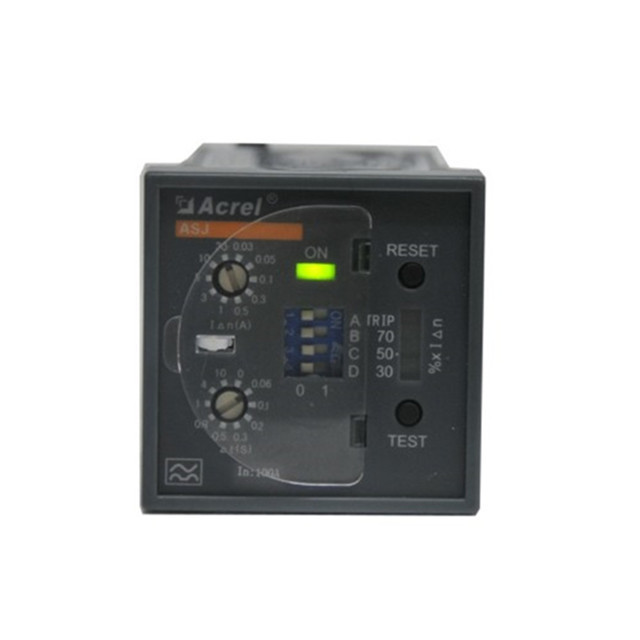

ASJ20-LD1A
|
A type residual current measurement
Current percentage light bar indication(30%, 50%, 70%, TRIP)
Rated residual operated current
can be set Limited non-driving time can be set
2 relays output(1 NO contact, 1 normal changeover contact)
With local/remote/automatic "test" and "reset" functions
|
Panel mounted
|
|
ASJ10-LD1C
|
AC type residual current
Over current alarm
Rated residual operated current can be set
Limited non-driving time can be set
2 relays output(1 NC contact, 1 normal changeover contact)
With local/remote "test" and "reset" functions
|
35mm Din rail
|
|
ASJ10-LD1A
|
A type residual current measurement
Current percentage light bar indication(30%, 50%, 70%, TRIP)
Rated residual operated current
can be set Limited non-driving time can be set
2 relays output(1 NO contact, 1 normal changeover contact)
With local/remote/automatic "test" and "reset" functions
|
35mm Din rail
|
|
AASJ10L- LD1A
|
A type residual current measurement
Rated residual action current can be set
Limit non-driving time can be set
Two sets of relay outputs
The fault alarm of transformer can be set
Warning value can be set
Return value can be set
With on-site, remote "test" , "reset" function
25 event records;
LCD screen
RS485 modbus-RTU communication
|
35mm Din rail
|
Customized service
If you have any special requirements, for example function or communication ,please feel free to
