3) life span time: more than 20 years
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

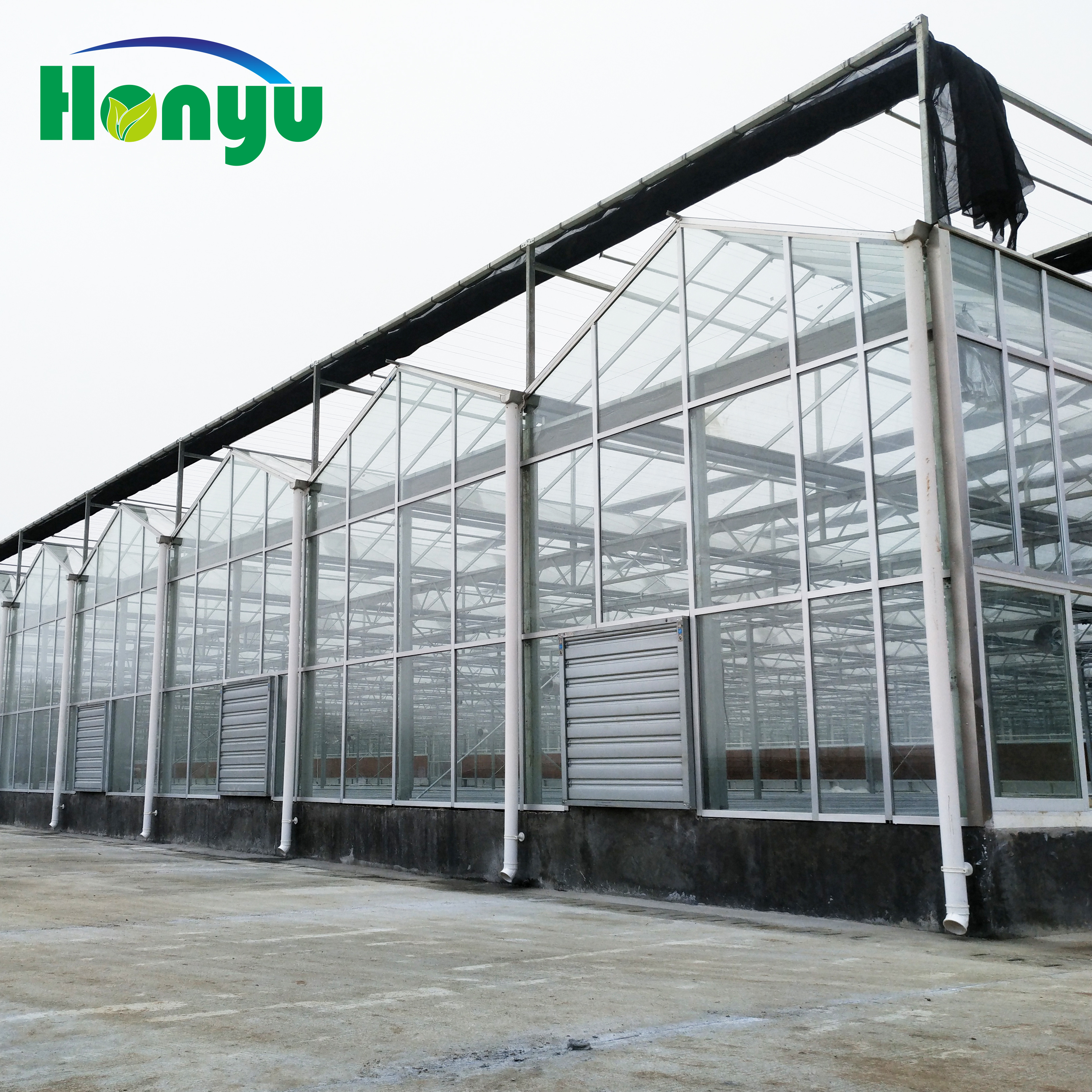

High Quality Venlo Glass Greenhouse For Hydroponic Growing System
-
Structure:
-
Hot Galvanized Steel Structure
-
Covering:
-
Tempered Glass
-
Span Width:
-
8m/9.6m/12m
-
Length:
-
at least 32m / Customized
-
Gutter height:
-
3-6m
-
Ridge Height:
-
4-7m
-
Optional system:
-
heating/ cooling /ventilation/etc.
-
Application:
-
Flowers Farming
-
Packaging:
-
Standard Package
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Place of Origin:
-
China
-
Product name:
-
High Quality Venlo Glass Greenhouse For Hydroponic Growing System
-
Structure:
-
Hot Galvanized Steel Structure
-
Covering:
-
Tempered Glass
-
Span Width:
-
8m/9.6m/12m
-
Length:
-
at least 32m / Customized
-
Gutter height:
-
3-6m
-
Ridge Height:
-
4-7m
-
Optional system:
-
heating/ cooling /ventilation/etc.
-
Application:
-
Flowers Farming
-
Packaging:
-
Standard Package
Product Introduction
High Quality Venlo Glass Greenhouse For Hydroponic Growing System
Glass Greenhouse Character:
1.Good heat preservation performance, and is easy to operate.
2.Excellent UV resistance and dew preventing effect.
3.The cover can reduce the evaporation of soil water.
4.Large inner space and natural ventilation to ensure the breath of plants.
5.It can effectively prevent cold air intrusion, low energy consumption.
6.Venlo type roof, beautiful and elegant performance.
Glass Greenhouse Paramaters:
|
Frame materials
|
Hot dip galvanized steel with over 15 years work life
|
|
Cover materials
|
5mm thickness tempered glass with over 8 years work life
|
|
Snow Load
|
0.3KN/㎡
|
|
Wind Load
|
0.45KN/㎡
|
|
Hanging Load
|
0.1KN/㎡
|
|
Max Rainfall
|
140mm/h
|
|
Standard Span width
|
9.6m per span with 3 venlo roofs
|
|
Standard Section
|
4m per section
|
|
Standard Gutter Height
|
3m - 6m are available
|
|
Standard Ridge Height
|
4m -7m are abaliable, ridge height is 1 meter taller than gutter height
|
|
Standard Optional Systems
|
Roof and side ventilation system, external and internal shading system, cooling system
|
|
MOQ
|
19.2m width * 28m length, 19.2m width * 32m length, 28.8m width * 32m length, etc.
|
|
Customized Service
|
span width, length, gutter height, roof height can be customized accordingly.
|
Product Details
MainFrame:
1) hot dip galvanized steel and galvanized accessories
2) galvanized area: 200g-300g per sqm
Cover material:
1) High quality tempered glass
2) Glass thickness: 5mm
3) Feature: Safe, high intensity, thermal stability
Supporting System Show: provided according to your requirement
Roof Window Ventilation System
Side Window Ventilation System
Internal Shading System
External Shading System
Wet Curtain and Fan Cooling System
Air Circulation Fan
Co2 Generator
Optional System
|
Supporting System
|
Application
|
|
Roof and side ventilation system
|
Electric rack and pinion drive to open the window for keeping good ari flow.
|
|
External shading system
|
Black round wires net to provide shading in hot summer, lower inner temperature.
|
|
Internal shading system
|
Aluminum foil net to keep warm for the greenhouse in cold winter.
|
|
Wet pad and fan cooling system
|
It can lower the inner temperature about 4-12 degree.
|
|
Irrigation System
|
Micro jet irrigatiom, drip irrigation, sprinkrt irrigation
|
|
Soil-less growing system
|
Hydroponics System, Substrate Cultivation System
|
|
Lighting System
|
For hilight crop add lighting time.
|
|
Air circulation system
|
To assure the good air flow
|
|
Heating System
|
Coal-fired hot air blower, electric heating fan, wire soil heating,Plumbing heating system. you could choose these system to heating.
|
|
Intelligence Control System
|
Real-time remote access to air temperature, humidity, soil maisture, carbondioxide, and video images inside greenhouse.
|
Main Products
Company Introduction
Chongqing Honyu Global Agri-Tech Co., Ltd.
is a professional manufacturer and exporter of modern agriculture greenhouse and equipment, mainly specializes in research and development, design, production, construction, installation and selling of all kinds of greenhouse, agricultural and forestry irrigation, water-saving Irrigation, hydroponics and substrate culture for hobby and commercial growers.
We have our own factory base for producing greenhouse including the greenhouse frame and various parts and accessories. Thanks to years of experience in this industry, our strong sourcing and integrating ability, we've already established long term cooperation with wide range of related factories. All the products we produced and sourced are all manufactured under strict quality control system, as quality is always focus of our business.
We are always committed to customers' profit and provide the high quality products at most competitive price. Till now, we've constructed a lot of greenhouse and irrigation projects in China, and also exported to America, Canada, South Africa, Qatar etc. where we enjoy really good reputation for good quality and service.
Packing & Delivery
FAQ
1.Are you a factory or trading company?
A: we are professional manufacture of greenhouse, and we have good and long time cooperation factory to supply us the supporting equipment and systems
2. What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
3. How long is your delivery time?
A: According to your greenhouse size and system, the delivery time is usually 10-35days.
Please double check with us for specific order.
4. How long can I expect to get the sample?
A: Usually our samples will be ready for delivery in 3-5 days. Please feel free to check further with us for detail.
5. How long is the service life of greenhouse?
A: Usually the service life of the greenhouse is 15-20 years.
6. How to install the greenhouse? Do you provide installation service?
A: we will provide technical drawing for installation, and our engineer is also available on site for installation guidance.
Please contact with us directly for checking the best price and fast delivery for you!
