Quick Details
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1000*1050*1500mm
-
Weight:
-
775 KG
-
Product name:
-
Swing Arm Cutting Machine
-
Application:
-
Leather, plastic, foam, masks, soles
-
Material:
-
Non-metallic material
-
Advantage:
-
Safe and efficient operation is simple
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
MOQ:
-
1 set
-
Delivery time:
-
7-15 days
Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Taiwei
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1000*1050*1500mm
-
Weight:
-
775 KG
-
Product name:
-
Swing Arm Cutting Machine
-
Application:
-
Leather, plastic, foam, masks, soles
-
Material:
-
Non-metallic material
-
Advantage:
-
Safe and efficient operation is simple
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
MOQ:
-
1 set
-
Delivery time:
-
7-15 days
Products Description
Product use and characteristics

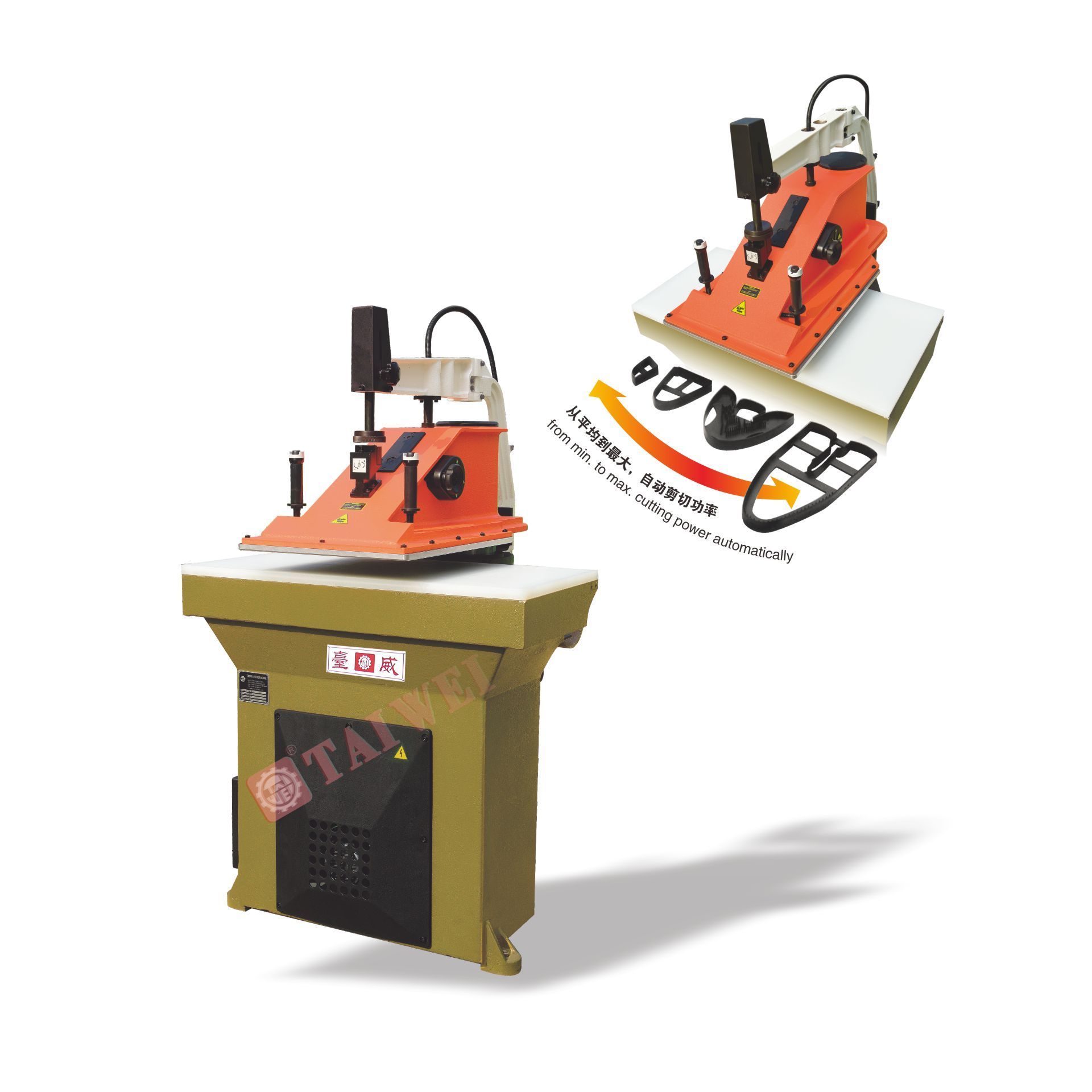

* Automatic adjusting pressure system:Regardless of different sizes die-cuts
(same height).
(same height).
There is no need to adjusting pressure,even if different hardness.
Easy operation,higher productivity than conventional swing arm cutting presses
goes the same.
Save 50 percent of the cutting board costs.
* Minimize operator's fatigue to the least.
Easy operation,higher productivity than conventional swing arm cutting presses
goes the same.
Save 50 percent of the cutting board costs.
* Minimize operator's fatigue to the least.
Main technical specifications
|
Model
|
TW-20C
|
TW-9.1
|
TW-9.3S
|
TW-9.3
|
TW-9.4
|
TW-9.5
|
TW-9.6
|
|
Working Table Size（mm)
|
900 x 430
|
900 x 450
|
900 x 450
|
1000 x 500
|
1000 x 500
|
1000 x 500
|
1200 x 500
|
|
Arm Width（mm)
|
370
|
370
|
370
|
370
|
500
|
610
|
610
|
|
Maximum Cutting Force（t)
|
20（196kN）
|
22（216kN）
|
25（245kN）
|
25（245kN）
|
25（245kN）
|
25（245kN）
|
22（216kN）
|
|
Max. Stroke（mm)
|
90
|
90
|
90
|
90
|
90
|
90
|
90
|
|
Max. Travel（mm)
|
125
|
125
|
125
|
125
|
125
|
125
|
125
|
|
Motor Power（kW)
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
0.75（1HP）
|
|
Machine Size（mm)
|
900 x 1000 x 1710
|
900 x 1000 x 1710
|
900 x 1000 x 1710
|
1000 x 1140 x 1710
|
1000 x 1160 x 1710
|
1000 x 1160 x 1710
|
1200 x 1160 x 1710
|
|
N.W. With Oil（kg)
|
660
|
910
|
910
|
1020
|
1060
|
1080
|
1100
|
|
N.W. With Packing Material（kg)
|
775
|
1030
|
1030
|
1150
|
1190
|
1210
|
1230
|
Product Application
It is widely used in all nonmetal products industries, such as shoes,bags&cases,leather products,gloves,hats,pulled
flowers,arts&crafts, plastic package,garment accessorries and auto supplies.
flowers,arts&crafts, plastic package,garment accessorries and auto supplies.
