Quick Details
-
Place of Origin:
-
HEB
-
Model Number:
-
EWM
-
Brand Name:
-
MAISHI
-
Delivery Time:
-
based on your order quantity, Based on your order quantity
-
Product name:
-
Epoxy Coated Wire Mesh Screen As Filter Supporting Mesh
-
Usage:
-
filter element supports
-
Hole shape:
-
Square Hole
-
Surface treatment:
-
Epoxy Coating
-
Quality standard:
-
ASTM
-
Color:
-
Black/charcoal epoxy
-
Width:
-
50mm(2inches)-1500mm(60inches)
-
Packing:
-
with waterproof paper, then in plywood pallets
-
Sample:
-
Avialable
Quick Details
-
Material:
-
CCL epoxy annealed 1006 alloy, Stainless steel, Aluminum 5052 etc.
-
Type:
-
Wire Cloth
-
Application:
-
support screen
-
Place of Origin:
-
HEB
-
Model Number:
-
EWM
-
Brand Name:
-
MAISHI
-
Delivery Time:
-
based on your order quantity, Based on your order quantity
-
Product name:
-
Epoxy Coated Wire Mesh Screen As Filter Supporting Mesh
-
Usage:
-
filter element supports
-
Hole shape:
-
Square Hole
-
Surface treatment:
-
Epoxy Coating
-
Quality standard:
-
ASTM
-
Color:
-
Black/charcoal epoxy
-
Width:
-
50mm(2inches)-1500mm(60inches)
-
Packing:
-
with waterproof paper, then in plywood pallets
-
Sample:
-
Avialable

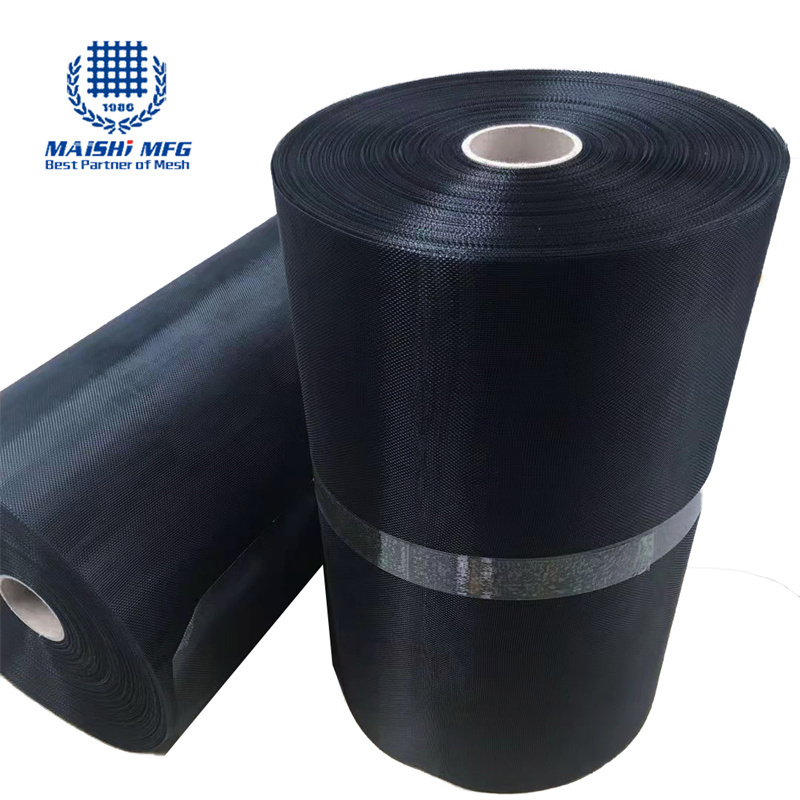

Epoxy Coated Wire Mesh Screen As Filter Supporting Mesh
Epoxy coated mesh is mainly composed of plain steel wires woven together and coated with quality epoxy resin powder through the electrostatic spraying process to make this material resistant to corrosion and acids. The epoxy-coated wire mesh is usually used as a support layer for the filtering which replacing galvanized wire mesh and is ideal due to the stability of the structure as well as its affordability, it's the main part of filters.
Production Description
The specifications of MAISHI frequently produced and stocked products are as follows:
Quality standard : ASTM
Material: CCL epoxy annealed 1006 alloy, Stainless steel, Aluminum 5052 etc.
Color: Black/charcoal epoxy
Mesh size:18x14mesh(hole size 1.4mmx1.8mm) , 24x22mesh(hole size 0.8mmx1.0mm),28x24mesh(hole size 0.7mmx0.8mm)
Wire diameter: 0.008inch(0.20mm)
Width: 50mm(2inches)-1500mm(60inches)
Length: 30m(100ft)-700m(2000ft)
MAISHI can also produce other materials (such as stainless steel, aluminum) and other colors (such as dark gray) epoxy coated steel screening according to customer requirements.
Characteristics
1. Even and square hole
2. Not easy to loosen and deform, the supporting force is strengthened
3. Soft mesh surface and easy to be shaped.
4. Different colors of powder can be coated.
5. Even and consistent color.
Application
This product can be used for pleated filter element supports, which can be used in hydraulic systems as well as in the automotive industry, such as hydraulic filters, air filters, etc.
Package
We normally pack this mesh with waterproof paper, then in plywood pallets .
