Quick Details
-
Brand Name:
-
None
-
Supplier Type:
-
Manufacturing,OEM/ODM
-
Frequency Range:
-
150/433/868/915mhz
-
Interface Type:
-
TTL/RS232/RS485
-
Software Program:
-
Yes
-
Air data rate:
-
1200bps-115200bps settable by user
-
Baud rate:
-
1200bps-115200bps settable by user
-
Transmit Power:
-
100mW
Quick Details
-
Application:
-
Industrial
-
Model Number:
-
XZ-DT25-U
-
Place of Origin:
-
Shenzhen China
-
Brand Name:
-
None
-
Supplier Type:
-
Manufacturing,OEM/ODM
-
Frequency Range:
-
150/433/868/915mhz
-
Interface Type:
-
TTL/RS232/RS485
-
Software Program:
-
Yes
-
Air data rate:
-
1200bps-115200bps settable by user
-
Baud rate:
-
1200bps-115200bps settable by user
-
Transmit Power:
-
100mW
Product Description
Product Introduction
XZ-DT25-U(100mW) is a 100mw wireless transceiver, can act as both transmitter and receiver,and it can work with our XZ-DT25-H(502,35w,25w),XZ-DT25-M(8w,5W),XZ-DT25-L(2w,500mW).
Technical Parameters
|
XZ-DT25-U Parameters
|
|
|
|
Frequency Range
|
136～174MHz, 410～470MHz,868mhz,915mhz
|
|
|
Frequency stability
|
≤±1.5PPm
|
|
|
Transmit Power
|
100mW
|
|
|
Modulation
|
GFSK/4GFSK
|
|
|
Air Data Rate
|
1200～115200bps settable by user
|
|
|
Baud Rate
|
1200～115200bps settable by user
|
|
|
Interface
|
TTL/RS232/RS485
|
|
|
Power Supply
|
3.3-5V
|
|
|
Interface Data Format
|
8E1/8N1/801
|
|
|
Receiving Sensitivity
|
-125dBm@1200bps/-120dBm@9600bps
|
|
|
Channel Bandwidth
|
10KHZ@1200bps/25KHZ@9600bps
|
|
|
Emission Current
|
≤1.5A (Max Output Current is not less than 2A)
|
|
|
Receiving Current
|
≤80mA
|
|
|
Working Temperature&humidity
|
-40℃～80℃ (industrial grade),10% to 90% relative humidity, no condensation
|
|
|
Dimension(L/W/H)
|
32 X 20X 7mm
|
|
|
Weight(g)
|
≤50g
|
|
Pin Definitions
Software Program

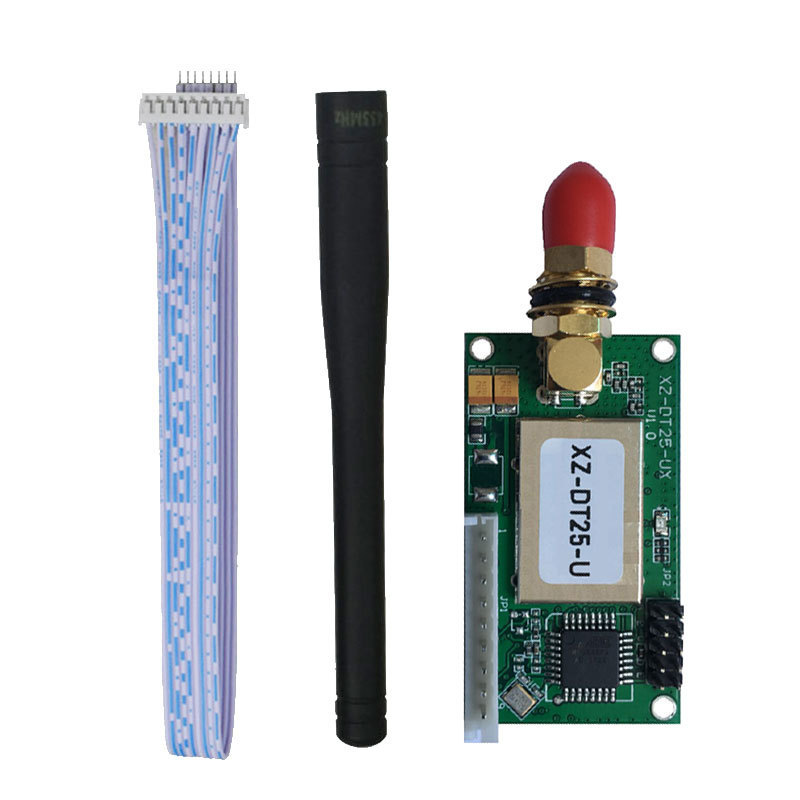

Package Includes
2*100mW receiver
2*rubber antenna
2*ECH9 pins cable
