Pool Water Filter Cartridges Filter for Housing Swimming Pool Filter System

Pool Water Filter Cartridges Filter for Housing Swimming Pool Filter System

FOB Reference Price: Get Latest Price

≥1 Pieces

US $98

≥50 Pieces

US $88

≥200 Pieces

US $75

≥500 Pieces

US $60

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max temperature:: 40°C/100°F

Filter Area:: 2.25-16.82 sqm

Max Flow Rate:: 5.5m3/h - 40.9m3/h

Usage:: Swimming pool / spa

Air vent pipe:: stainless steel AISI 304

Max operating pressure:: 36 psi/2.5 bar

Valve Connections:: 1.5inch/2inch

Installation:: In-ground / above ground

Item:: 5 micron cartridge filter / pp filter cartridge

Quick Details

Place of Origin:: GUA

Brand Name:: Pikes

Model Number:: AF25 Cartridge filters, AF25/50/75/100/150

Max temperature:: 40°C/100°F

Filter Area:: 2.25-16.82 sqm

Max Flow Rate:: 5.5m3/h - 40.9m3/h

Usage:: Swimming pool / spa

Air vent pipe:: stainless steel AISI 304

Max operating pressure:: 36 psi/2.5 bar

Valve Connections:: 1.5inch/2inch

Installation:: In-ground / above ground

Item:: 5 micron cartridge filter / pp filter cartridge

AF25 -25ft2 Cartridge Filter with 1.5" union sets
AF50 -50ft2 Cartridge Filter with 1.5" union sets
AF75 -75ft2 Cartridge Filter with 1.5" union sets
AF100 -100ft2 Cartridge Filter with 2" unIon sets
AF150 -150ft2 Cartridge Filter with 2" union sets
AF200 -200ft2 Cartridge Filter with 2" union sets

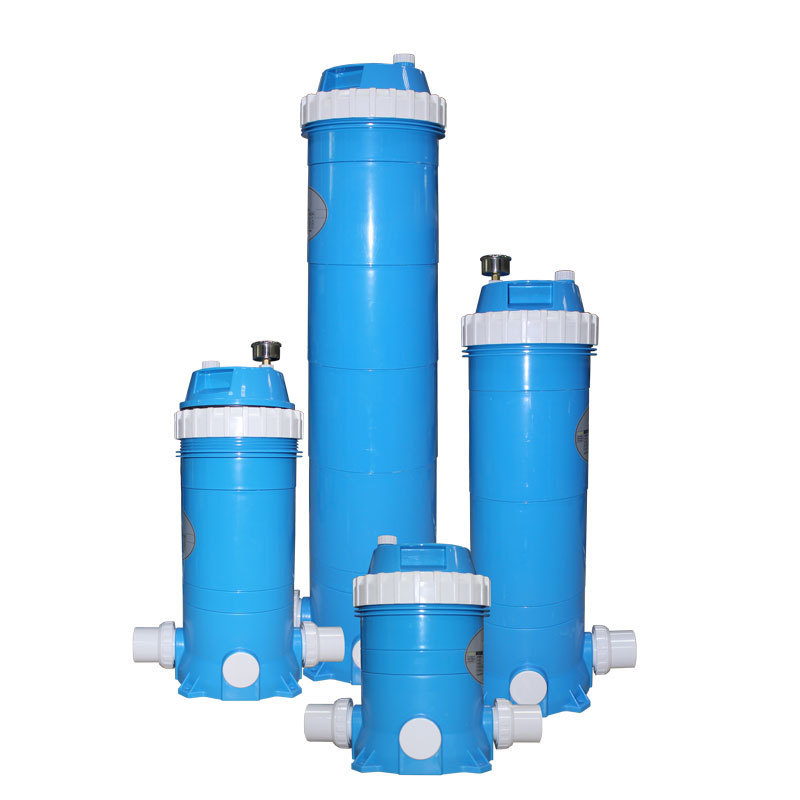

Cartridge Filter

This cartridge filters is compact and light.

The UV-resistant tank can prevent it from the demage of the sun.

Its maximum pressure is 350 kPa/50psi.

paper cartridge pool filters / cartridge for water treatment
Maximum Working Pressure: 300kPa/50psi/3.5bar
Max flow rate: 5.5m3/h-40.9m3/h
Valve connection: 1.5inch 50mm/2inch 63mm
Filter area: 2.25m^2-16.83m^2
Maximum Water Temperature: 40°C(100F)

Features

1)Compact and light
2)UV-resistant tank
3)Easy to service
4)Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
5)Screw type air bleeder for easy removal of the trapped air inside the filter tank
6)High quality oil filled pressure gauge

Functions

1. maximum working pressure: 250kPa/36psi/2.5bar
2. factory testing pressure: 400kPa/58psi/4.0bar
3. size of silica sand: 0.5-1.0mm
4. maximum filtration velocity: 50cbm/h/sq
5. maximum water temperature: 40 degree
