- Product Details
- {{item.text}}
Quick Details
-
Max. Wheel Weight:
-
65Kg
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Jaray
-
Model Number:
-
F-640
-
Warranty:
-
18 Months
-
Product Name:
-
Wheel Balancer
-
Color:
-
Blue/ Red
-
Certification:
-
CE
-
Packing Size:
-
1000mm*680mm*1060mm
Quick Details
-
Power:
-
0.25Kw
-
Power Supply:
-
220v
-
Balancing Speed:
-
200turn
-
Max. Wheel Weight:
-
65Kg
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Jaray
-
Model Number:
-
F-640
-
Warranty:
-
18 Months
-
Product Name:
-
Wheel Balancer
-
Color:
-
Blue/ Red
-
Certification:
-
CE
-
Packing Size:
-
1000mm*680mm*1060mm

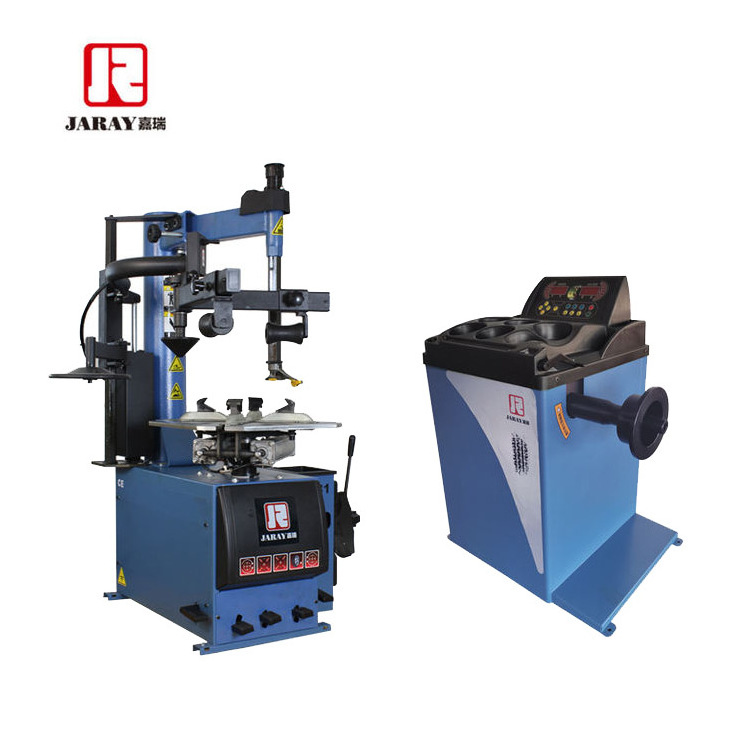

Product introduction
|
Product name
|
Export wheel balancer
|
Product model
|
F-640
|
|
Motor voltage
|
220v
|
Motor power
|
0.25kw
|
|
Max.wheel diameter
|
1000mm
|
Maxi.wheel weight
|
65kg
|
|
Measuring time
|
6-8s
|
Balancing accuracy
|
±1g
|
|
Rim width
|
1.5-16
|
Rim diameter
|
13-24
|
|
Spindle speed
|
≤200r/min
|
Gross weight
|
100kg
|
|
Equipment size
|
1060mm×590mm×1080mm
|
Packing dimensions
|
1000mm×680mm×1060mm
|
The top cover of injection moulding process ensures beauty and strength, and the multi-station toolbox facilitates the classification of balance blocks.
Precision spindle cooperates with low resistance bearing to ensure data accuracy. Phosphating treatment of spindle, anti-corrosion and anti-rust
The motor is certified by ce, the noise of pure copper core is low, and the heat dissipation performance of aluminium alloy end cover is stronger, which can avoid the motor temperature caused by frequent starting or braking.
Compound welded box, internal structure with "U" groove reinforcement welding, to ensure the stability of the chassis, and can withstand a larger weight of tires.
High sensitive photovoltaic panel is more accurate in numerical value
Random Accessories
Packing box style
Product introduction
|
Product name
|
Single cylinder left helperarm tyre changer
|
Product model
|
F-581
|
|
Outer Clamp
|
10-20
|
Inter Clamp
|
12-24
|
|
Max.Wheel Width
|
450mm
|
Max.Wheel Diameter
|
1040mm
|
|
Motor voltage
|
220v/380v
|
Motor power
|
1.1kw/0.75kw
|
|
Working noise
|
<70db
|
Operating air pressure
|
8-10bar
|
|
Net weight
|
240kg
|
Gross weight
|
210kg
|
|
Equipment size
|
1010mm×1040mm×1940mm
|
Packing dimensions
|
1110mm×900mm×920mm
|
Main Features
The working head of the tire changer machine is mechanically locked and the failure rate is lower. The contact between swing arm and top wire is thicker. High-strength working head.Galvanized high strength spring, no distortion and anti-aging.
Independent left auxiliary arm, independent cylinder can press tire and support tire
Main Features
The 24-inch working disc is 630 mm in diameter and 14.5 mm in thickness.tire changer rotective sheets are installed under the fixed claws and the metal joints of the whole machine are installed.
The auxiliary arm of AT-1081 tire disassembly and assembly machine belongs to the independent left auxiliary arm. The working arm of the auxiliary arm is a double press wheel. The high toughness nylon tyre wheel cooperates with the reinforced double press arm. The angle of the tyre wheel is optimized and upgraded. The right arm pull type three-stage locking is re-optimized. The diameter of the concentric axis is increased to 40MM. The explosion-proof tyre and flat tyre can be easily dealt with.
Main Features
A.Cylinder
B.Box reinforcement support
C.Engine
D.Turbine box
E.Quick Exhaust Valve F:Switch
Random Accessories
Packing box style
