Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
China
-
Brand Name:
-
ENSUN
-
Model Number:
-
CNP 100L-300L
-
Product name:
-

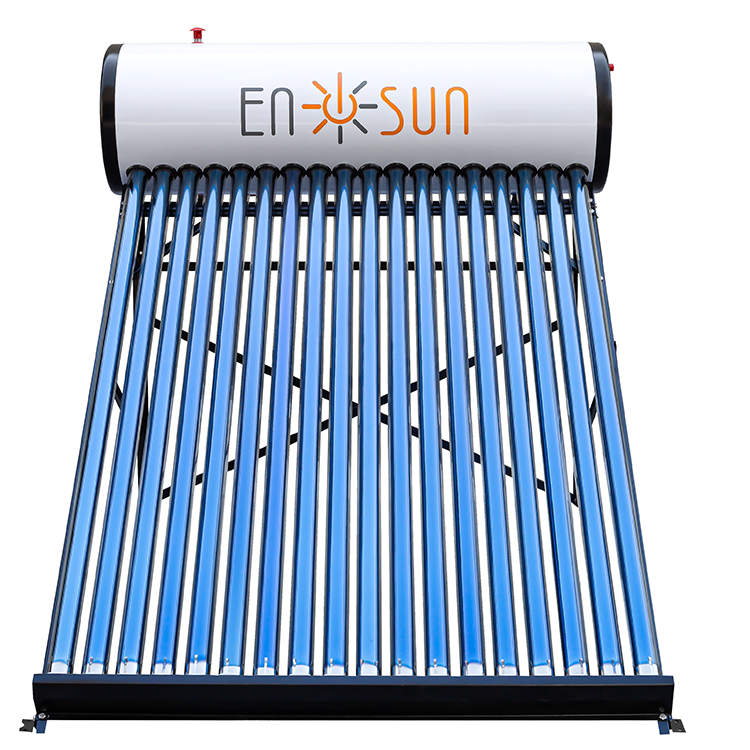

Non-pressure Solar Water Heater
-
Inner tank:
-
SUS304-2B Stainless Steel
-
Outer tank:
-
Stainelss Steel
-
Frame:
-
Stainless Steel SUS201-1.2mm
-
Tube:
-
Three Target 58-1800MM
-
Use:
-
Shower Room
-
Accessories:
-
Ecectric Heating
-
Tank capacity:
-
80L/100L/120L/150L/180L/200L/250L/300L/360L/500L
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
China
-
Brand Name:
-
ENSUN
-
Model Number:
-
CNP 100L-300L
-
Product name:
-
Non-pressure Solar Water Heater
-
Inner tank:
-
SUS304-2B Stainless Steel
-
Outer tank:
-
Stainelss Steel
-
Frame:
-
Stainless Steel SUS201-1.2mm
-
Tube:
-
Three Target 58-1800MM
-
Use:
-
Shower Room
-
Accessories:
-
Ecectric Heating
-
Tank capacity:
-
80L/100L/120L/150L/180L/200L/250L/300L/360L/500L
Products Description
Compact non pressure solar water heater relies on the nature circulation of the water between solar tubes and the water tank.Thermosyphon systems work on principal of heat rising. The water enters in the bottom of the collector and rises to the tank as it warms. The advantage of this system is that solar heat is stored in a well-insulated tank, so hot water can be used at any time without the penalty of overnight losses.
Moreover the insulation of the tank can protect heat during 3 days without heat loss.
Moreover the insulation of the tank can protect heat during 3 days without heat loss.
Features of Solar Water Heater. Quick Inquiry
(1). Cheap and reliable solution, Simple structures, Easy installation.
(2). High efficiency of heating,water heated by sun light directly.
(3). Withstands water pressure no more than 0.1MPa.
(4). Operated without any power supplying.
(5). Electric heater can be used as back-up in rainy days.
(6). Hot water can be used directly, or can be used as a pre-heated.
(7). Water flow in the vacuum tubes and is operated when confined.
(8). Tank is equipped with electric water heater setting, automatic temperature controller(optional ).
(9). the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
(2). High efficiency of heating,water heated by sun light directly.
(3). Withstands water pressure no more than 0.1MPa.
(4). Operated without any power supplying.
(5). Electric heater can be used as back-up in rainy days.
(6). Hot water can be used directly, or can be used as a pre-heated.
(7). Water flow in the vacuum tubes and is operated when confined.
(8). Tank is equipped with electric water heater setting, automatic temperature controller(optional ).
(9). the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
Product Details Of Solar Water Heater
|
|
Absorbing
Area
|
Vacuum tube
|
|
|
Tank Capacity
|
Qty per
|
||
|
|
|
|
|
|
|
20GP/40HQ
|
||
|
MODEL NO.
|
|
|
|
|
|
Container
|
||
|
|
(m2)
|
Diameter(mm)
|
Length(mm)
|
No.(pcs)
|
(Liter)
|
(set)
|
||
|
ENSUN-CNP80-58/1.8
|
0.8
|
58
|
1800
|
8
|
80
|
92/235
|
||
|
ENSUN-CNP100-58/1.8
|
0.8
|
58
|
1800
|
10
|
100
|
78/200
|
||
|
ENSUN-CNP120-58/1.8
|
0.96
|
58
|
1800
|
12
|
120
|
68/170
|
||
|
ENSUN-CNP150-58/1.8
|
1.9
|
58
|
1800
|
15
|
150
|
55/141
|
||
|
ENSUN-CNP180-58/1.8
|
2.16
|
58
|
1800
|
18
|
180
|
48/118
|
||
|
ENSUN-CNP200-58/1.8
|
2.4
|
58
|
1800
|
20
|
200
|
42/108
|
||
|
ENSUN-CNP240-58/1.8
|
2.8
|
58
|
1800
|
24
|
240
|
36/90
|
||
|
ENSUN-CNP300-58/1.8
|
3.6
|
58
|
1800
|
30
|
300
|
28/70
|
||
|
ENSUN-CNP360-58/1.8
|
4.3
|
58
|
1800
|
36
|
350
|
24/62
|
||
|
Material of inner tank
|
|
0.31mm-0.5mm thickness,food grade SUS304-2B or SUS316L
|
|
|
|||
|
Material of outer tank
|
|
0.4mm thickness,Stainless steel 202 or SUS304
|
|
|
|||
|
Insulating layer
|
|
50-55mm thickness,45kg/m3 high density polyurethane foamed
|
|
|
|||
|
Inlet and outlet hole
|
|
Male G 1/2,3/4……
|
|
|
|||
|
Max. pressure
|
|
0.05Mpa
|
|
|
|||
|
Solar collector tube
|
|
3.3 Borosilicate glass with Cu-SS-ALN/ANL. coating
|
|
|
|||
|
Thickness of glass tube
|
|
1.6mm/1.8mm/2.0mm/2.2mm
|
|
|
|||
|
Vacuum tube tightness
|
|
P≤0.005 Pa |
|
|
|||
|
Average heat
loss coefficient |
|
ULT=0.6~0.7W/(m2.C)
|
|
|
|||
|
Bracket(frame)
|
|
1.2mm thickness stainless steel or 1.5mm galvanized steel
|
|
|
|||
|
Frame angle
|
|
20/38/45 degrees
|
|
|
|||
|
Structure of tank:
|
|
5 holes for air vent,overflow,water inlet and outlet,electric heater
|
|
|
|||
|
Welding
|
|
Argon arc welding
|
|
|
|||
|
Fastening pieces:
|
|
Made of stainless steel screw
|
|
|
|||
|
Tank capacity
|
|
From 50-500L
|
|
|
|||
