Quick Details
-
Cutting Area:
-
320X6000mm
-
Cutting Thickness:
-
0.2~20mm
-
Control Software:
-
Weihong
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CM CNC
-
Weight (KG):
-
5000 KG
-
Products handled:
-
Square And Round Steel Tube
-
Round Steel Pipe:
-
20~320mm(Diameter Length)
-
Square Steel Pipe:
-
20~226mm(Diagonal Length)
-
H Beam Steel:
-
20~226mm(Diagonal Length)
-
Channel Steel:
-
20~226mm(Diagonal Length)
-
Angle Steel:
-
20~226mm(Diagonal Length)
-
Voltage:
-
AC380V/50Hz,Three Phase(Optional)
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0~90m/min
-
Control System Brand:
-
WEIHONG
-
Cutting Area:
-
320X6000mm
-
Cutting Thickness:
-
0.2~20mm
-
Control Software:
-
Weihong
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CM CNC
-
Weight (KG):
-
5000 KG
-
Products handled:
-
Square And Round Steel Tube
-
Round Steel Pipe:
-
20~320mm(Diameter Length)
-
Square Steel Pipe:
-
20~226mm(Diagonal Length)
-
H Beam Steel:
-
20~226mm(Diagonal Length)
-
Channel Steel:
-
20~226mm(Diagonal Length)
-
Angle Steel:
-
20~226mm(Diagonal Length)
-
Voltage:
-
AC380V/50Hz,Three Phase(Optional)
Machine Features
1.
Cross border cutting
, this machine can cut metal pipes between the two clamps of the rotary, there are three advantages for the cross border cutting as below:
1) Less waste, the laser head can cut materails near the back clamp, so it will save materails for the user.
2)Save floor space, the laser head can move back 6m, it can save much space for users.
3)Can cut very long pipes easiler, protect rotary clamps. If this machine cut very long pipes, the pipe can only need forward out 6m, then the laser head can cut on the whole pipe. If the metal pipe forward out too long, it will damage the clamps soon.
2. The back rotary clamp can feed pipes automatically.
3. The cross beam can move back 6m,it’s enough for cutting the whole pipe.
4. Intellignt Support part for very long metal pipe, the support part can support the long metal pipe for reducing the pressure of the rotary clamp, this is optional part
1) Less waste, the laser head can cut materails near the back clamp, so it will save materails for the user.
2)Save floor space, the laser head can move back 6m, it can save much space for users.
3)Can cut very long pipes easiler, protect rotary clamps. If this machine cut very long pipes, the pipe can only need forward out 6m, then the laser head can cut on the whole pipe. If the metal pipe forward out too long, it will damage the clamps soon.
2. The back rotary clamp can feed pipes automatically.
3. The cross beam can move back 6m,it’s enough for cutting the whole pipe.
4. Intellignt Support part for very long metal pipe, the support part can support the long metal pipe for reducing the pressure of the rotary clamp, this is optional part
Technical Parameters
|
Product Name
|

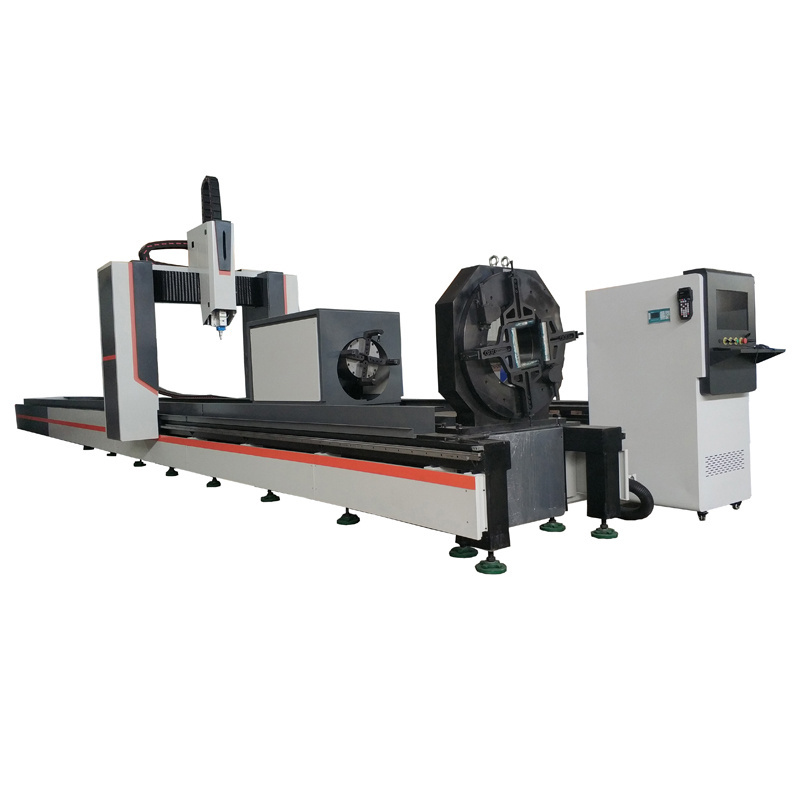

5 Axis Steel Tube Fiber Laser Cutting Machine
|
|
Model
|
CMF-3206/CMF-4206/CMF-5006/CMF6006
|
|
The Cutting Diameter For Metal Tube
|
20~320mm/20~420mm/20~500mm/20~600mm
|
|
The Length For Metal Tube
|
6m/9m/12m
|
|
Control System
|
Weihong
|
|
Fiber Laser Power
|
1000W/1500W/2000W/3000W/4000W/6000W/8000W/12000W
|
|
Cutting Accuracy
|
±0.02mm
|
|
Cutting Thickness
|
0.2~20mm
|
|
Assistant Gas
|
Compressed Air/Oxygen/Nitrogen
|
|
Cutting Materials
|
H-beam steel/Round Steel Pipe/Square Steel Pipe/Channel Steel/Angle Steel
|
|
Total Power
|
25KW
|
|
Net Weight
|
5000KGS
|
|
Voltage
|
AC380V/50Hz,Three Phase(Optional)
|
