Quick Details
-
Brand Name:
-
DARIBO
-
Production Capacity:
-
2-4T/H
-
Voltage:
-
380V50HZ 3Phase
-
Power:
-
7.5KW
-
Weight:
-
780 KG
-
Dimension(L*W*H):
-
2050*1220*1780mm
-
Keywords:
-
Suasage Processing Machine
-
Name:
-
Sausage Make Machine Production Line
-
Function:
-
Sausage Filling Making Machine
-
Product name:
-
Vertical Meat Sausage Stuffer
-
Type:
-
Hydraulic System
-
Material:
-
304 Stainless Steel
-
Application:
-
Sausage Processing Industrial
-
Usage:
-
Sasuage Processing
-
Model:
-
DRB-ZG6600
-
MOQ:
-
1 Set
Quick Details
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
Other
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DARIBO
-
Production Capacity:
-
2-4T/H
-
Voltage:
-
380V50HZ 3Phase
-
Power:
-
7.5KW
-
Weight:
-
780 KG
-
Dimension(L*W*H):
-
2050*1220*1780mm
-
Keywords:
-
Suasage Processing Machine
-
Name:
-
Sausage Make Machine Production Line
-
Function:
-
Sausage Filling Making Machine
-
Product name:
-
Vertical Meat Sausage Stuffer
-
Type:
-
Hydraulic System
-
Material:
-
304 Stainless Steel
-
Application:
-
Sausage Processing Industrial
-
Usage:
-
Sasuage Processing
-
Model:
-
DRB-ZG6600
-
MOQ:
-
1 Set
Products Description
Sausage Filling Line

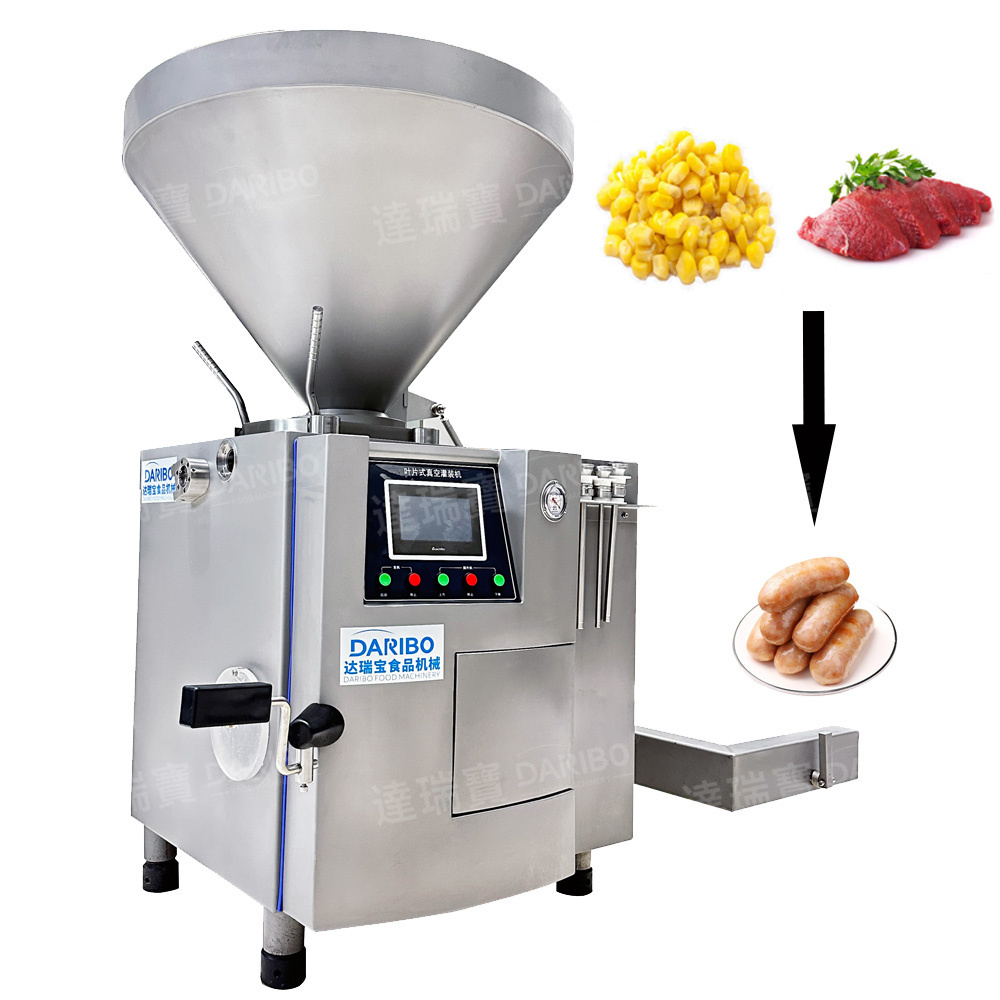

Sausage Filling Machine—DRB-ZG6000
Used to make various ham and ham sausage products. Installation of the tigria mechanism allows the irrigation of natural and protein casing products.
Feature:
① Made of high-quality stainless steel, easy to clean, and in line with national health standards.
② Key components such as the cavity, rotor, blades, and spindle are all processed by machining centers to ensure the manufacturing accuracy and interchangeability of the parts. And adopts special heat treatment process. Has high smoothness and good wear resistance.
③The filling machine uses a programmable controller (PLC) as the core and imported servo motors as the power, integrating automation technology, computer technology, and communication technology.
It is a new type of industrial automatic control equipment.
④ The filling machine can be equipped with an automatic knotting device and a material elevator. Automatic twisting equipment is suitable for natural casings, protein casings, smoked and other products. The speed can be adjusted according to different products and raw materials.
⑤ It can work independently or be matched with the casing machine to achieve continuous automated production.
Sausage Knitting Machine—DRB-GN1200
Mainly used for twisting sausages.
It is controlled by PLC and powered by servo motor. It is a new type of industrial automation equipment that integrates automation technology, computer technology, and communication technology. It has the characteristics of flexible programming, multiple functions, high efficiency, and simple operation.
Sausage Hanging Machine—DRB-GG2200
Mainly used for hanging sausages to facilitate processing in the next process.
Key components are manufactured by machining centers, ensuring part precision and accuracy of movement. The material is made of high-quality alloy steel and stainless steel, and has been specially treated to give it a high finish and excellent wear resistance.
Product Detail
Sausage Filling Machine—DRB-ZG6000
Working Chamber
Control Panel
Hoist
Sausage Knitting Machine—DRB-GN1200
Kink Mouth
Control Panel
Synchronized Traction Belt
Sausage Hanging Machine—DRB-GG2200
Metal Sensor
Hook Up
Linker
Product Paramenters
|
Model
|
DRB-ZG6600
|
DRB-GN1200
|
DRB-GG2200
|
||
|
Power
|
7.5KW
|
3KW
|
2KW
|
||
|
Voltage
|
380V50HZ 3Phase(can be customize)
|
|
|
||
|
Dimension(L*W*H)
|
2050*1220*1780mm
|
1310*550*1080mm
|
2600*450*1130mm
|
||
|
Capacity
|
900-2000Ppices/hour
|
800-1500Ppices/hour
|
800-1200Ppices/hour
|
||
|
Weigt
|
780KG
|
350KG
|
150KG
|
||
Finished Product
