Quick Details
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
550 mm
-
Positioning Accuracy (mm):
-
0.005
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2300*1700*1930
-
Brand Name:
-
weihui
-
Model Number:
-

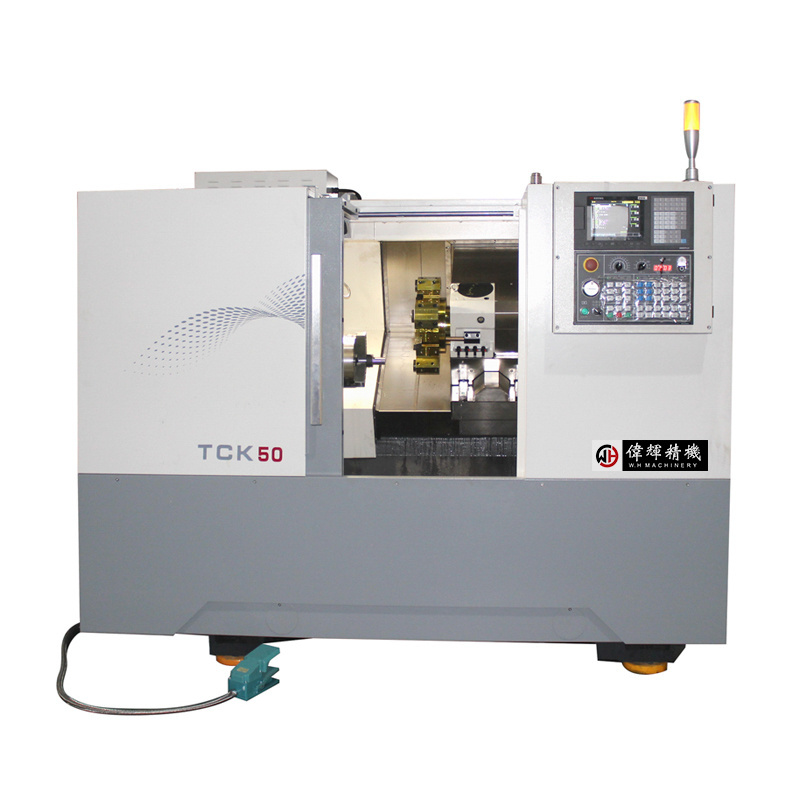

TCK50
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3600
Quick Details
-
Type:
-
Slant Bed Lathe
-
Max. Length of Workpiece (mm):
-
500
-
Year:
-
least date
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
550 mm
-
Positioning Accuracy (mm):
-
0.005
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2300*1700*1930
-
Brand Name:
-
weihui
-
Model Number:
-
TCK50
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3600
Products Description
Product Paramenters
|
Item
|
Unit
|
Specification
|
|
Max.swing diameter over bed
|
mm
|
500
|
|
Max.processing length
|
mm
|
500
|
|
Max. processing diameter
|
mm
|
360
|
|
Standard processing diameter
|
mm
|
240
|
|
Max. swing diameter over pallet
|
mm
|
300
|
|
Spindle head form
|
|
A2-6
|
|
Spindle bore
|
mm
|
65
|
|
Spindle speed range
|
r/min
|
50～4500
|
|
Maximum output torque of spindle
|
Nm
|
177
|
|
Spindle speed mode
|
|
Frequency stepless speed
|
|
hydraulic chuck Size
|
mm
|
8inch
|
|
X axis rapid feed
|
m/min
|
30
|
|
Z axis rapid feed
|
m/min
|
30
|
|
X axis travel
|
mm
|
200
|
|
Z axis travel
|
mm
|
550
|
|
Tailstock travel
|
mm
|
450
|
|
Tailstock sleeve travel
|
mm
|
100
|
|
Tailstock sleeve taper
|
|
MT5
|
|
Standard turret
|
|
Horizontal 8-station
|
|
Disc Workpiece
|
kg
|
200(with chuck and other accessories )
|
|
Shaft workpiece
|
kg
|
500(with chuck and other accessories )
|
|
Weight
|
kg
|
3600
|
|
Machine size(LxWxH)
|
mm
|
2300×1700×1930
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
