Quick Details
-
Weight (KG):
-
800
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HMD
-
Dimension(L*W*H):
-
1700*1300*1400mm
-

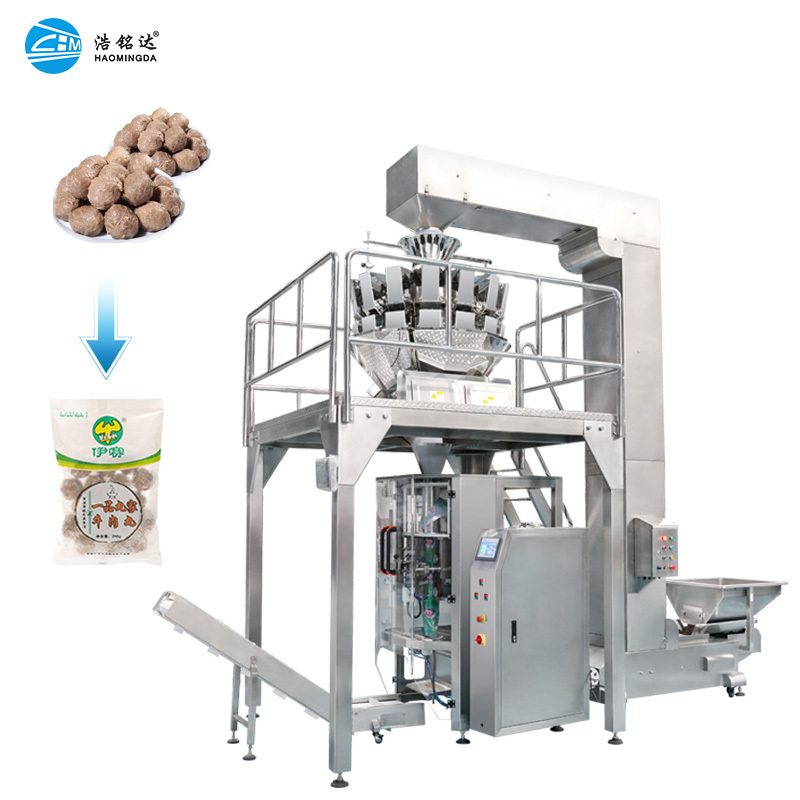

Product name:
-
Vertical Packing Machine
-
Bag type:
-
Back Seal Bag
-
Machine type:
-
HMD-420
-
Packing speed:
-
30-80bags/min
-
Packing material:
-
Plastic Film
Quick Details
-
Function:
-
FILLING, Laminating, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
800
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HMD
-
Dimension(L*W*H):
-
1700*1300*1400mm
-
Product name:
-
Vertical Packing Machine
-
Bag type:
-
Back Seal Bag
-
Machine type:
-
HMD-420
-
Packing speed:
-
30-80bags/min
-
Packing material:
-
Plastic Film
|
Model
|
HMD-620
|
HMD-730
|
|
Packing speed
|
50bag/min
|
45bag/min
|
|
Bag-making size
|
200-400*100-300mm
|
200-450*140-350mm
|
|
Type of bag making
|
pillow bag，gusseted bag，punched hanging bag
|
pillow bag，gusseted bag，punchedhanging bag
|
|
Max.Film width
|
620mm
|
730mm
|
|
Film thickness
|
0.04-0.09mm
|
0.06-0.12mm
|
|
Air consumption
|
0.8Mps 0.5m3/min
|
0.8Mps 0.5m3/min
|
|
Supply voltage
|
4Kw 220V 50Hz
|
4.5Kw 220V 50Hz
|
|
Machine size
|
1345*1580*1950
|
1780*1350*2050
|
|
Host weight
|
800kg
|
900kg
|
Applications:
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips,
peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps,
pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps,
pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
roduct Details
Easy Control Touch Screen
Siemens imported PLC control system, color touch screen, easy to operate, intuitive and efficient. It has an automatic warningprotection function to minimize losses.
Full 304SS ten head weigher
10-head combination balance used with computer, high precision Jingwei digital sensor can measure in a short time.
Sealing and cutting device
Independent PID temperaature control,thermal heating bilaateral middle strip,the product back seal sealing,to ensure tightness.
Film deliver
The outer packaging of the multi-axis film rolling device makes the film smoother.
High Speed Date Printer
Print the producing and expire date flexible adjustment date format.
Siemens frequency
Servo motor, intelligent induction material roll film, less wear, easy maintenance and long life.
