Quick Details
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
740*740*1650mm
-
Power (kW):
-
0.25
-
Weight (KG):
-
286 KG
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLDE
-
Marketing Type:
-
Hot Product
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
740*740*1650mm
-
Power (kW):
-
0.25
-
Weight (KG):
-
286 KG
Products Description

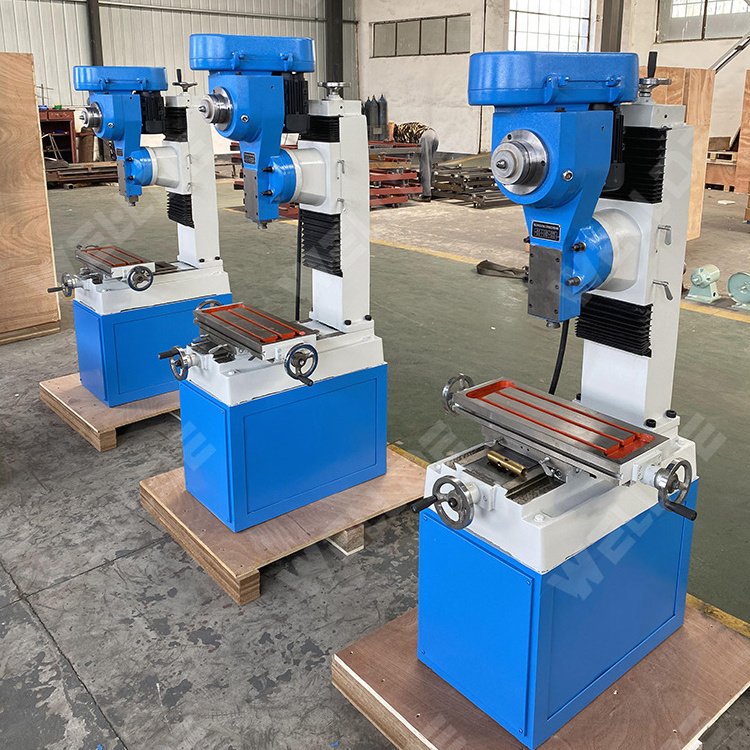

China Small Vertical Slotting Machine For Metal
Specification
|
Model
|
|
CX-100
|
CX-125
|
|
|
The biggest slotting(mm)
|
|
100
|
125
|
|
|
Minimum number of stroke (times/min))
|
|
60
|
60
|
|
|
Maximum stroke times (times/min)
|
|
350
|
350
|
|
|
The spindle speed
|
|
6
|
6
|
|
|
For the turning Angle of rest
|
|
90
|
90
|
|
|
Table size (mm)
|
|
500*200
|
500*200
|
|
|
Table travel (mm)
|
|
200*150
|
200*150
|
|
|
The motor power (W)
|
|
250
|
370
|
|
|
Overall dimensions (mm)
|
|
740*740*1650
|
740*740*1650
|
|
|
The net weight/gross weight (Kg)
|
|
236/249
|
243/255
|
|
|
Installation size |
Adapter T indexing circle
|
150
|
150
|
|
|
|
Turret rotation angle
|
360
|
360
|
|
|
|
Adapter T thread
|
M12*80
|
M12*80
|
|
