Quick Details
-
Dimension(L*W*H):
-
5600*1850*860mm gold shaking table
-
Weight:
-
750kg mineral separator shaking table
-
Warranty:
-
1 Year
-
Certification:
-
CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Kinds of mineral ore separating
-
Capacity:
-
0.5-2Tph
-
Feeding size:
-
0-2mm
-
Deck Material:
-
Fiberglass Reinforced Plastic
-
After sale service:
-
Provide Engineer Service Overseas
-
Installation:
-
Under Guidance/by set up video
-
Model:
-
LS4500/6S4500/LY2100/LY3000/LY1100
-
Effciency:
-
mineral separator machine
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Tongli mineral separator shaking table
-
Voltage:
-
380V(required) gold shaking table
-
Dimension(L*W*H):
-
5600*1850*860mm gold shaking table
-
Weight:
-
750kg mineral separator shaking table
-
Warranty:
-
1 Year
-
Certification:
-
CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Kinds of mineral ore separating
-
Capacity:
-
0.5-2Tph
-
Feeding size:
-
0-2mm
-
Deck Material:
-
Fiberglass Reinforced Plastic
-
After sale service:
-
Provide Engineer Service Overseas
-
Installation:
-
Under Guidance/by set up video
-
Model:
-
LS4500/6S4500/LY2100/LY3000/LY1100
-
Effciency:
-
mineral separator machine
Main equipment available: Gold Mining Equipment Earthquake Shake Table Shaking Table
Jigger machine
Trommel scrubber
Spiral separator
Flotation machine
Centrifugal concentrator
Jaw crusher
Mobile trommel
small
Hammer mill
Fixed trommel
Ball mil
l
Complete alluvial gold line
C
omplete rock gold line
Please CLICK the above items for more information! Full Plant Design is Available for both Rock and Alluvial type minerals.

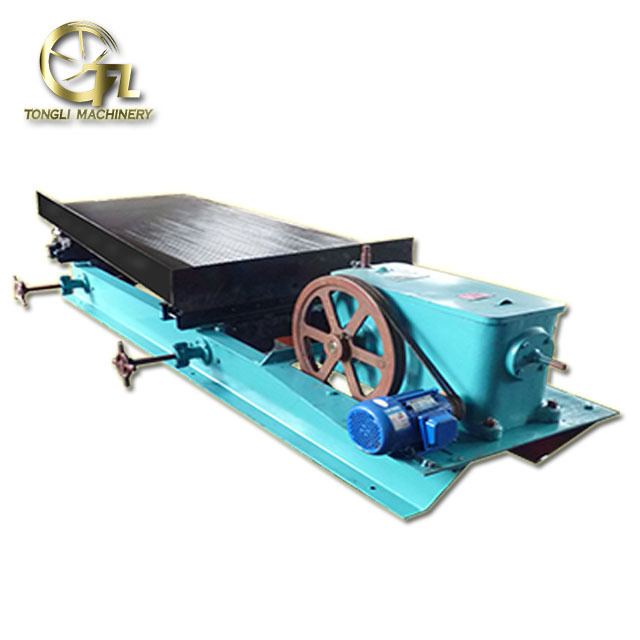

Gold Mining Equipment Earthquake Shake Table Shaking Table
The Shaking Table(Earthquake Shake Table ) is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Earthquake Shake Table
Gold Mining Equipment Earthquake Shake Table Shaking Table
The Earthquake Shake Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope s 2-0.22mm. earthquake shaking table| Technical Specification | |||||
| Model | LS4500 | LY3000 | LY2100 | LY1100 | |
| Deck size | mm | 4500*1850*1560 | 3000*1620*1100 | 2100*1050*850 | 1100*500*430 |
| Feeding size | sand ore | -2 | -2 | -2 | -2 |
| slime ore | -0.074 | -0.1 | -0.074 | -0.074 | |
| Capacity (t/h) | sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| slime ore | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension | mm | 5600*1850*860 | 4075*1320*780 | 3040*1050*1020 | 1530*500*800 |
1.Big channel support shaking table ---28#channel support
Gold Mining Equipment Earthquake Shake Table Shaking Table
2.Small channel support shaking table---10# channel support
Gold Mining Equipment Earthquake Shake Table Shaking Table
3.Small channel support shaking table---10# channel support
Gold Mining Equipment Earthquake Shake Table Shaking Table
Main Features
Earthquake Shake Table
1) High separation accuracy. It can get final concentrates, middling, and tailing only for one time separation of the raw ore. Earthquake Shake Table
Gold Mining Equipment Earthquake Shake Table Shaking Table
2) High concentration ratio .small gold shaker table
Gold Mining Equipment Earthquake Shake Table Shaking Table
3) High separation efficiency. Earthquake Shake Table
Gold Mining Equipment Earthquake Shake Table Shaking Table
4) Easier safeguard
earthquake shaking table
Gold Mining Equipment Earthquake Shake Table Shaking Table
5) The frequency stroke is easier to be adjusted. small gold shaker table
|
Detail Image
e
|
Gold Mining Equipment Earthquake Shake Table Shaking Table
|
Name: Deck / Table gold shaking table Tongli are 3 different deck designs available:
(1) The coarse ore deck for 0.5 mm to 2 mm;
(2) The fine sand deck for 0.074 mm to 0.5 mm;
(3) The slime deck for 0.05 mm to 0.074 mm. |
Name: Head motion / Driving device gold shaking table gold shaking table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum. gold shaker table It is one of the most important part of shaking table |
|
Name: Support device gold shaking table Tongli mainly have 3 supporting device: #28 channel steel type support #10 channel steel type support #8 channel steel type support |
Name: Motor engine gold shaking table The motor engine for our godl shaker table is the type which is specially applied for export and which is with high quality. table separator It is different from the one for domestic market.
Siemens motors are available
|
Gold Mining Equipment Earthquake Shake Table Shaking Table
|
LCL shipment
of
shaking table
Pack after assemble
For single set, the shaking table is usually packed in steel frame after assemble. |
|
FCL shipment of gold shaking table Pack after assemble
For several sets.be sent out by 20/40 container.don't have package Gold Mining Equipment Earthquake Shake Table Shaking Table |
|
Jiangxi Tongli Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 15 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on . |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1. Are you a trade company or a manufacturer?
A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.
2. What is your delivery time?
A: The delivery time is about 7-20 days after receipt of payment.
3. What is the payment terms?
A: The payment term is 45% payment in advance, 55% balance before shipment.
4. Why choose you as supplier?
1). High quality & most competitive price
We are a factory who could provide the lowest price to you.
We are top 10 and with more than 15 years experiences in mining equipment.
2). Fast delivery --Goods will be shipped within 7 - 30 days based on order quantity.
3). Best service --Overseas customers can enjoy 24/7 after-sale service and dispatching service
4). 3D & CAD flow chart desig
Welcome to sent inquiry and welcome to visit our factory!
