customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch
customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch
customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch
customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch
customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch
customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch
customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch
customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch

customized wifi rf 433 remote control switch 12v wireless switch tuya smart home automation smart life tuya wifi smart switch

FOB Reference Price: Get Latest Price
≥1 Pieces
US $9.6
≥100 Pieces
US $8.5
≥1000 Pieces
US $7.9
≥5000 Pieces
US $6.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Customized support:
For details, please consult
Place of Origin:
Guangdong, China
Brand Name:
GLC
Model Number:
GLC-DZ-AC03
Operating Temperature:
-20 to 70 ℃
Product Name:
WiFi Smart Light Switch
Color:
Black
Usage:
Motor Light
Material:
PC
Application:
Tuya Smartlife App
Feature:
Wireless Reomote Control
Protocol:
433
Voltage:
DC5V-48V
Function:
APP Remote Control
Key Feature2:
Alexa Google Home IFTTT
Certification:
ce

Quick Details

Max. Current:
10A
Max. Voltage:
48v
Network:
For details, please consult
Customized support:
For details, please consult
Place of Origin:
Guangdong, China
Brand Name:
GLC
Model Number:
GLC-DZ-AC03
Operating Temperature:
-20 to 70 ℃
Product Name:
WiFi Smart Light Switch
Color:
Black
Usage:
Motor Light
Material:
PC
Application:
Tuya Smartlife App
Feature:
Wireless Reomote Control
Protocol:
433
Voltage:
DC5V-48V
Function:
APP Remote Control
Key Feature2:
Alexa Google Home IFTTT
Certification:
ce
Product Presentation
Design of Remote Antenna Access Port:
Product Description
Product Name
Wireless Remote switch
Material
PC
APP
Smart life
Voltage
DC5V-48V
Working frequency
433Mhz
Maximum current
10a
Control mode
rf + wifi
Certificate

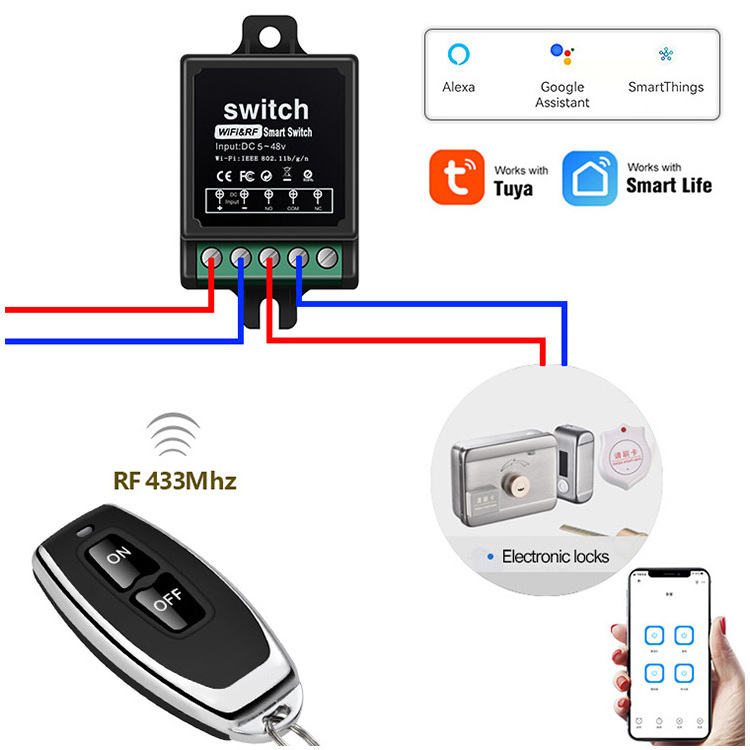

Installation instructions:
Operating mode description:
Working mode description:
Self locking mode: it is controlled by one key, and it is called self locking by pressing once to open and then pressing once to close.
Interlocking mode: When the remote controller has two buttons, one button is turned on and the other button is turned off, which is called interlocking.
Inching mode: controlled by one button, hold down the button of the remote controller, and the relay is closed; Release the remote control button, and the relay is disconnected; It is called inching.
Manual on/off: No need for remote control, press the learn button on the receiver, press on, and then press off.

Pairing Method:

Inching mode: controller is powered on,press the learn button 2 times in a row,indicator light is on,then press the ON or OFF button on the remote control panel,the indicator light turns off after flashing 3 times,indicates pairing is complete.
self-locking mode: controller is powered on,press the learn button 3 times in a row,indicator light is on,then press the ON or OFF key on the remote control panel,the indicator light flashes 3 times and then goes out,indicates pairing is complete.
Interlocking Mode: controller is powered on,press the learn button 4 times in a row,indicator light is on,press the ON button of the remote control,the indicator light flashes 3 times and then stays on,press the OFF key again,the indicator light flashes 3 times and then goes out,indicates successful pairing.
Clear code: controller is powered on,press the learn button 8 times in a row,the indicator light flashes first, then goes off,indicates that the clear encoding is successful.
Extensive application
