Quick Details
-
Brand Name:
-
KLQD
-
Acting type:
-
2/2 way direct acting
-
Fluid:
-
air, water, light oil
-
Fluid pressure:
-
0~1.6MPa
-
Sealing material:
-
NBR, Viton
-
Available size:
-
1/2"
-
Thread:
-
ZG,G,NPT
-
Voltage:
-
AC / DC
-
Timer:
-
Available
-
Brand:
-
KLQD
-
Description of goods:
-
air compressor electric air drain valve 16bar
Quick Details
-
Port Size:
-
1/2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
KLPT-16-1/2"
-
Brand Name:
-
KLQD
-
Acting type:
-
2/2 way direct acting
-
Fluid:
-
air, water, light oil
-
Fluid pressure:
-
0~1.6MPa
-
Sealing material:
-
NBR, Viton
-
Available size:
-
1/2"
-
Thread:
-
ZG,G,NPT
-
Voltage:
-
AC / DC
-
Timer:
-
Available
-
Brand:
-
KLQD
-
Description of goods:
-
air compressor electric air drain valve 16bar

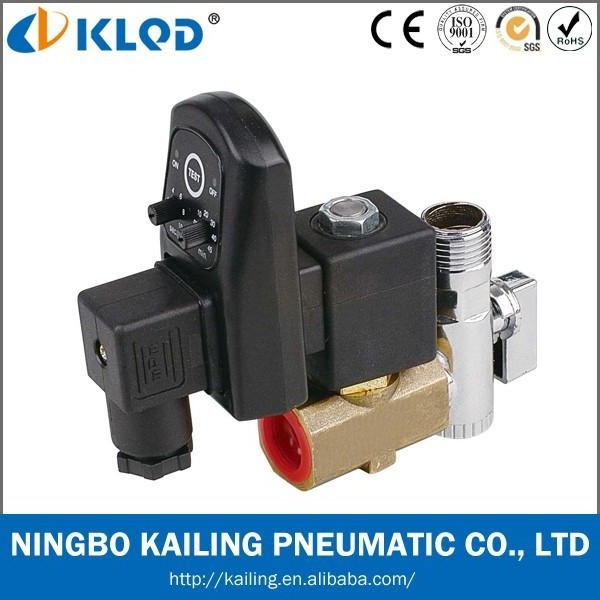

Air compressor electric air drain valve 16bar
Features :
Easy to install, fully automatic operation
Equipped with a ball valve filter, split with drain valve, an L-shaped structure
Specifications :
Voltage: AC DC
Voltage range: + - 10%
Time interval ( OFF ): 0.5--45 minutes (adjustable)
Discharge time ( ON ): 0.5--10 seconds (adjustable)
Manual test button: Yes( micro switch )
The current consumption: Max 4mA
Ambient temperature: -40 °C to 60 °C.
Protection grade: IP65
Shell material: Flame retardant ABS plastic
Electrical connection: DIN43650A
Indicator lamp: LED indicating power on / off
Type: two-way direct-acting valve
Flow aperture: 5 mm
Insulation class: H
In / out port size: 1/2"
Maximum working pressure: 1.6Mpa
Valve material: Forging brass
