Quick Details
-
Material:
-
Brass
-
Maximum pressure:
-
10bar
-
Ambient temperature:
-
-20℃~80℃
-
Medium temperature range:
-
5℃~90℃
-
Medium:
-
Water/Gas
-
Membrane:
-
EPDM
-
Pressure setting:
-
1.5/2/2.5/3/4/5/6/8/10
-
Interface Type:
-
Inlet external thread and Outlet internal thread thread
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand name:
-
ACOL
-
Product name:
-

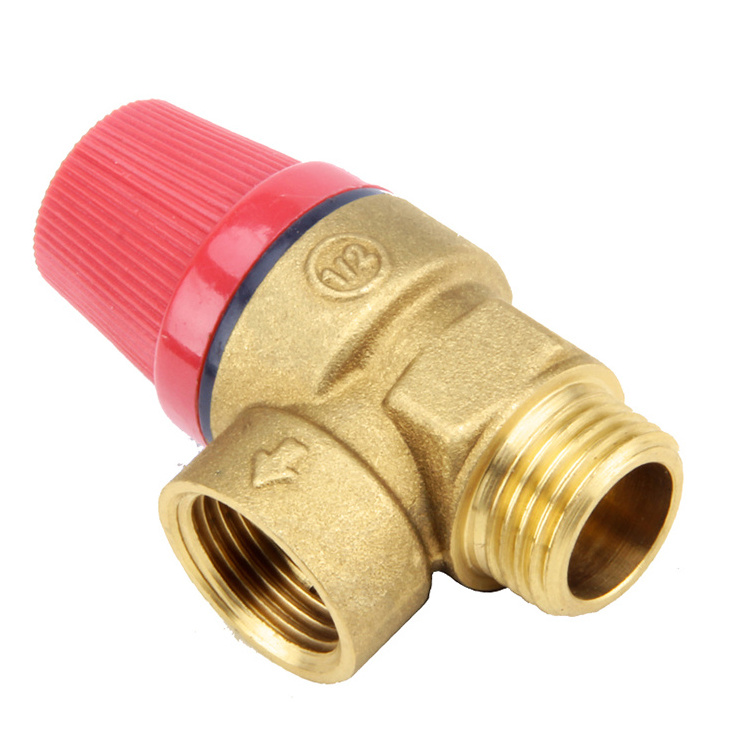

Warranty direct factory price replace hydraulic relief valve
-
Material:
-
Brass
-
Maximum pressure:
-
10bar
-
Ambient temperature:
-
-20℃~80℃
-
Medium temperature range:
-
5℃~90℃
-
Medium:
-
Water/Gas
-
Membrane:
-
EPDM
-
Pressure setting:
-
1.5/2/2.5/3/4/5/6/8/10
-
Interface Type:
-
Inlet external thread and Outlet internal thread thread
| Parameter | |
| Material | Brass |
| Maximum pressure | 10bar |
| Ambient temperature | -20℃~80℃ |
| Medium temperature range | 5℃~90℃ |
| Medium | Water/Gas |
| Membrane | EPDM |
| Pressure setting | 1.5/2/2.5/3/4/5/6/8/10 |
| Interface Type | Inlet external thread and Outlet internal thread thread |
Products Recommended
Heating system; Air-conditioning system; Thermal storage water system; Irrigation system
1, working principle:
SV pressure relief valve is mainly used for heating, air conditioning, heat storage hot water systems, irrigation systems, control of cold and heat sources and system pressure;
When the system pressure exceeds the set value of the safety valve, the safety valve opens automatically to release the system pressure to the atmosphere;
When the pressure is lower than the safe value, it is automatically closed so that the system with the safety valve installed can be operated safely.
2, installation instructions:
(1) The safety valve can be installed horizontally or vertically, but it cannot be installed upside down (ie the plastic knob cannot be in the lower part);
(2) The pressure relief port should be connected to the drainage pipe for drainage, and the red knob can be used to relieve the pressure manually.
Gas Burner High Pressure 1/2 3/4 Inch Brass Safety Relief Valve
- Packaging Details:Carton Boxes.
- Port: Shanghai
- Lead Time :
-
Quantity(Piece) 1-200 >200 Est. Time(days) 5 To be negotiated
