Quick Details
-
Weight:
-
200000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Production Capacity:
-
1-20t/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SOYU
-
Weight:
-
200000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Overview

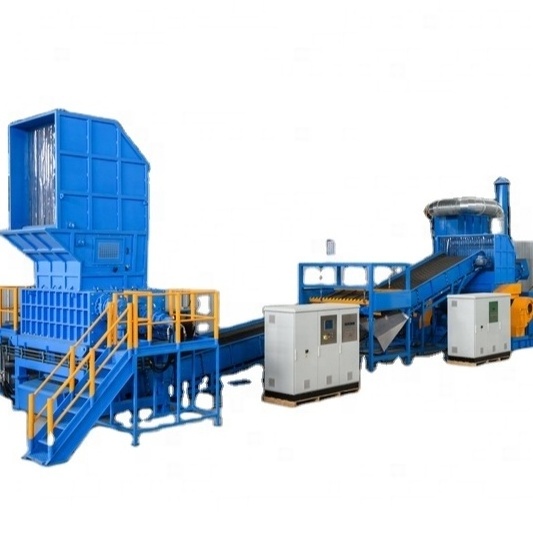

OCC Paper Dry Pulping Line
Waste paper recycling is a process of repeated papermaking, mainly recycling paper fibers in waste paper, which can greatly save resources and reduce pollutant emissions. In foreign countries, waste paper has the reputation of urban forest resources. Whether it is waste newspapers, book paper, office paper, or kraft paper, cardboard boxes, corrugated paper, etc., they are all valuable fiber raw materials used in papermaking. Using waste paper to make paper has the advantages of low energy consumption, low processing cost, low unit raw material cost, and reduced environmental pollution. Therefore, paper and cardboard produced from recycled fibers are called green products.
The waste paper shredder is a special equipment for waste paper and waste board. The unique design idea and processing technology of the waste paper shredder can make any shape of waste corrugated paper, cardboard, newspapers, waste books, cartons, paper tubes, paper tubes, cardboards. Wait for the material to be quickly processed into small pieces and collected to ensure that there is no dust.
SOYU has many successful cases and has created many high-quality waste paper crushing and dry pulp treatment equipment. Dry process waste paper pulping process waste paper dry pulping system provides a production method of waste paper dry pulp, which specifically includes the steps of waste paper pretreatment, waste paper crushing, dry pulping, pulse dust removal, strong magnetic iron removal, hydraulic packaging and so on. The production method of dry pulp is ingenious. After the processing of waste paper, it can turn waste into treasure, which is deeply loved by paper mills.
FEATURES AT A GLANCE
- Applications:
* Newspaper
* Corrugated paper
* Cardboard
* Carton
* Corrugated paper
* Cardboard
* Carton
Crushing Section:
Waste paper is sent to the chain conveyor by a mechanical grab, and enters the shredder's crushing chamber, then the shredder shreds it through blades' cutting and tearing. The shredded scrap paper is sent to the buffer bin through belt conveyor. In the middle of the belt conveyor, there is a powerful electromagnetic self-unloading iron remover, which is used to absorb iron impurities such as nails in waste paper materials. The clean waste paper will enter the buffer bin.
Pulping Section:
The crushed iron-removed scrap paper is sent from buffer distribution bin to two variable frequency feeding conveyors respectively, then is uniformly fed into the intelligent composite waste paper pulping machine through one distributing device.
After being crushed by the high-speed multi-hammers rotor, the waste scrap paper is made into fibrous form at one time through a special screen. After being pre-compressed by the lower double screw conveyors, fibrous products are twisted to the feeding conveyor of baler. Then through the feeding conveyor, they are fed into the baler for the baling process.
In view of the fire risk of dust-free dry pulping,
this pulping system is specially equipped with a water-blocking water mist spray device,
to prevent open flames from entering the pulse dust collector and causing major safety accidents.
TYPICAL APPLICATION RANGE
SALES AND SERVICE NETWORK
Successful Project
Project in
Malaysia
Project in US
Project in
Thailand
Project in US
Project in
Thailand
Project in
Taiwan
SERVICE
Non-standard customization
Shredder & Crusher customization
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
Recycling plant customization
Based on the feeding material size and requirements of subsequent steps, customized recycling plants are provided to meet customer’s expectations. SOYU custom recycling plants are small-footprint, energy saving and environmentally friendly equipment sets.
Installation and debugging
1. Single machine: SOYU standard single shredders are easy to operate and start-up—you only need to connect the power line to the electricity box. In order to save the purchasing cost for customers, SOYU offers off-site technical guidance service.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
