Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
3520
-
Color:
-
Blue,Yellow,Red
Quick Details
-
Functional design:
-
Multifunction
-
Dimensional tolerance:
-
<±1mm
-
Weight tolerance:
-
<±1%（Include）
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
3520
-
Color:
-
Blue,Yellow,Red
1. The bin is made of impact resistant modified PP material with high strength.
2. Resistance to common acid and alkali, surface water absorption less than 0.01%, good moisture resistance.
3. Adapt to ambient temperature - 25 ° C ~ 70 ° C.
4. The left and right buttons can be inserted, and the layers can be lifted up and down, which can effectively save the working space.
5. The transparent plate is attached with dust-proof label, which is easy to identify, replace and manage.
6. The standard colors are red, yellow and blue.
| Model |
External Dimension
LxWxH
|
Internal Dimension
(mm) |
Packing Units
(pc) |
Carton Dimension
(mm) |
Volume
(L) |
Stand Height
(mm) |
Load Capacity
(kg) |
Stack Capacity
(kg) |
| 1811B | 180x110x80 | 155x85x75 | 80 | 580x400x530 | 0.5 | 35 | 3 | 30 |
| 2515B | 250x150x125 | 220x125x120 | 40 | 810x540x400 | 1.7 | 35 | 10 | 100 |
| 3520B | 350x200x155 | 305x170x150 | 20 | 730x450x650 | 3.9 | 50 | 12 | 150 |
| 4520B | 450x200x180 | 405x165x170 | 12 | 670x490x570 | 6.4 | 50 | 20 | 200 |
| 4530B | 450x300x180 | 405x270x170 | 8 | 660x470x740 | 9.8 | 50 | 25 | 250 |
| 3850B | 380x500x150 | 330x470x140 | 8 | 830x400x525 | 15.5 | 80 | 50 | 300 |
| 6040B | 600x400x230 | 550x360x210 | 8 | 840x640x740 | 24.8 | 35 | 50 | 300 |
Stack Steps:

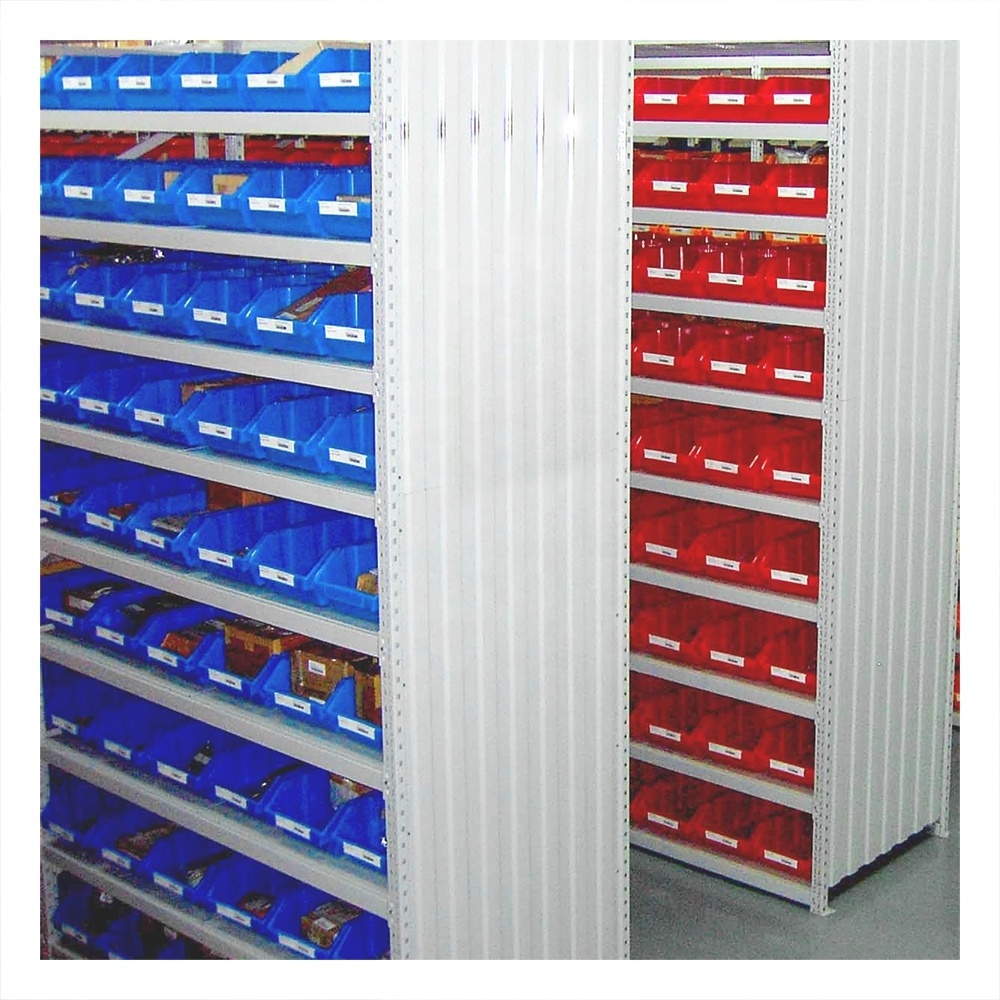

Could Use with Racks
