Quick Details
-
Brand Name:
-
XINYUN
-
Model Number:
-
XY-RL108B
-
Product name:
-
Face Recognition Device
-
Application:
-
Security Access Control Management
-
Communication:
-
USB
-
Function:
-
Automatic Face Recognition System
-
Material:
-
Aluminum Alloy
-
Language:
-
Support Multi-language
-
Warranty:
-
1 Year
-
Operating System:
-
LINUX System
Quick Details
-
Special Features:
-
Waterproof / Weatherproof, Thermal image, Temperature Measurement, Other
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo, Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINYUN
-
Model Number:
-
XY-RL108B
-
Product name:
-
Face Recognition Device
-
Application:
-
Security Access Control Management
-
Communication:
-
USB
-
Function:
-
Automatic Face Recognition System
-
Material:
-
Aluminum Alloy
-
Language:
-
Support Multi-language
-
Warranty:
-
1 Year
-
Operating System:
-
LINUX System

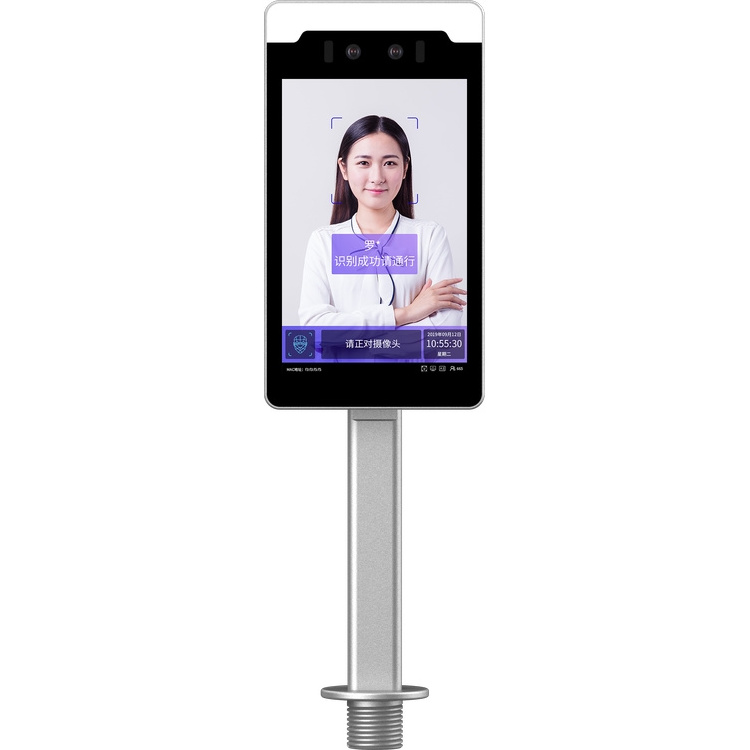

Biometric Face Recognition Access Control Device and time attendance reader
|
Product model |
108 R -B |
108 R -Z |
|
|
Basic parameters |
Installation scenarios |
Wall installation |
Gate installation |
|
Operating temperature and humidity |
-10 º C to 55 º C , <90º C RH |
||
|
Protection level |
IP5 5 |
IP5 5 |
|
|
Application scenarios |
Indoors |
||
|
Dimensions |
238*128*21 .5 mm (Height*Width*Thickness ) |
389 *128* 21.5 mm (Height*Width*Thickness ) |
|
|
Material |
Aluminum alloy |
||
|
System parameters |
System |
Embedded Linux system |
|
|
CPU |
High-performance embedded processor |
||
|
Storage |
Internal storage 1GB , data storage 8GB |
||
|
Display screen |
8 ’’ HD LCD with resolution of 800*1280 |
||
|
Lens focus |
4. 5 mm |
||
|
Camera |
Binocular camera, 200W pixels with WDR |
||
|
Recognition performance |
Recognition distance |
0. 3 - 3 m ( The best recognition distance is within 2 meters ) |
|
|
Recognition time |
Less than 4 00ms |
||
|
Storage capacity of face database |
1 : N, N<= 5 0000 |
||
|
Accuracy |
99% |
||
|
Peripheral interface |
Power interface |
1 x DC12V, DC005 female 2.1*5.5 |
|
|
USB interface |
1 x USB2.0 |
||
|
Relay output |
1 x on-off output, 2PIN 3.8 spacing terminal |
||
|
RJ45 cable interface |
1 x RJ45 Internet access |
||
|
Wiegand output interface |
1 x WG output |
||
|
Door sensor signal |
1 x door sensor detection |
||
|
Firefighting linkage |
1 x firefighting linkage |
||
