Product Details

{{item.text}}

Quick Details

Interface Standard:: CCS1+CCS1 / CCS2+CCS2 / CCS1+CCS2 / GB/T + GB/T

Output Current:: 250A Max.

Output Power:: 60KW~240KW

Input Voltage:: 400V~480V

Product Name:: Ampax DC EV Charging Station

Application:: Commercial Places

Rated Output Power:: 60KW/120KW/180KW/240KW

Start Method:: Plug and play, RFID, App

Installation Method:: Mode 3 Floor-standing Installation

Cable Length:: 5M 7.5M(Customizable)

OCPP:: OCPP 1.6J

Electric Protection Level:: Type 3R

Input Frequency Range:: 50/60Hz

Certificate:: cULus, FCC/IC, Energy Star, CE, ETL, CQC CCC

Quick Details

Place of Origin:: Sichuan, China

Model Number:: Ampax

Brand Name:: INJET

Interface Standard:: CCS1+CCS1 / CCS2+CCS2 / CCS1+CCS2 / GB/T + GB/T

Output Current:: 250A Max.

Output Power:: 60KW~240KW

Input Voltage:: 400V~480V

Product Name:: Ampax DC EV Charging Station

Application:: Commercial Places

Rated Output Power:: 60KW/120KW/180KW/240KW

Start Method:: Plug and play, RFID, App

Installation Method:: Mode 3 Floor-standing Installation

Cable Length:: 5M 7.5M(Customizable)

OCPP:: OCPP 1.6J

Electric Protection Level:: Type 3R

Input Frequency Range:: 50/60Hz

Certificate:: cULus, FCC/IC, Energy Star, CE, ETL, CQC CCC

Why Choose Us

Products Description

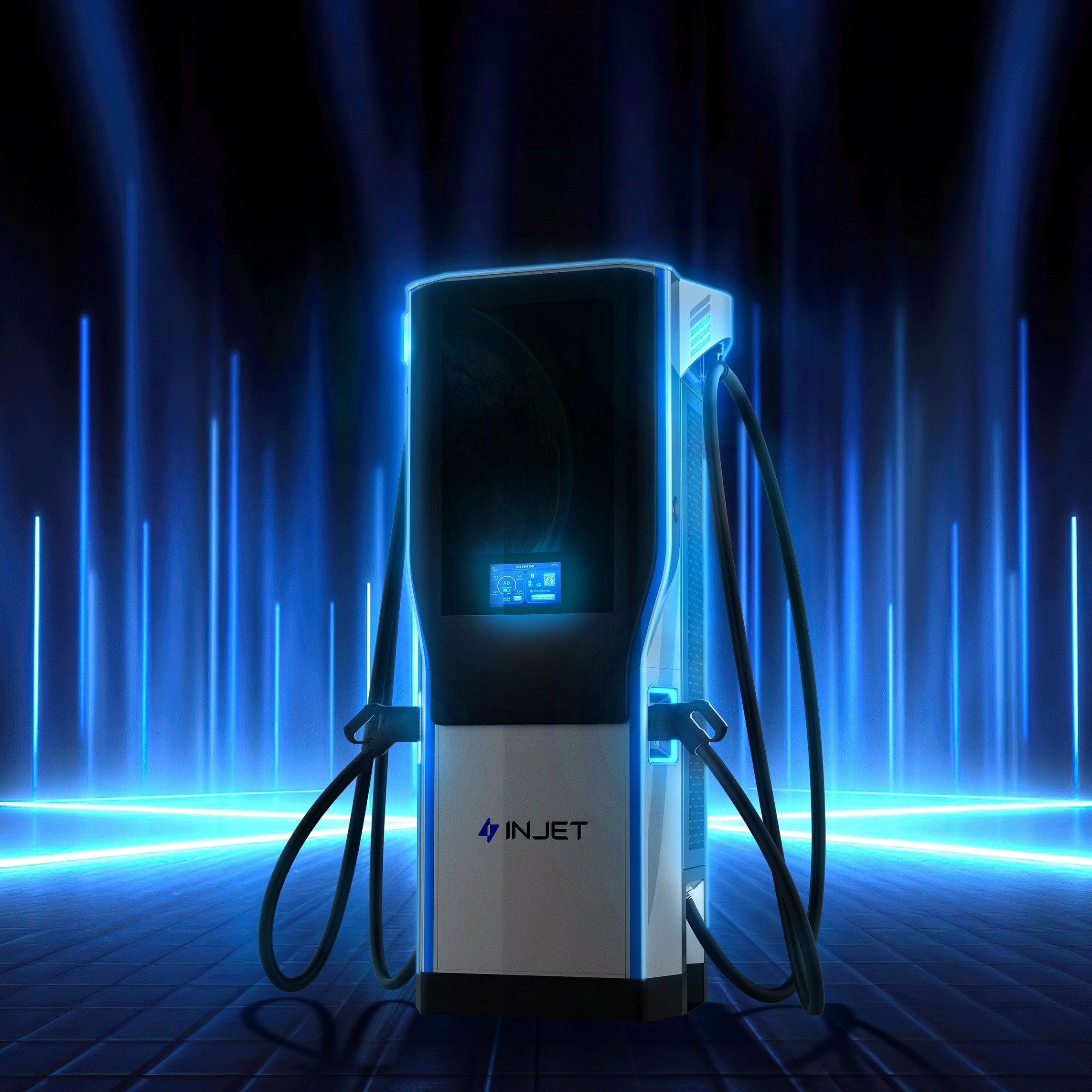

The Ampax Series DC Fast Charging Station For Commercial Business Operation

The Ampax Series DC fast charging station is suitable commercial use.

The make maintainance more flexible.

This floor-mounted DC EV Charging Station can be applicable for outdoor installation like parking lot of office building, hospital, supermarket, hotel etc.

With solar logic , OCPP, 4G and wifi, the The Ampax Series charging station can be controlled remotely.

The Smart Ampax DC Charger for Commercial Charging Solution

●Self-developed control module & Expandable design of split cabinet & Diversified scenario operation & Perfect choice for commercial use;

● Adapts to all electric vehicles, power supplies and mains;

● Powerful commercial charging solution within max current output reach 250A;

● With the smart APP, you can easily schedule your quick charging and adjust the current and power to your need;

● cULus, FCC/IC, Energy Star, CE, ETL, CQC CCC approved, , strictly comply with the health and safety standards;

● EU version & North American version are supplied;

● With OCPP 1.6J & 4G optional, Injet-Original is suitable for all parking lots in work places, super markets, apartments and communities;

● LCD touchable screen;
● Emergency stop function;
● Safe and reliable, with multiple fault protection;
● Charging module separated from control system, stable and safe performance;
● Constant power module and smart power allocation,high charging efficiency;
● Charging gun disconnected detection ensures safe charging;
● All the control system can be remotely or locally upgraded;
● LOGO Customize.

Product Paramenters

General Information
Input Voltage Rating	400 VAC ± 10%, 50/60Hz (EU Version/GBT Version) 480 VAC ± 10%, 50/60Hz (North American Version)
Power Wiring	3P+N+PE
DC Voltage Output	150 ~ 1000 VDC
Connector	CCS1+CCS1 / CCS2+CCS2 / CCS1+CCS2 / GB/T +GB/T
DC Power Output Rating	60 ~ 240 kW
The Maximum Output Current	250 A
PF(Power Factor)	> 0.98 (Load ≥ 50% )
THD-I	≤ 5% （Rating voltage input, Load ≥50%）
Peak Efficency	≥ 96%
Voltage Stabilized Accuracy	≤ ±0.5%
Current Stabilized Accuracy	≤ ±1%
Output Voltage Error	± 0.5%
Output Current Error	≤ ±1% (when output current ≥ 30A); ≤ ±0.3A (when output current < 30A)
Ripple Factor	≤ ±0.5%(RMS)
Electric Energy Measurement Method	Measuring DC output electric energy
Connector Mechanical Operating Life	≤ 10000 times
Certificate	cETLus, FCC/IC, Energy, CE
User Interface & Control
Charging Control	Plug and Play, RFID Card, App
Human-Machine Interface	10-inch LCD High-contrast touchscreen
Indicators	Yes. 4 LED indicators-Power/ Fault / Charging A / Charging B
Network Interface	4G / Ethernet (RJ45)
Communication Protocol	OCPP 1.6J
Environmental
Storage Temperature	-40 to 75℃ （-40 to 167℉) ambient
Operating Temperature	-20 to 50℃ （-22 to 131℉) ambient(derating output in 55℃)
Operating Humidity	Up to 95% non-condensing
Altitude	≤ 2000m
Cooling Method	Forced air cooling
Protection	Over Voltage Protection Over Load Protection Over-temp Protection Under Voltage Protection Short Circuit Protection Ground Protection Surge Protection Emergency Stop
Mechanical
Protection Ratings	Type 3R/IP54
Reference Dimension (W x D x H, mm)	10405802200
Equipment Weight	≤ 500 kg
Charging Cable Length	5m，7.5m, or Customize Length
Enclosure Material	Metal
Color	RAL 7032 (Gray)

Product Features

Elegant and Modern design

Metal enclosure

Double plug(CCS1+CC2)

7 inch touch screen

Easy to Operate

Plug and Charge

Swapping RFID card to charge

Controlled by App

Safety and Reliable

Full function- power sharing, DLB, Solar for optionCE,RoHS,Reach certification

Compatible with all

Indoor&Outdoor use
Residential&commercial use
Built to be compatible with all the EVs

Manufacturing Technique

The general DC charging stations are composed of DC smart energy meter, voltage sensor transmitter, insulation detector, main controller, switching power supply, charging power supply module, relay, AC contactor, DC contactor and so on. The assembled charging stations not only has complex production and assembly process, but also has high equipment failure rate, complicated operation and maintenance and high cost. Relying on the technical R & D advantages of the parent company, after years of technical research, Injet took the lead in launching "integrated EV charging power controller" in the industry in 2019. And obtained a number of national patents, and applied for PCT international paten.

Core Technology

It integrates BMS power supply, automobile communication, charging process control, insulation detection, voltage detection, electric energy DC metering, overcurrent protection, short circuit protection and other functions in one, highly integrated, ultra-small size. Greatly simplify the composition of the charging pile, the power controller + charging gun + charging module + display and communication part can be charged, speeding up the production efficiency of the whole pile, saving human resources; sharing power scheduling, improving charging efficiency.

As the core control component of DC fast charging pile, flexible power dispatching unit is completely developed by the company, which is equipped with power dispatching unit, output over-current and over-voltage protection, data communication and other functional components.

Integrated

Integrated power controller, integrated intelligent HMI, and built-in power module, requiring only 200 wiring boards and 100 wires, reducing by two-thirds compared to traditional DC charging stations.

RFID Card

Swiping the RFID card, you can easily start and stop the charging. One charger can allowed multiple authorized RFID cards making it safe to share with family members.

Injet APP

Injet charging app is user friendly with different languages and support Apple and Android system.You can adjust the current, reserve the charging time, and view the charging records on the APP.
