Quick Details
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Overseas service center available
-
njection Capacity:
-
1.4-1.9 oz
-
Clamping Force:
-
15tf
-
Certificate:
-
ISO 9001:2008
-
Color:
-
Green
-
Customization:
-
Available
-
Opening Stroke:
-
290-230mm
-
Clamping Force (kN):
-
15
-
Certification:
-
ISO 9001,CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Plastic Type:
-
Thermosetting
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Overseas service center available
-
njection Capacity:
-
1.4-1.9 oz
-
Clamping Force:
-
15tf
-
Certificate:
-
ISO 9001:2008
-
Color:
-
Green
-
Customization:
-
Available
-
Opening Stroke:
-
290-230mm
-
Clamping Force (kN):
-
15
-
Certification:
-
ISO 9001,CE
Product Description

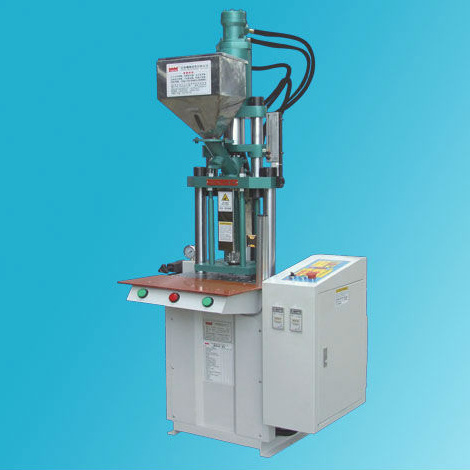

| Model No. | YT-15T-C | ||||
|
Injection Unit |
Screw Diameter | mm | 22 | 26 | |
| Theoretical Injection Volume | cm3 | 34 | 47 | ||
| Injection Weight(PS) | g(oz) | 39(1.4) | 55(1.9) | ||
| Max.Injection Pressure | kgf/cm2 | 1625 | 1164 | ||
| Injection Rate | cm3/s | 28 | 39 | ||
| Screw Speed Rotation | r.p.m | 0-215 | |||
|
Clamping Unit |
Clamping Force | tf | 15 | ||
| Clamping Stroke | mm | 190 | |||
| Min.Mold Thickness | mm | 100 | |||
| Max.Opening | mm | 290 | |||
| Max.Mould Size | mm | 350*350 | |||
| Platen/Slide Size | mm | 450*250 | |||
| Ejector Force | tf | 1.3 | |||
| Others | System Pressure | kgf/cm2 | 140 | ||
| Oil Resservoir Capacity | L | 75 | |||
| Electric Power | KW(HP) | 4.2 | |||
| Heater Power | KW | 2 | |||
| Machine Dimensions | L*W | mm | 1150*750 | ||
| H | mm | 2150 | |||
| Machine Weight | kg | 650 | |||
Packaging & Shipping
Model YT-15T-C,we have in stock,if we make agreement,we can ship it at any time
Our Services
1. Provide free guidance of before you start
2. 1 year warranty
3. Free r emote guidance by video chat when you have problem during use the machine
