Quick Details
-
Brand Name:
-
N/M
-
Material:
-
Brass/ABS/PP/Iron
-
Accuracy:
-
Class B
-
Temperature:
-
0-50℃
-
Color:
-
Blue
-
Standard:
-
ISO 4064
-
Protection class:
-
IP 68
-
Pressure:
-
16 Bar
-
Installation:
-
Horizontal
-
Structure:
-
Mechanical
-
Medium:
-
Water
Quick Details
-
Warranty:
-
6 years
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
N/M
-
Material:
-
Brass/ABS/PP/Iron
-
Accuracy:
-
Class B
-
Temperature:
-
0-50℃
-
Color:
-
Blue
-
Standard:
-
ISO 4064
-
Protection class:
-
IP 68
-
Pressure:
-
16 Bar
-
Installation:
-
Horizontal
-
Structure:
-
Mechanical
-
Medium:
-
Water
Product Description

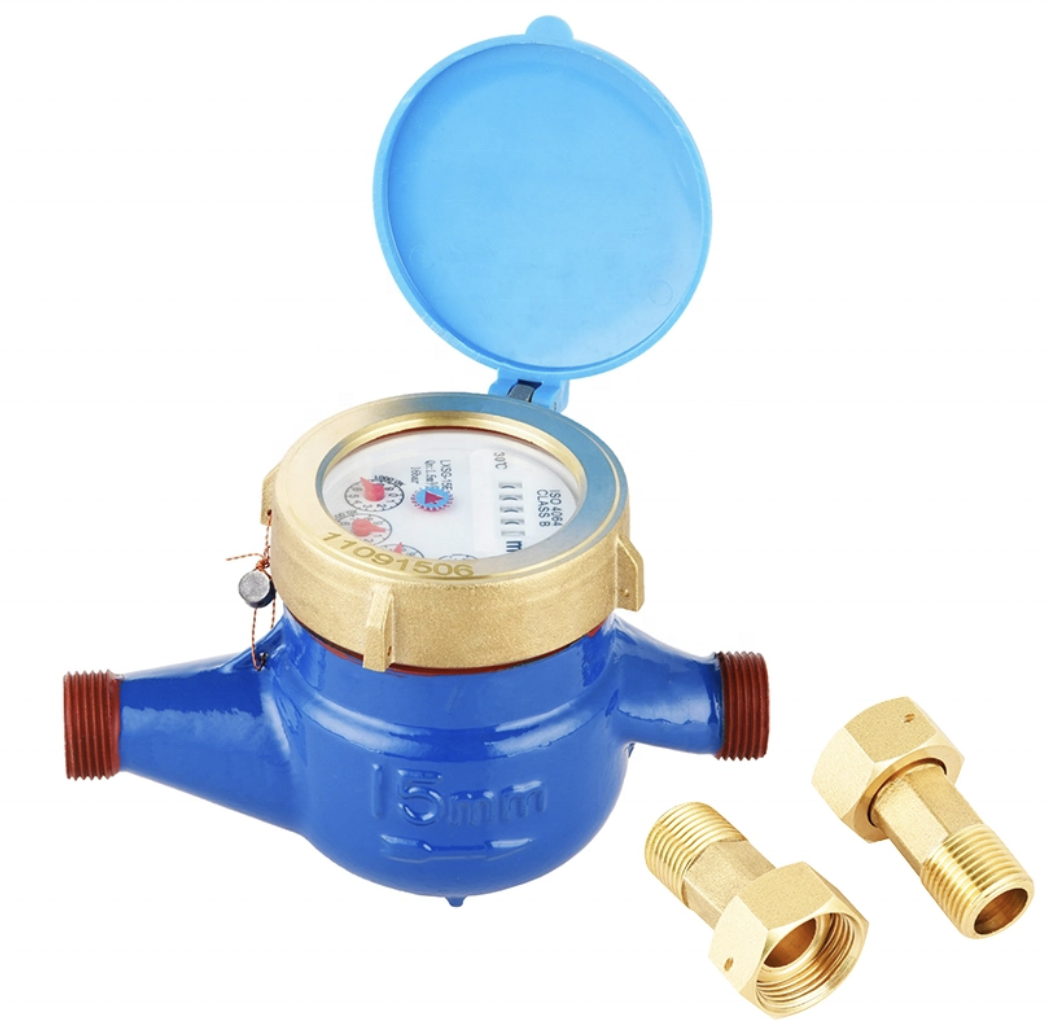

Multi-jet Dry Type Vane Wheel Water Meter
* It is a multi-jet super dry water meter for residential application in sizes15mm-50mm for cold water.
Features
* Magnetic Drive, lower transmission resistance
* Magnetic Shield , for external magnetic field protection
* Sealed dry dial register ensures clear reading
* External regulating device
|
Diameter(mm)
|
Min. Flow
L/H
|
Tran. FLow
L/H
|
Nomi. Flow
M3/H
|
Max. Flow
M3/H
|
Class
|
|
DN15
|
31.25
|
50
|
2.5
|
3.125
|
B
|
|
DN20
|
50
|
80
|
4
|
5
|
B
|
|
DN25
|
78.75
|
126
|
6.3
|
7.875
|
B
|
|
DN32
|
125
|
200
|
10
|
12.5
|
B
|
|
DN40
|
200
|
320
|
16
|
20
|
B
|
|
DN50
|
312.5
|
500
|
25
|
31.25
|
B
|
|
Diameter(mm)
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
Connecting Thread D
|
|
DN15
|
165/190
|
99
|
104
|
G 3/4B
|
|
DN20
|
190
|
99
|
106
|
G 1B
|
|
DN25
|
225/260
|
103
|
114
|
G 1-1/4B
|
|
DN32
|
230/260
|
104
|
117
|
G 1-1/2B
|
|
DN40
|
245/300
|
124
|
147
|
G 2B
|
|
DN50
|
280/300
|
125
|
172
|
G 2-1/2B
|
Our Service
1.Custom goods productions
Our moq usually is 100pcs .We can design according to your drawing or picture .Any time when you received the goods,you will find them very good quality in the target market.
OEM is welcomed ,as well as the sample order
2.Sourcing service
As we are specialised in ultrasonic meters business,if you have any related products to the ultrasonic meter, like ultrasonic water meter,ultrasonic heat meter,ultrasonic flow meter etc. so we can help you out
